MED7020RF0 05 – DOOR PARTS – Aparts

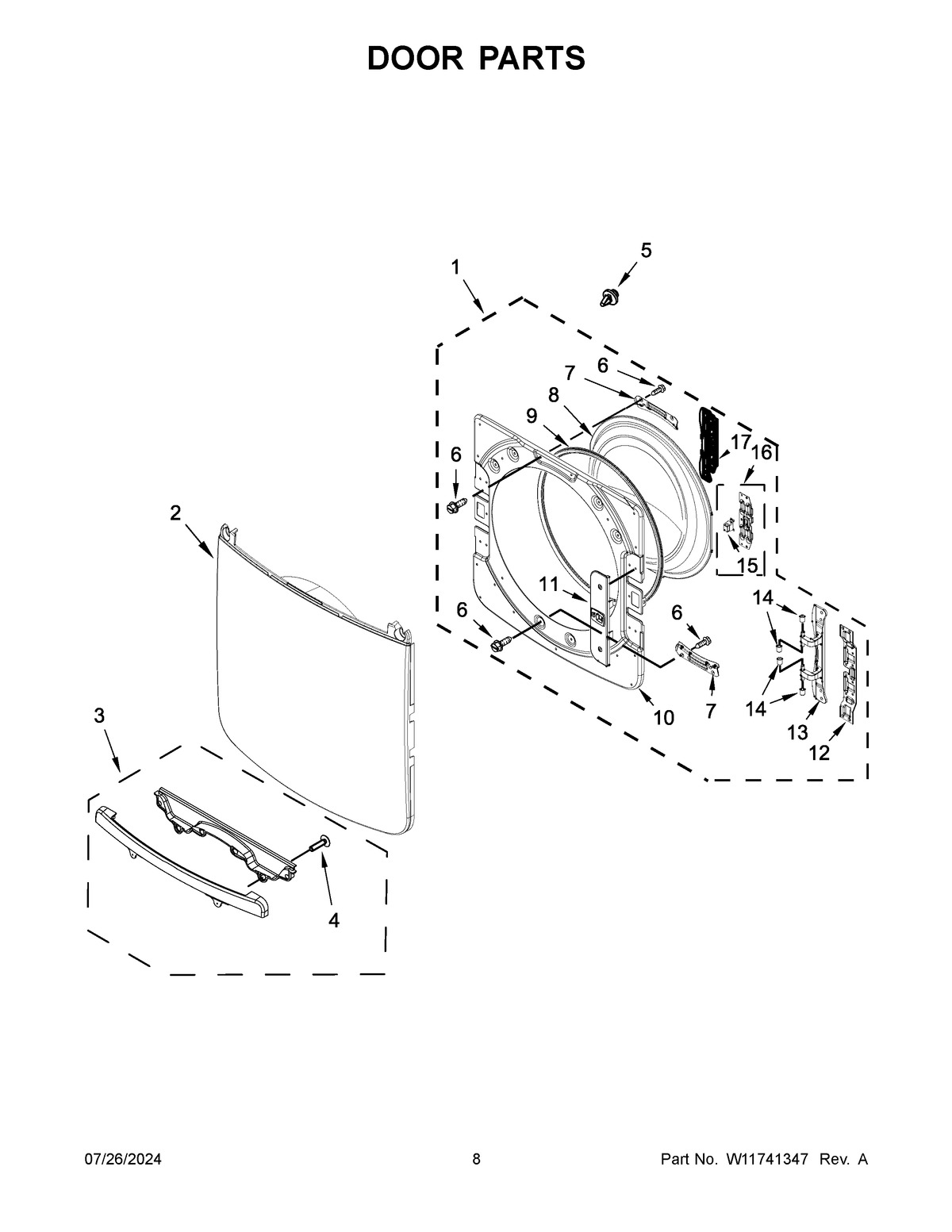

MED7020RF0 05 – DOOR PARTS

Products

Position	Product
1	W11465962 Whirlpool Door Assembly
2	W11310052 Whirlpool Door
3	W10626039 Whirlpool Handle
4	SCREW
5	W11310051 Whirlpool Bumper
6	SCREW
7	BRACKET, GLASS
8	W11310036 Whirlpool Door Glass
9	W11310035 Whirlpool Seal
10	W11491634 Whirlpool Door
11	W11310050 Whirlpool Cover Assembly
12	WPW10208419 Whirlpool Plate
13	HINGE
14	WPW10208398 Whirlpool Hinge Pin Cap
15	W11240283 Whirlpool Catch Assembly
16	WPW10208254 Whirlpool Catch
17	HINGE
