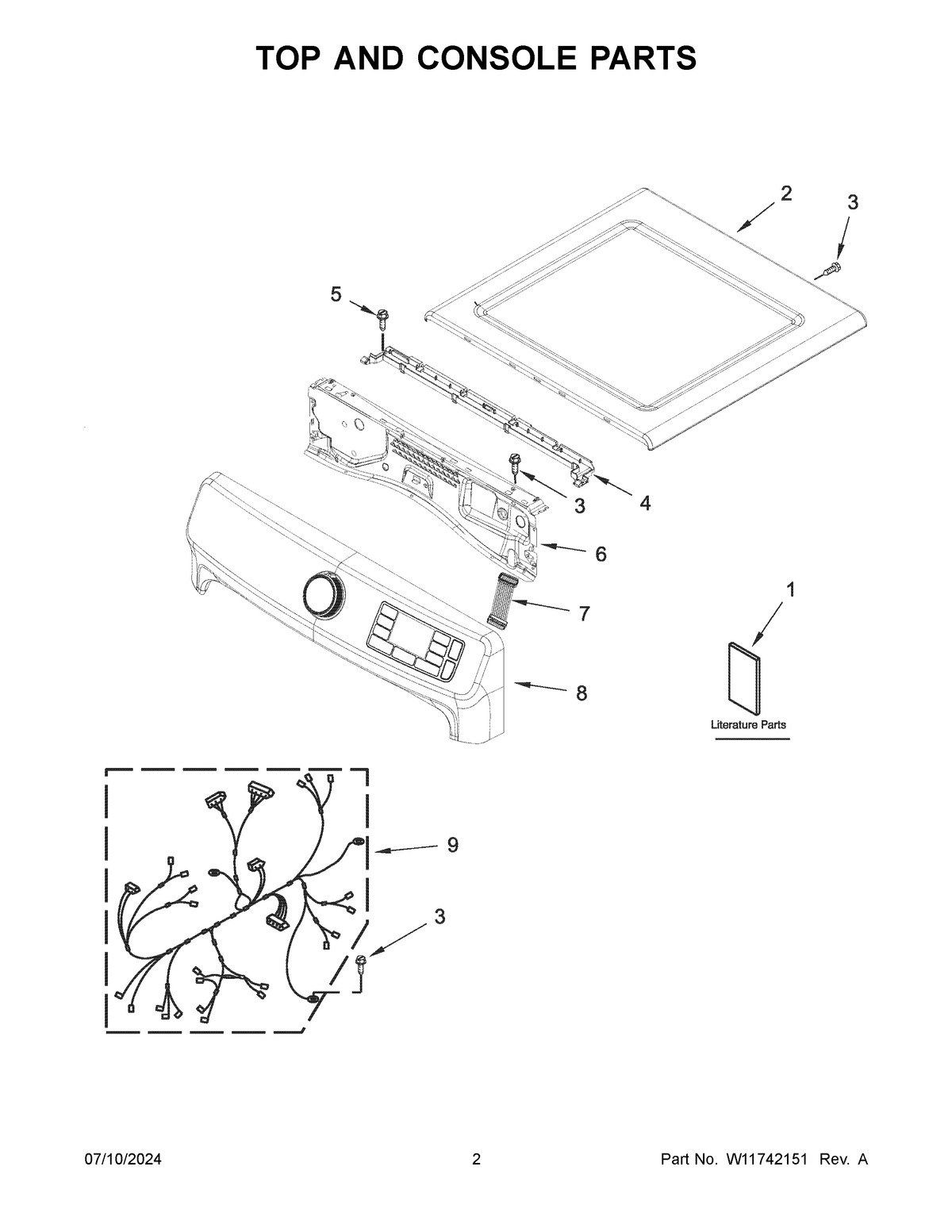

MED7020RU0 02 – TOP AND CONSOLE PARTS

MED7020RU0 02 – TOP AND CONSOLE PARTS

Written by

in

MED7020RU0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1BQUICK START GUIDE
1ATECH SHEET
2W11315730 Whirlpool Top
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7JUMPER, HARNESS HMI (BOARD TO BOARD)
9W11690849 Whirlpool Wire Harness
