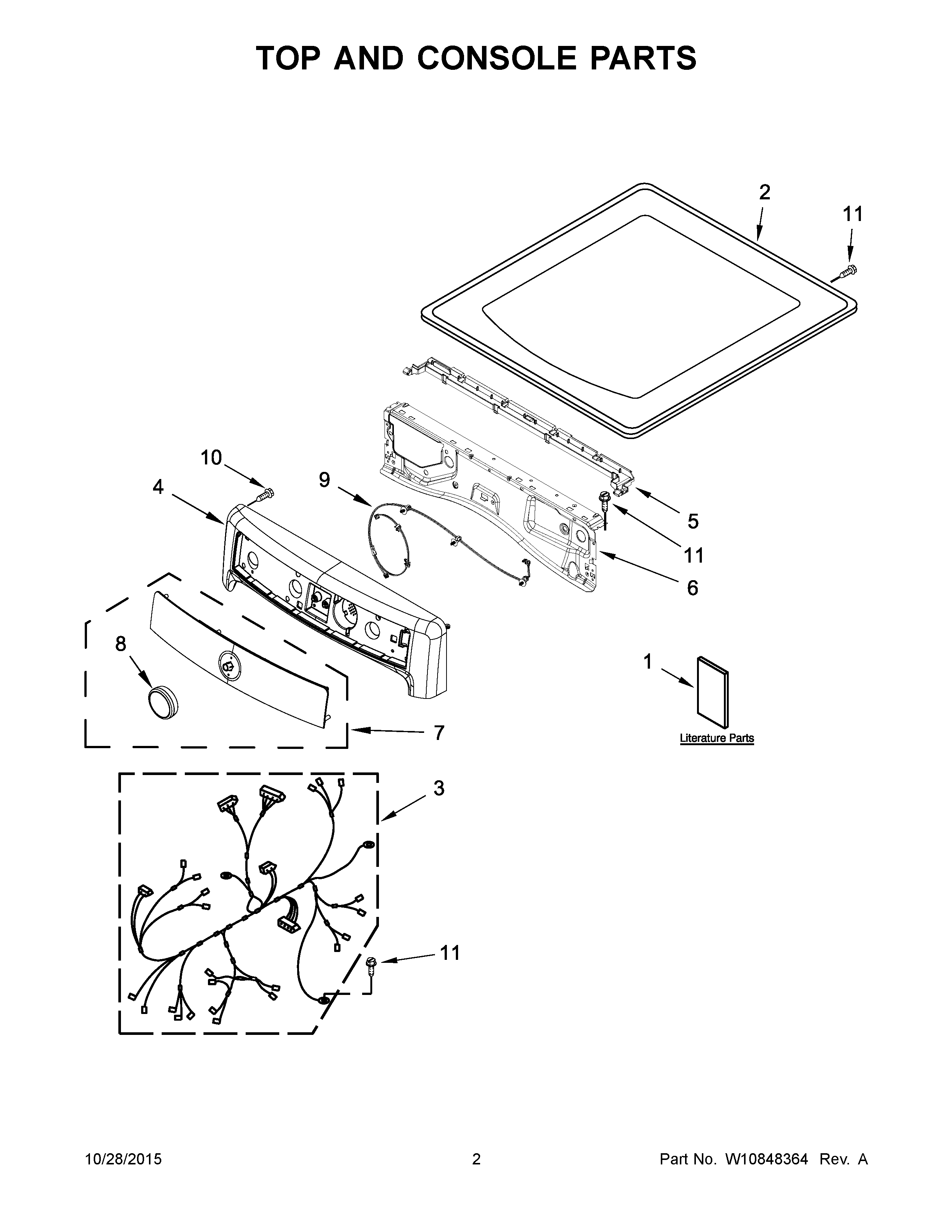

MED7100DC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10676165
1CWIRING DIAGRAM
1DQUICK START GUIDE
1BTECH SHEET
1AUSE AND CARE GUIDE
2ATOP (CHROME SHADOW)
2MAY W10208383
3HARNESS, MAIN
4ACONSOLE ASSEMBLY (CHROME SHADOW)
4MAY W10391555
5WATER CHANNEL
6MAY W10208198
7MAY W10800517
7AMAY W10800518
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11Screw
