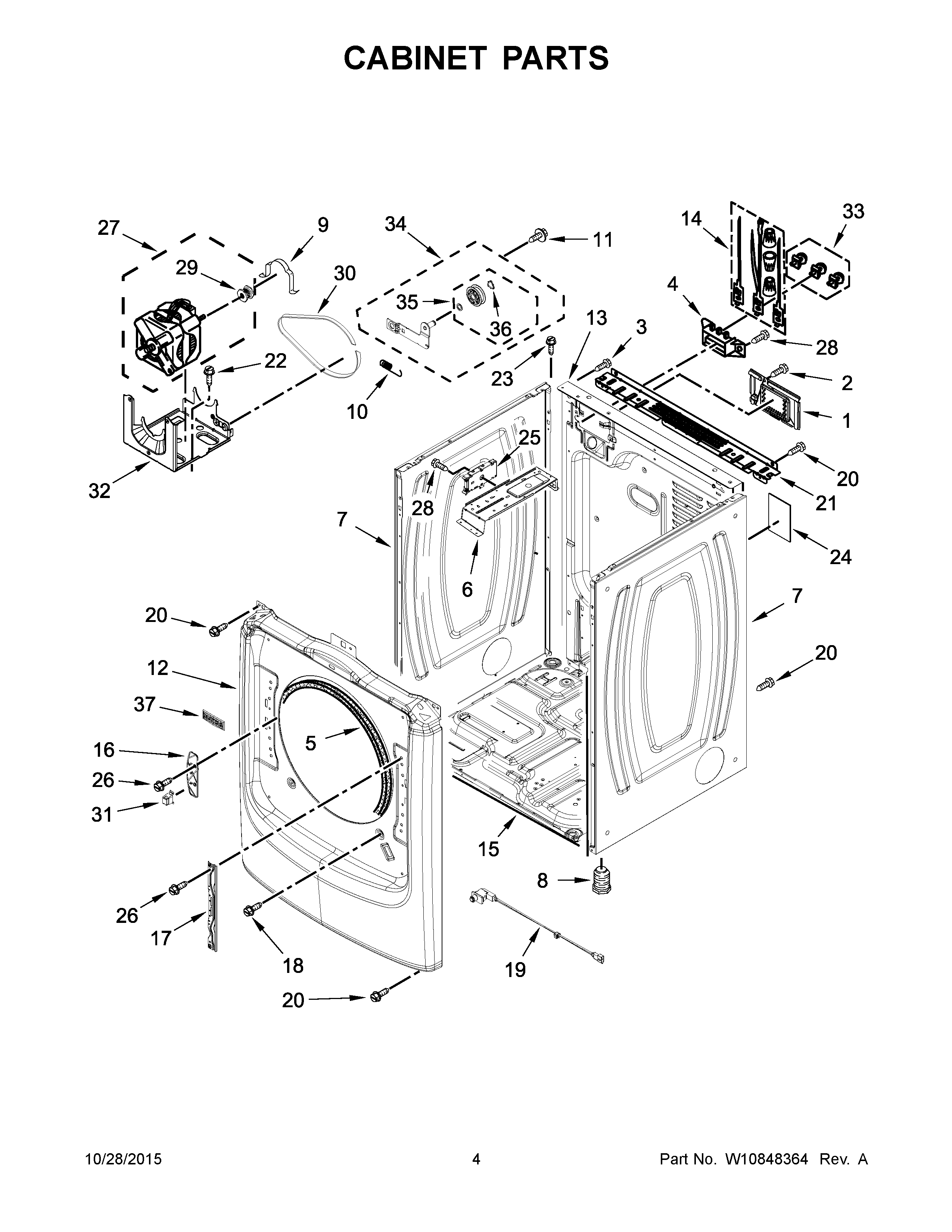

MED7100DW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	KIT, 4-WAY VENT
1	MAY W10316167
2	Screw
3	MAY 8533974
4	MAY 3397659
5	MAY 3387242
6	MAY W10259611
7A	PANEL, SIDE (CHROME SHADOW)
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PANEL, FRONT (WHITE)
12A	PANEL, FRONT (CHROME SHADOW)
13	MAY W10487430
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8565046
16	MAY W10208250
17	MAY W10315109
18	SCREW
19	DOOR SWITCH, SNAP IN
20	SCREW
21	MAY W10208382
22	SCREW
23	SCREW, 10-16 X 1/2
24	MAY W10504381
25	MAY W10804446
26	MAY W10288126
27	MAY W10806760
28	Screw
29	Pulley, Motor
30	MAY W10112954
31	MAY W10208401
32	MAY W10242878
33	MAY 279393
34	ASSEMBLY, IDLER
35	MAY W10468057
36	WASHER, TRI RING
37	BADGE, MAYTAG
