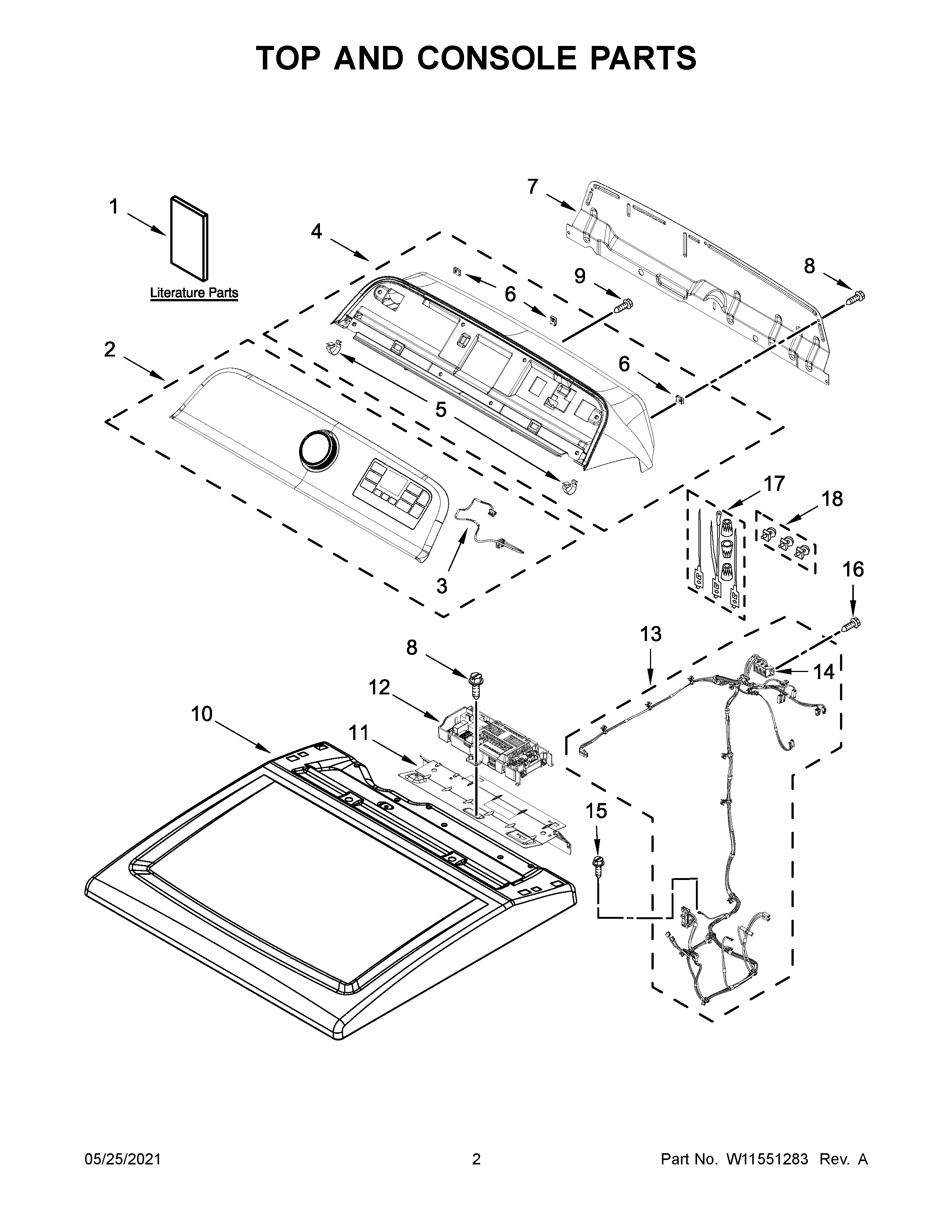

MED7230HC2 02 – TOP AND CONSOLE PARTS

MED7230HC2 02 – TOP AND CONSOLE PARTS

Written by

in

MED7230HC2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
2W11413567 Whirlpool Control Panel
3W11721377 Whirlpool Wire Harness
4W11406678 Whirlpool Console
4AW11406679 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7W11433112 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP9740848 Whirlpool Dishwasher Screw
10TOP (WHITE)
10AW11641122 Whirlpool Top
11W11431865 Whirlpool Bracket
12W11618917-includeCORE Whirlpool W11618917 Washer Electronic Control Board
13W11700548 Whirlpool Wire Harness
14WP3397659 Whirlpool Terminal Block
15W11693756 Whirlpool Screw Assembly
16WP308685 Whirlpool Microwave Screw
17279318 Whirlpool Terminal
18279393 Whirlpool Terminal Block Screw and Nut Kit
