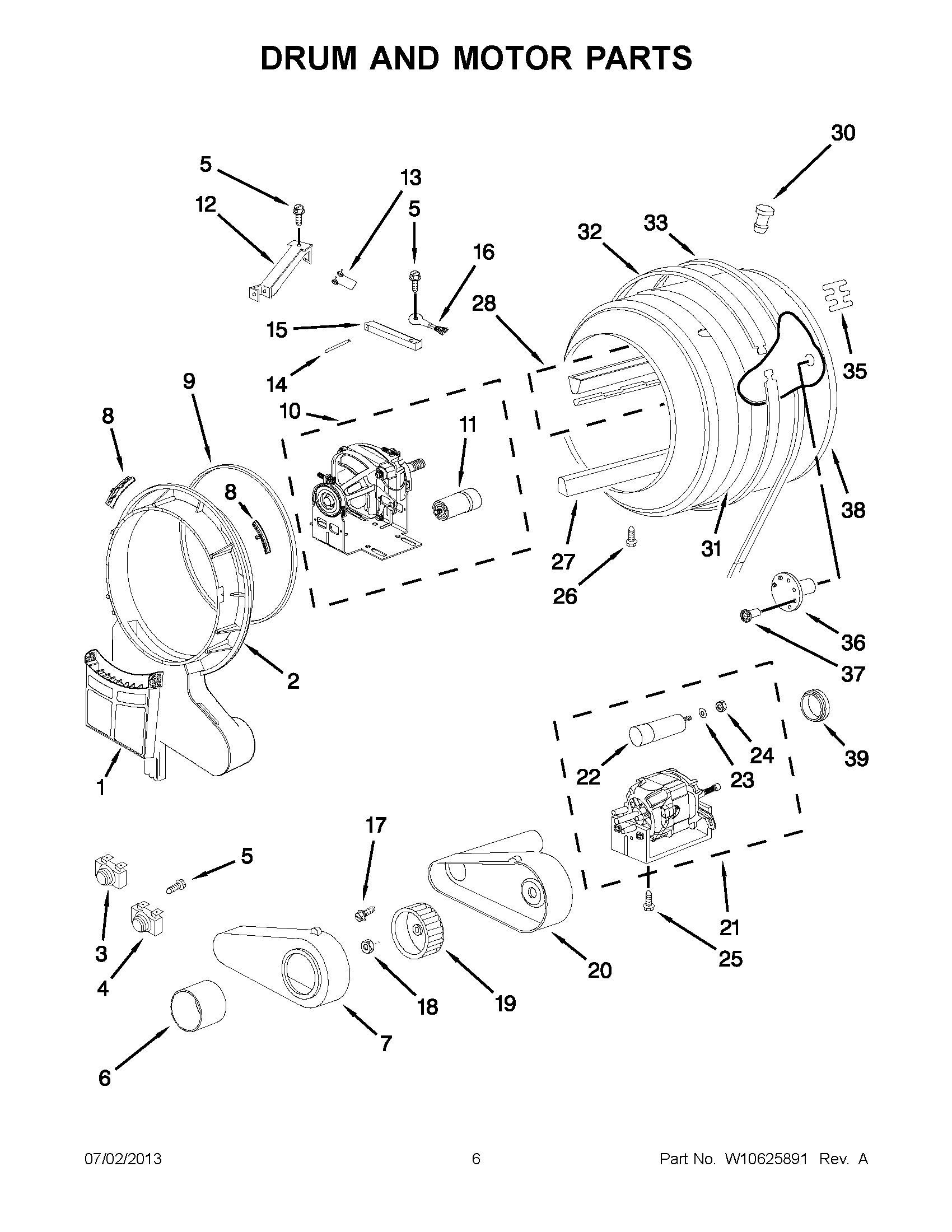

MED7500YW1 03 – DRUM AND MOTOR PARTS

Products

PositionProduct
1MAY 8182489
2MAY 8182485
3THERMOSTAT, 203F (95C)
4THERMOSTAT, OPERATING 122F
5MAY 8182323
6MAY 8182478
7MAY 8182631
8MAY 8182492
9MAY 8182692
10DRIVE MOTOR
12MAY 8182499
13MAY 8182494
14MAY 8182501
15MAY 8182498
16MAY 8182500
17MAY 8183100
18NUT, BLOWER WHEEL
19BLOWER WHEEL
20MAY 8183099
21MAY 8182472
22MAY 8182473
23MAY 8182580
24MAY 8182579
25MAY 8182486
26MAY 8182488
27BAFFLE (NO STEEL STRIP)
28BAFFLE (WITH STEEL STRIP)
30MAY 8183103
31MAY 8182497
32MAY 8182496
33MAY 8182481
35MAY 8182493
37LINER (NOT A SERVICEABLE PART)
38DRUM ASSEMBLY
39MAY 8182468
