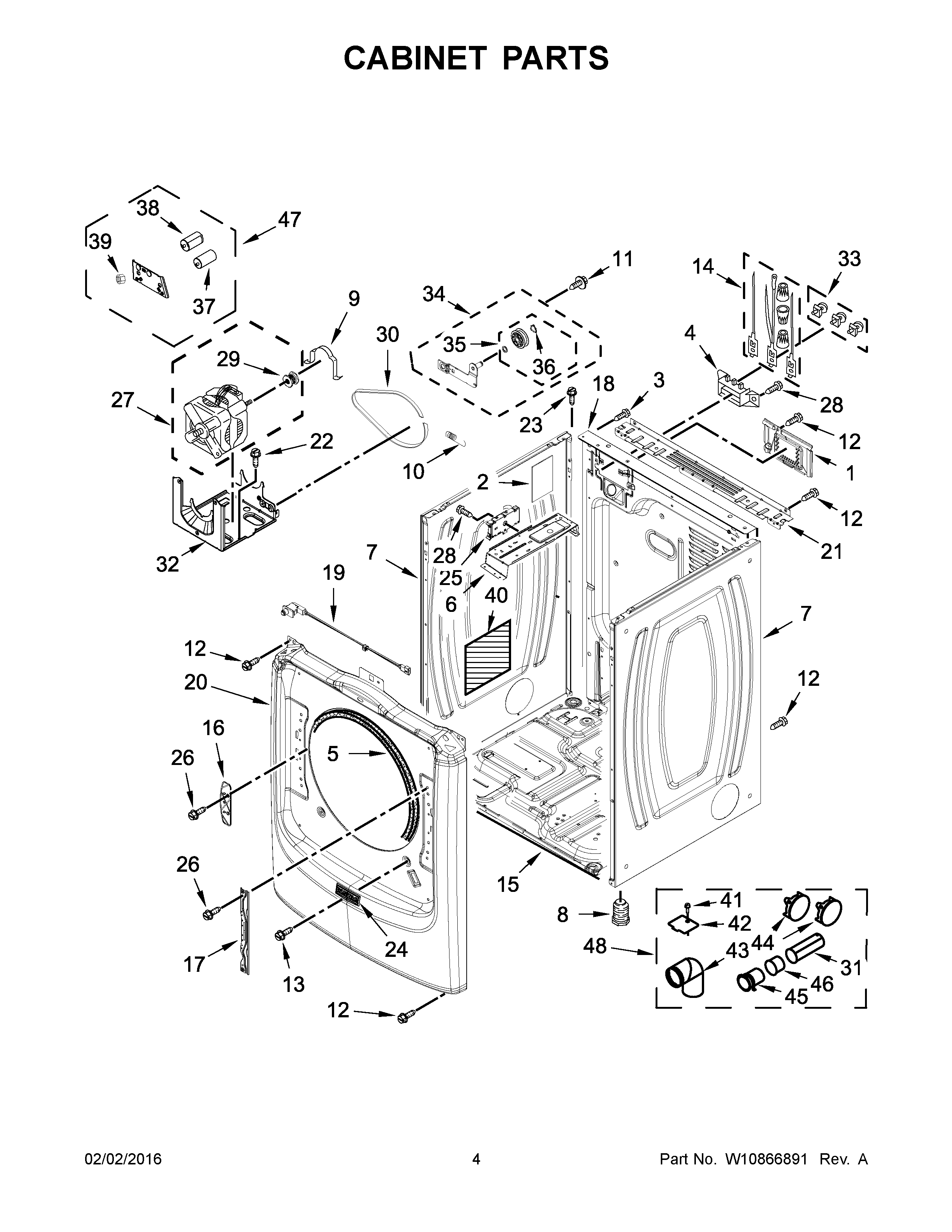

MED8150EW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	MAY 8533974
4	MAY 3397659
5	MAY 3387242
6	MAY W10259611
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	Screw
13	SCREW
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8565046
16	MAY W10208250
17	MAY W10315109
18	MAY W10487430
19	DOOR SWITCH, SNAP IN
20	PANEL, FRONT (WHITE)
21	MAY W10208382
22	SCREW
23	SCREW, 10-16 X 1/2
24	BADGE, MAYTAG
25	MAY W10804446
26	MAY W10288126
27	MAY W10577393
28	Screw
29	Pulley, Motor
30	MAY W10112954
31	PIPE, EXHAUST (LONG)
32	MAY W10242878
33	MAY 279393
34	ASSEMBLY, IDLER
35	MAY W10468057
36	WASHER, TRI RING
37	CAPACITOR, MOTOR RUN
38	CAPACITOR, MOTOR START
39	NUT
40	MAY W10123956
41	MAY 488729
42	MAY W10354249
43	MAY W10416072
44	PLUG, MULTIVENT (MIDNIGHT GREY)
45	MAY W10587890
46	PIPE, EXHAUST (SHORT)
47	BRACKET ASSEMBLY
48	KIT, 4-WAY VENT
