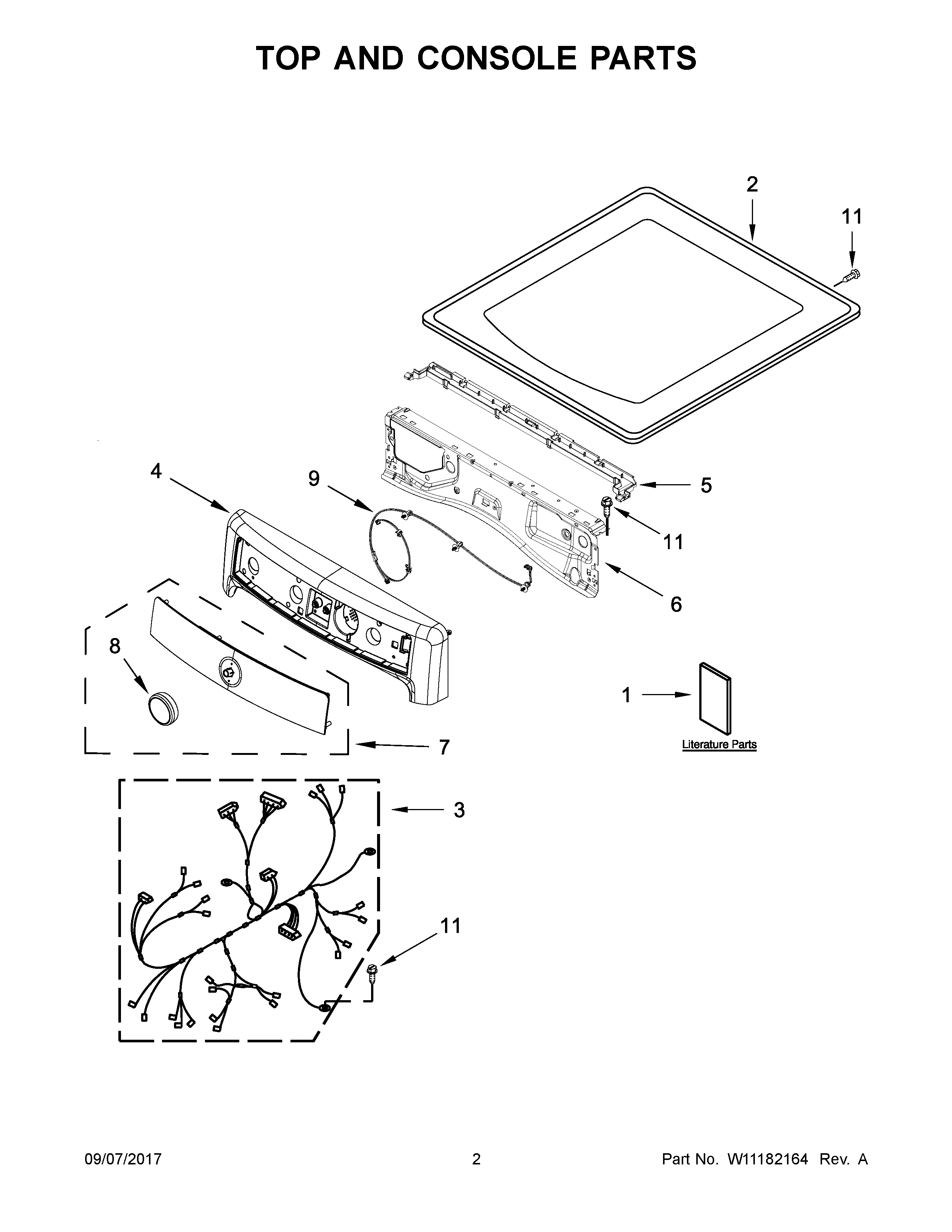

MED8200FC1 02 – TOP AND CONSOLE PARTS

MED8200FC1 02 – TOP AND CONSOLE PARTS

Written by

in

MED8200FC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1CWIRING DIAGRAM
1BINSTALLATION INSTRUCTIONS
1DQUICK START GUIDE
1ATECH SHEET
2MAY W10208383
2ATOP (CHROME SHADOW)
3HARNESS, MAIN
4ACONSOLE ASSEMBLY (CHROME SHADOW)
4MAY W10391555
5CHANNEL, WATER
6MAY W10208198
7AASSEMBLY, IML (CHROME SHADOW)
7ASSEMBLY, IML (WHITE)
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11SCREW
