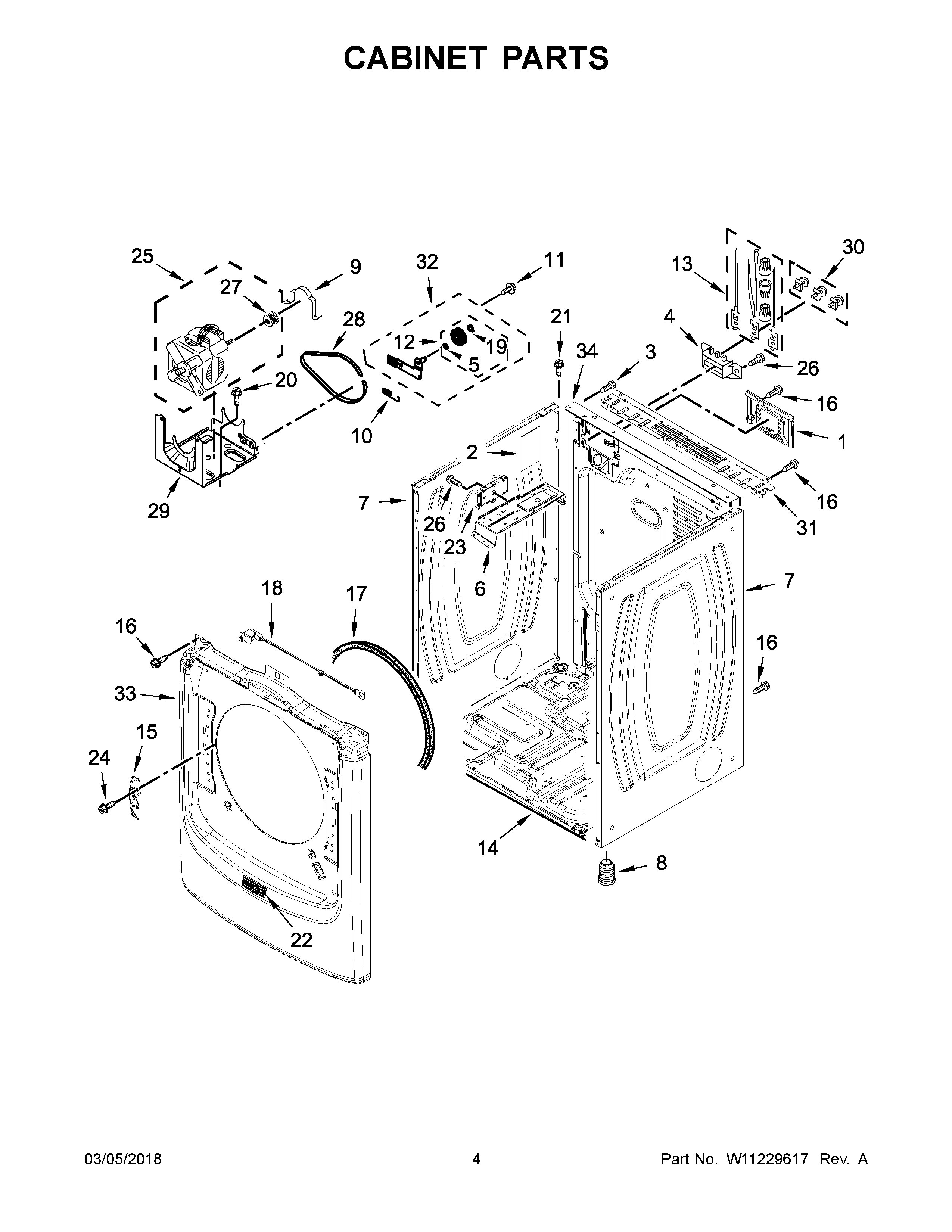

MED8200FC2 03 – CABINET PARTSadmin2025-04-26T09:21:56+00:00MED8200FC2 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | KIT, 4-WAY VENT |
| NI | MAY 279810 |
| 1 | MAY W10316167 |
| 2 | MAY W10504381 |
| 3 | SCREW |
| 4 | MAY 3397659 |
| 5 | MAY W10121334 |
| 6 | MAY W10259611 |
| 7A | PANEL, SIDE (CHROME SHADOW) |
| 7 | MAY W10468495 |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | MAY W10468057 |
| 13 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 14 | MAY 8565046 |
| 15 | MAY W10208250 |
| 16 | SCREW |
| 17 | MAY 3387242 |
| 18 | MAY W10569114 |
| 19 | WASHER, TRI RING |
| 20 | SCREW |
| 21 | SCREW, 10-16 X 1/2 |
| 22 | BADGE, MAYTAG |
| 23 | CONTROL BOARD |
| 24 | MAY W10288126 |
| 25 | ASSEMBLY, MOTOR |
| 26 | Screw |
| 27 | Pulley, Motor |
| 28 | MAY W10112954 |
| 29 | MAY W10242878 |
| 30 | MAY 279393 |
| 31 | MAY W10208382 |
| 32 | ASSEMBLY, IDLER |
| 33 | PANEL, FRONT (WHITE) |
| 33A | PANEL, FRONT (CHROME SHADOW) |
| 34 | MAY W10487430 |
