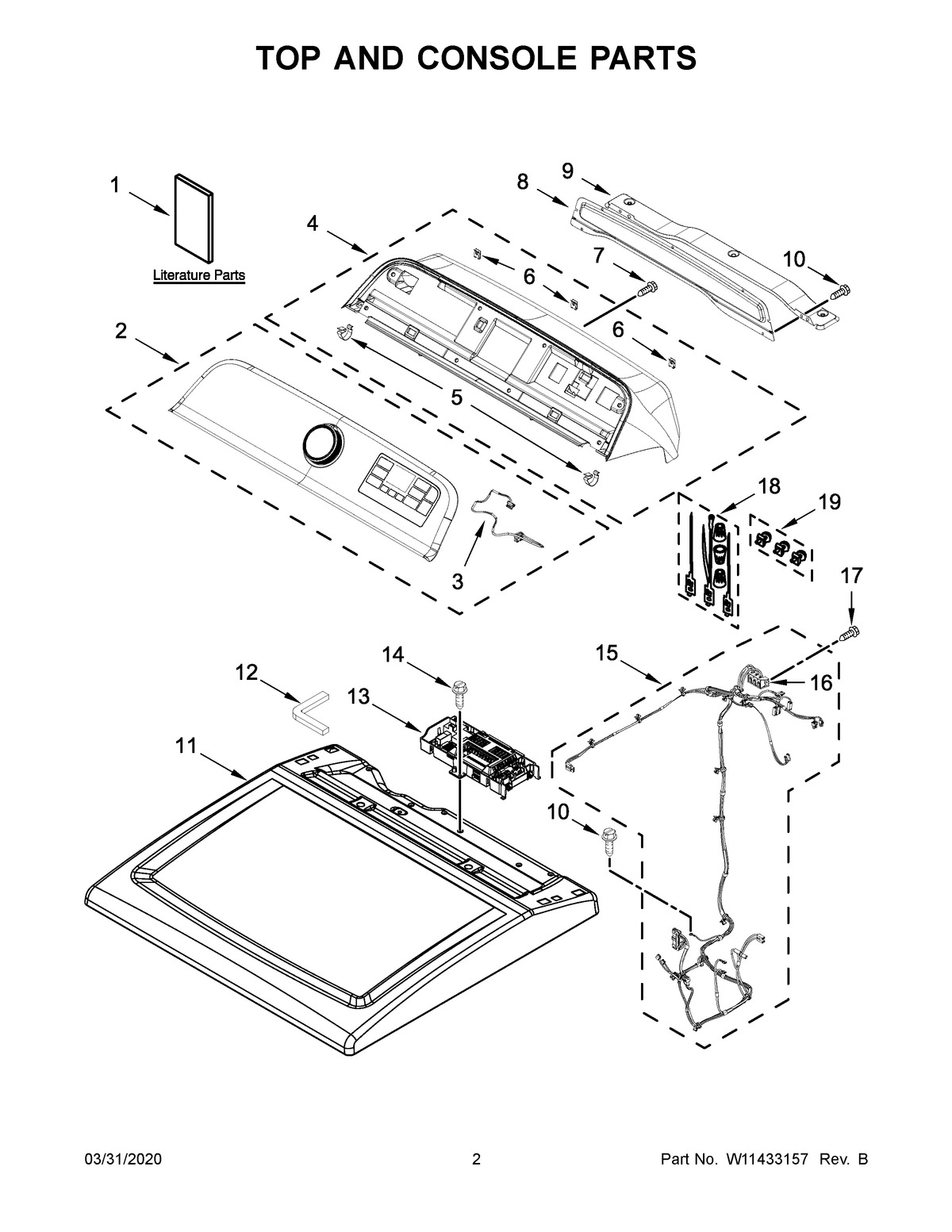

MED8230HC0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	QUICK START GUIDE
1A	MAY W11175222
1	INSTALLATION INSTRUCTIONS
2	ASSEMBLY, CONSOLE FASCIA (COMPLETE)
3	HARNESS, USER INTERFACE (HMI)
4	CONSOLE (CHROME SHADOW)
5	MAY 8312709
6	NUT, "U"
7	SCREW
8	MAY W10622402
9	BULKHEAD BRACKET, REAR PANEL
10	MAY W10567155
11	MAY W10681117
12	MAY W10185554
13	CONTROL, ELECTRONIC (ACU)
14	SCREW
15	MAIN HARNESS
16	MAY 3397659
17	SCREW, 10-16 X 1/2
18	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
19	MAY 279393
