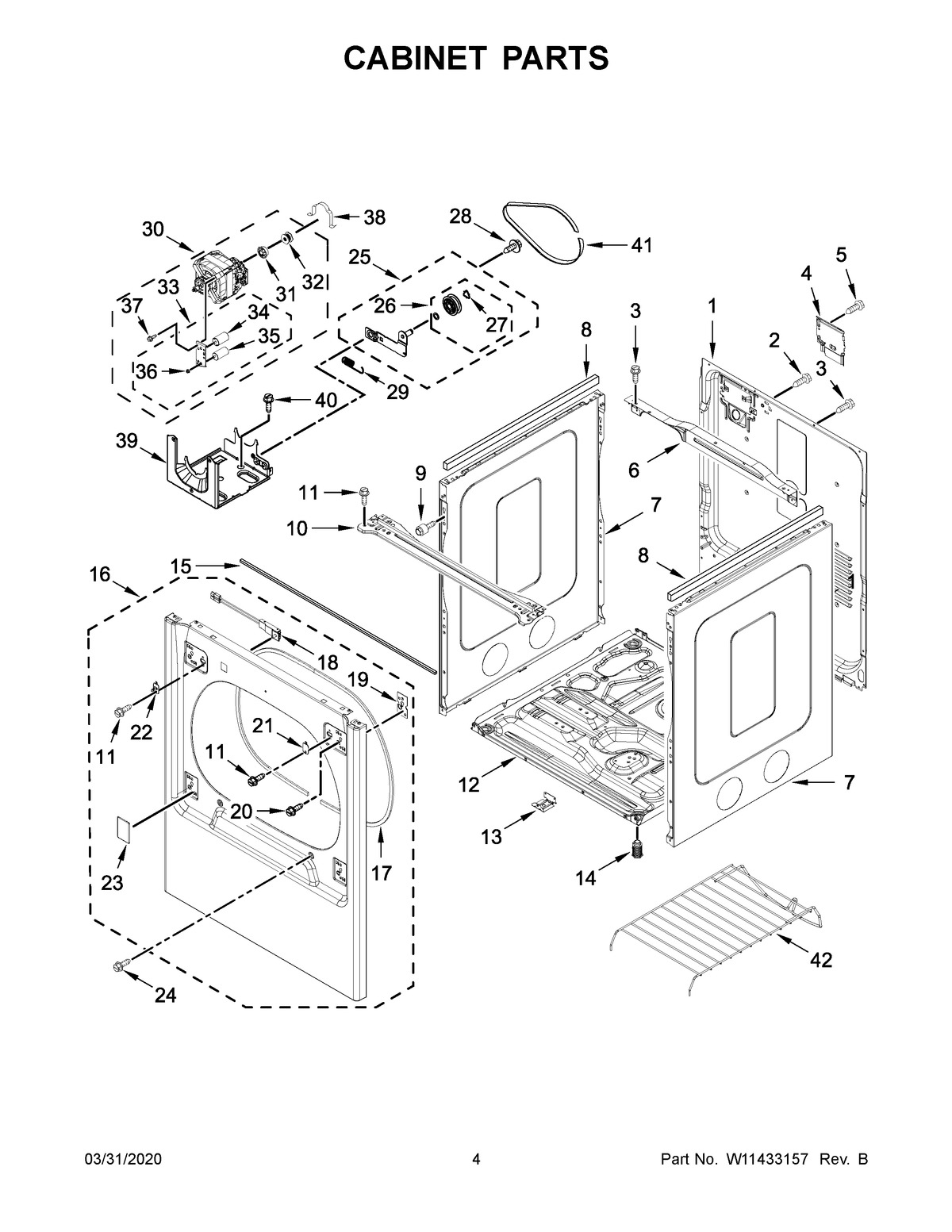

MED8230HC0 03 – CABINET PARTS

Products

Position	Product
1	PANEL, REAR
2	SCREW
3	SCREW
4	MAY W10316167
5	SCREW
6	MAY W10622391
7	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
8	MAY W10316616
9	MAY W10636208
10	MAY W10722502
11	SCREW
12	MAY W10613683
13	MAY W10632347
14	MAY 3392100
15	SEAL, FOAM
16	PANEL, FRONT (CHROME SHADOW)
17	MAY 3387242
18	MAY W10459026
19	MAY W10596959
20	MAY 920119
21	MAY W10111888
22	MAY W10778071
23	PLUG, HINGE (CHROME SHADOW)
24	SCREW
25	ASSEMBLY, IDLER
26	MAY W10468057
27	WASHER, TRI RING
28	SCREW
29	MAY W10446781
30	MOTOR ASSEMBLY
31	PULLEY, MOTOR
32	MAY 3393657
33	BRACKET ASSEMBLY
34	CAPACITOR, MOTOR RUN
35	CAPACITOR, MOTOR START
36	NUT
37	SCREW
38	CLAMP, MOTOR MOUNT
39	MAY W10578053
40	SCREW
41	BELT, DRIVE
42	MAY W10693998
