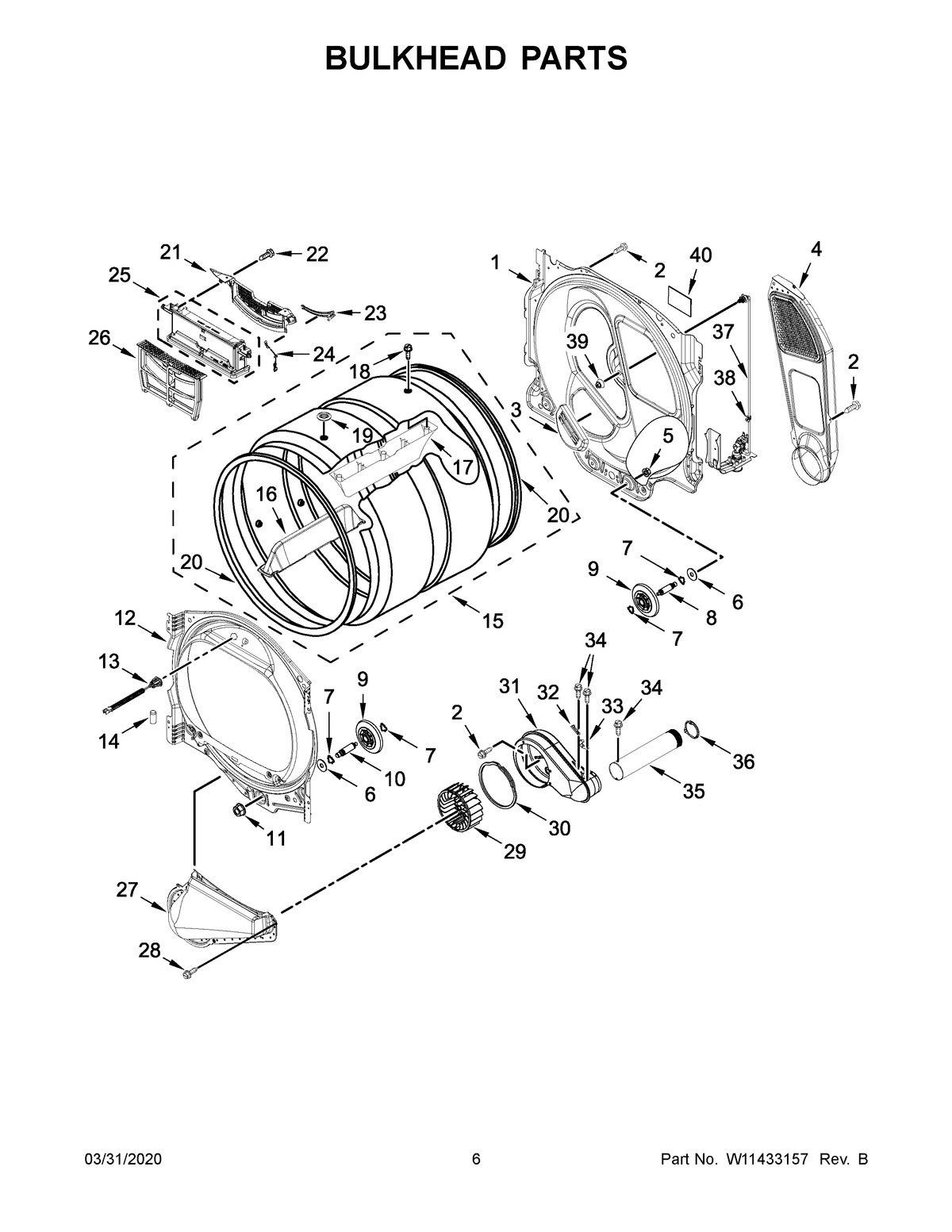

MED8230HC0 04 – BULKHEAD PARTS

Products

Position	Product
NI	ACCESSORY PARTS, KIT, DRYER – STEAM HOSE (INCLUDES (1) 2' HOSE, (1) 5' HOSE, (1) Y ADAPTER, (2) EXPORT (BRITISH) ADAPTER
NI	ACCESSORY PARTS, KIT, DRYER – STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
NI	ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER)
NI	ACCESSORY PARTS, KIT, DRYER – PREMIUM STEAM HOSE (INCLUDES (1) 2' HOSE AND (1) 5' HOSE, (1) Y ADAPTER AND (5) RUBBER WAS
1	MAY W10712886
2	SCREW
3	SENSOR ASSEMBLY, QUAD BULKHEAD
4	DUCT, INLET ASSEMBLY
5	NUT, HEX (LEFT HAND THREAD)
6	WASHER
7	WASHER, TRI RING
8	SHAFT, DRUM ROLLER – LEFT HAND THREAD
9	ROLLER, SUPPORT
10	SHAFT, DRUM ROLLER RIGHT HAND THREAD
11	NUT, HEX
12	MAY W10861007
13	MAY W10629046
14	CAP
15	ASSEMBLY, DRUM
16	MAY W10767074
17	MAY W10767090
18	MAY W10219342
19	CAP, PLUG
20	MAY W10664120
21	MAY W10608806
22	SCREW
23	MAY W10608814
24	MAY W10657328
25	MAY W10608813
26	WHITE
27	MAY W10868982
28	Screw
29	MAY 697772
30	MAY W10868675
31	MAY W10667717
32	FUSE, THERMAL (91C)
33	THERMISTOR
34	Screw
35	MAY W10608817
36	MAY W10344699
37	VALVE HOSE ASSY.
38	MAY 3391018
39	NOZZLE, CAP
40	MAY W10504381
