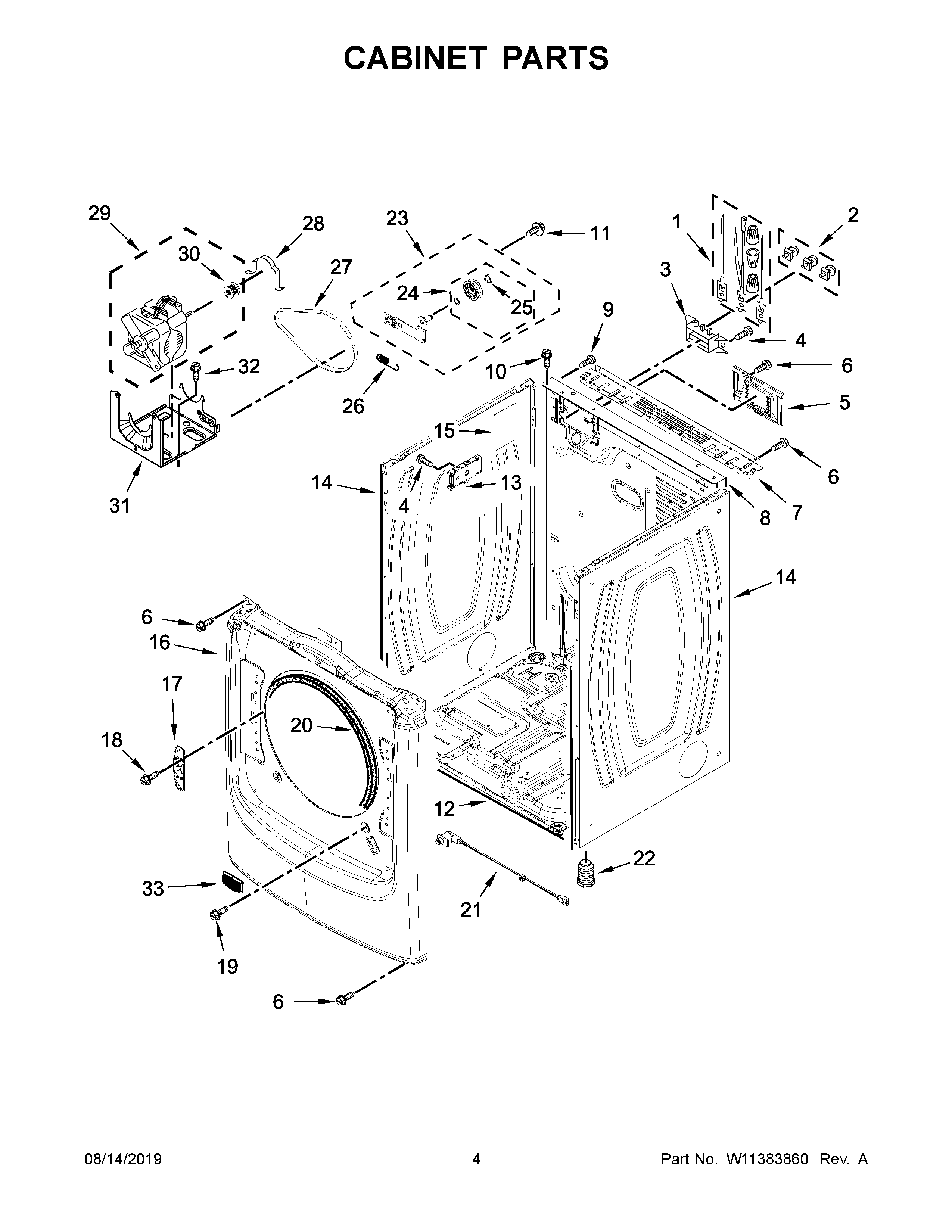

MED8630HC1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	KIT, 4-WAY VENT
1	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
2	MAY 279393
3	MAY 3397659
4	Screw
5	MAY W10316167
6	SCREW
7	MAY W10208382
8	MAY W10487430
9	SCREW
10	SCREW, 10-16 X 1/2
11	SCREW
12	MAY 8565046
13	MAY W11382260
14A	MAY W11177570
14	MAY W11177568
15	MAY W10504381
16A	PANEL, FRONT (CHROME SHADOW)
16	PANEL, FRONT (WHITE)
17	MAY W10208250
18	MAY W10288126
19	SCREW
20	MAY 3387242
21	MAY W10569114
22	MAY 3392100
23	ASSEMBLY, IDLER
24	MAY W10468057
25	WASHER, TRI RING
26	MAY W10446781
27	MAY 3387610
28	CLAMP, MOTOR MOUNT
29	ASSEMBLY, MOTOR
30	Pulley, Motor
31	MAY W10242878
32	SCREW
33	BADGE, MAYTAG
