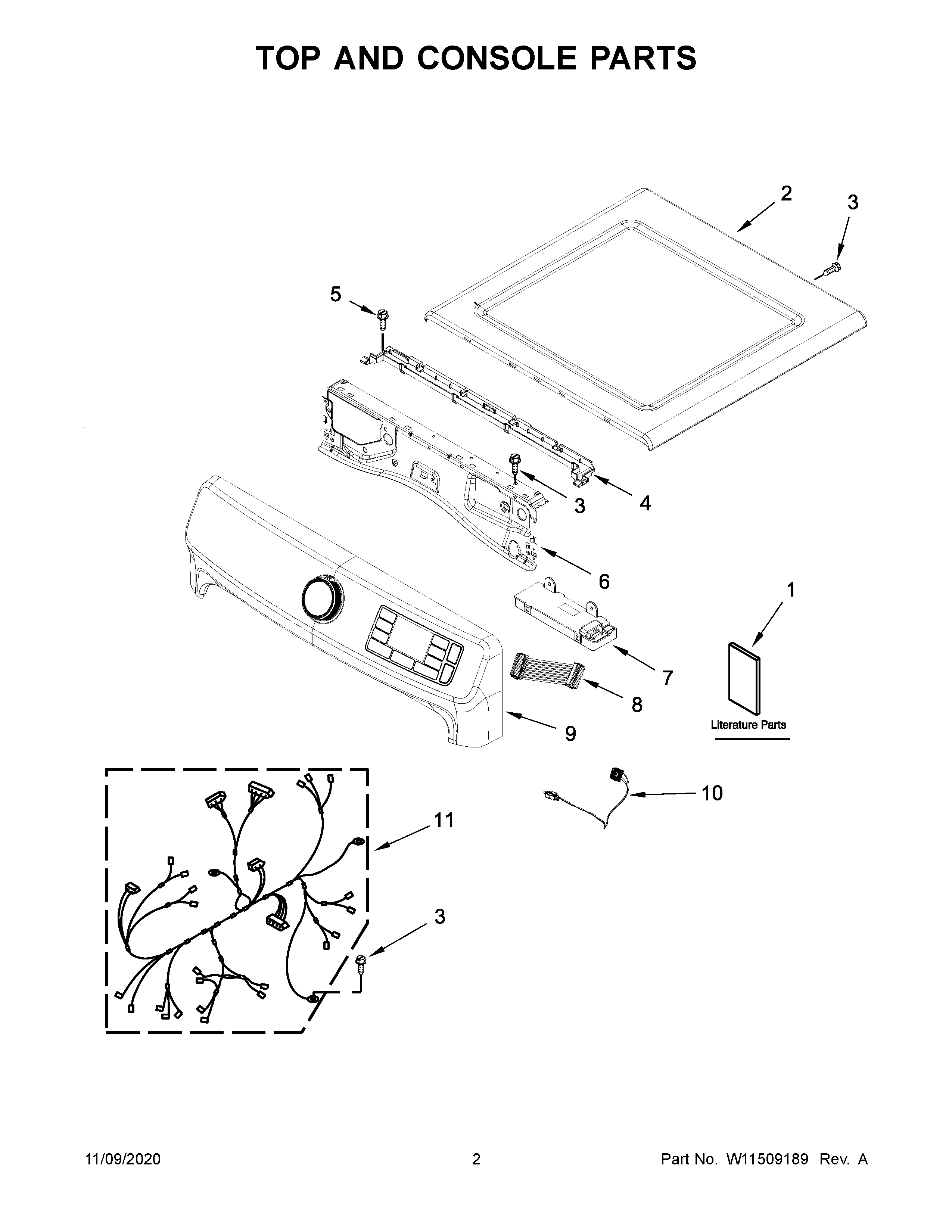

MED8630HC2 02 – TOP AND CONSOLE PARTS

MED8630HC2 02 – TOP AND CONSOLE PARTS

Written by

in

MED8630HC2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1CQUICK START GUIDE
1ATECH SHEET
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11316276 Whirlpool Refrigerator Electronic Control Board
8W11316625 Whirlpool Wire Harness
9AW11367320 Whirlpool Console + Core
9W11367038 Whirlpool Console + Core
10W11315705 Whirlpool Wire Harness
11W11157867 Whirlpool Wire Harness
