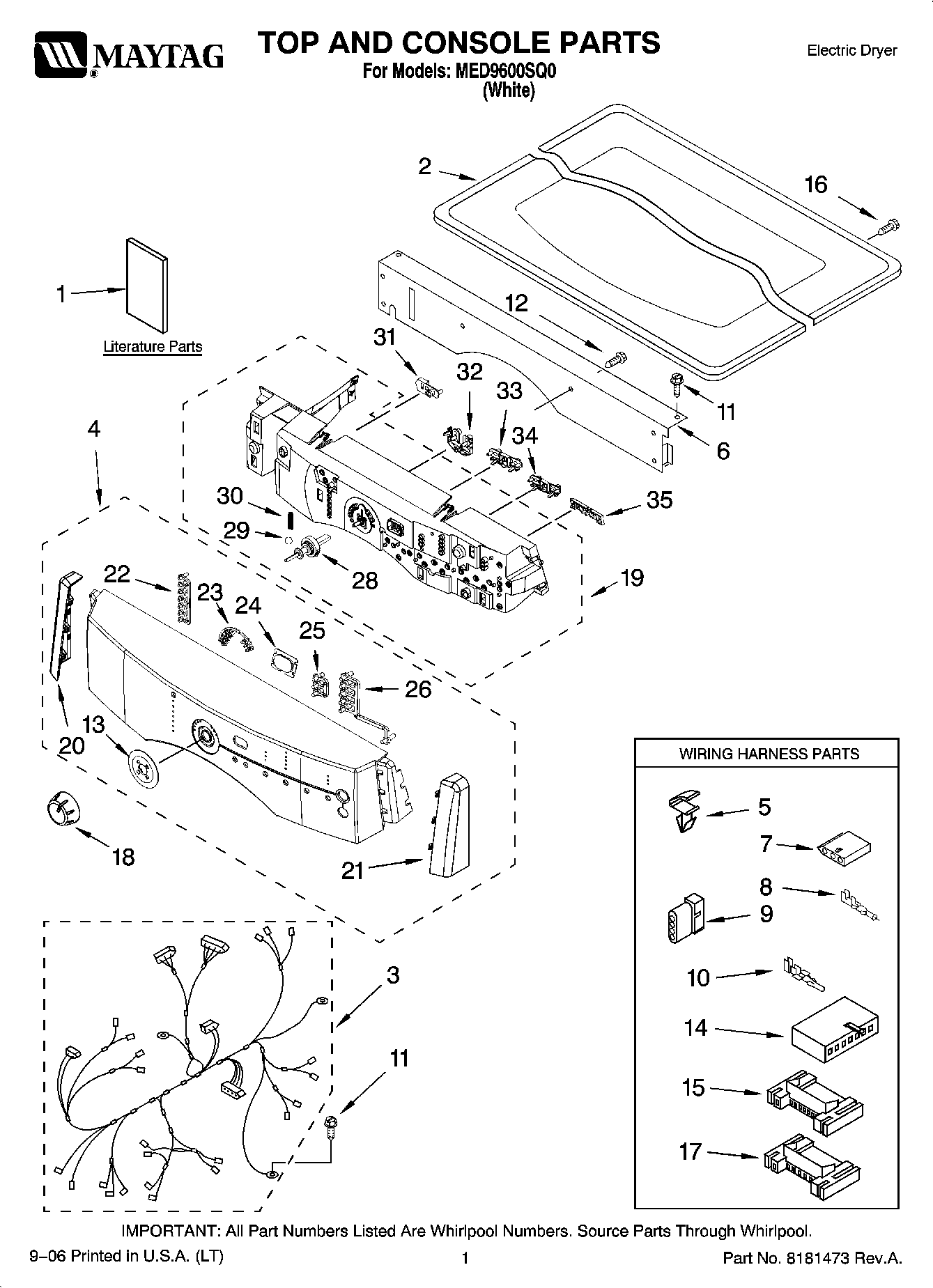

MED9600SQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10099080
1	MAY W10099070
1	MAY 8563816
2	MAY 3980634
3	MAY 8529983
4	MAY W10100388
5	CLIP, HARNESS
6	MAY 8519271
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	MAY 488886
13	MAY 8542690
14	MAY 3936150
15	CONNECTOR (MOTOR)
16	MAY 8281225
17	MAY 2203186
18	Knob, Assembly (Silver)
19	MAY 8558455
20	EndCap(LH) (White)
21	MAY 8562597
22	MAY 8542682
23	MAY 8542683
24	MAY 8542691
25	MAY 8542684
26	MAY 8542685
28	MAY 8542717
29	MAY 8542716
30	MAY 8542715
31	Pushbutton, (Control) (Silver)
32	MAY W10100390
33	MAY 8562604
34	MAY 8562605
35	Pushbutton (Start/Cancel) (Silver)
