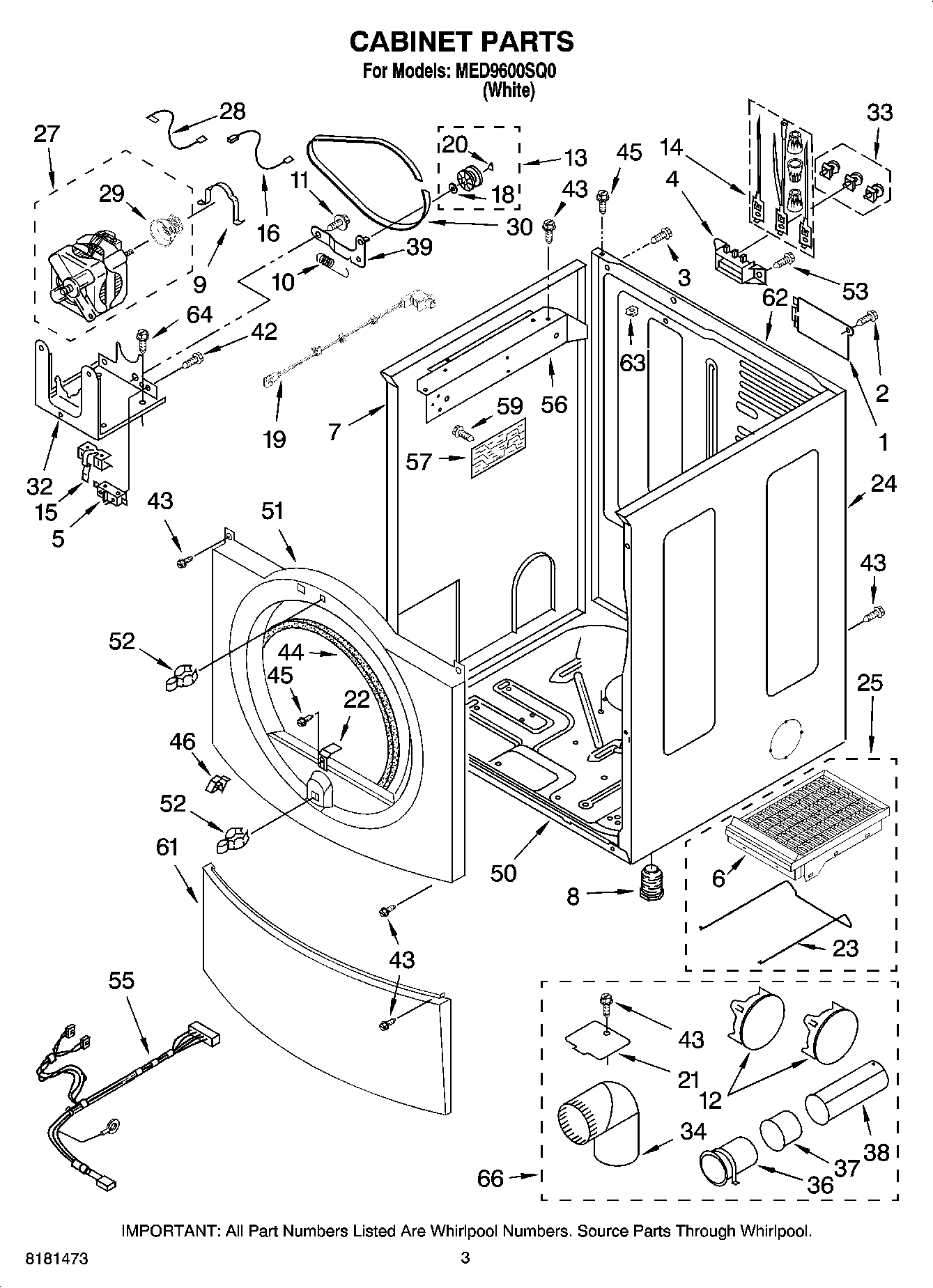

MED9600SQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8576583
2	Screw, 8-18 x 3/8
3	Screw, 8-18 x 5/8 (External Ground)
4	MAY 3397659
5	MAY 3394881
6	MAY 8521959
7	Panel, Side (L.H.) (White)
8	MAY 279810
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 3388309
12	MAY 697750
12	MAY 8557570
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8066120
16	MAY 3394081
18	MAY 233520
19	MAY 8574875
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
23	MAY 8521961
24	MAY 8548450
25	MAY 8521957
27	Motor Assembly 60 HZ.
28	Wire, Jumper (Broken Belt Switch)
29	Pulley 60 HZ.
30	MAY 3387610
32	MAY 3387118
33	MAY 279393
34	MAY 49026
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY 8519459
50	MAY 8519207
51	MAY 8565907
52	MAY 696144
53	MAY 359625
55	MAY 8299925
56	MAY 8519273
57	MAY 8546219
59	MAY 3400826
61	Toe, Panel (White)
62	MAY 8519219
63	Nut, Push-In
64	SCREW
66	MAY 279818
66	Dryer Exhaust Kit (For Side & Bottom Venting) (Meteorite)
66	MAY 279820
