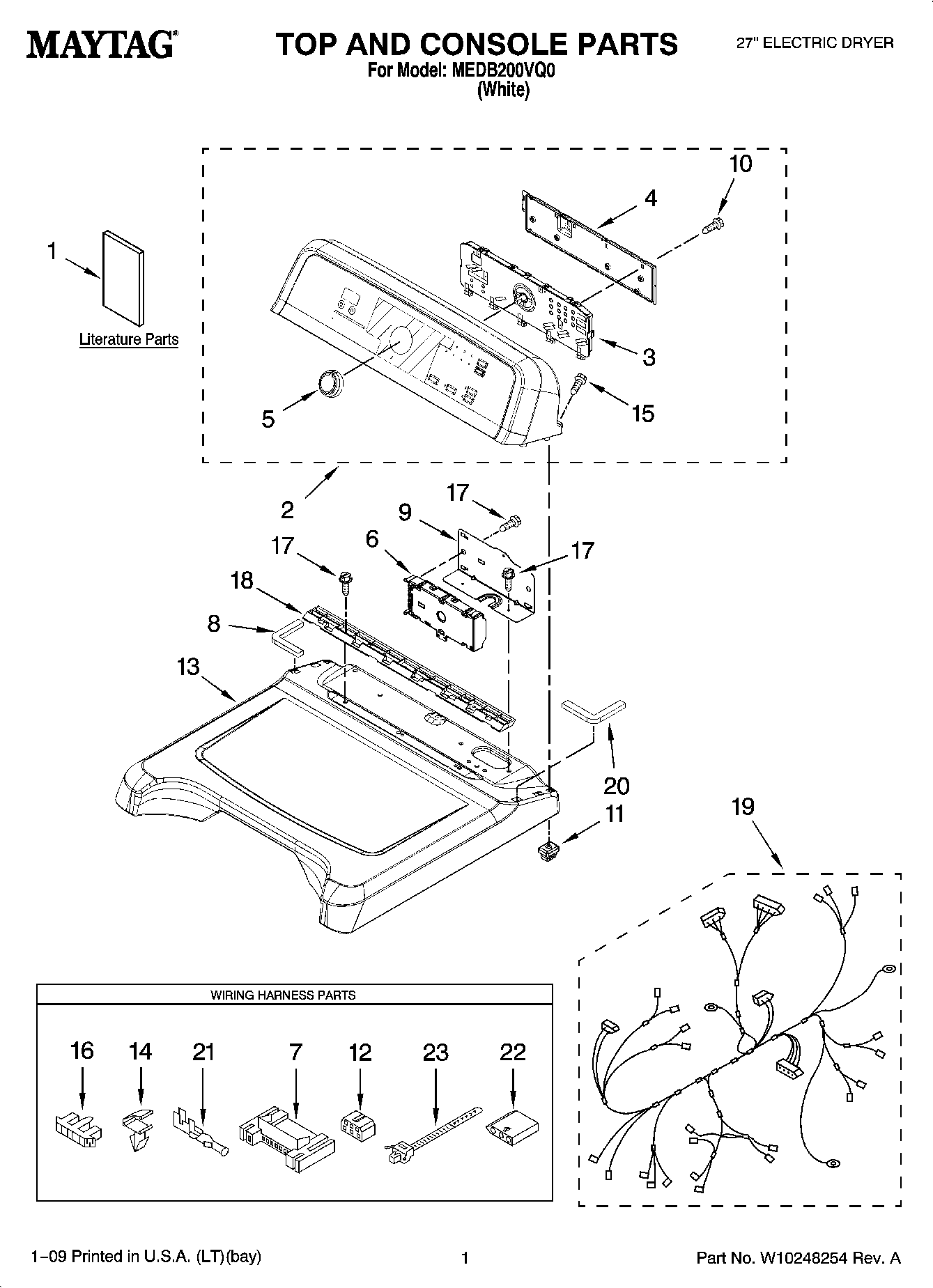

MEDB200VQ0 01 – TOP AND CONSOLE PARTS

MEDB200VQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDB200VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10201172
1MAY W10201170
1MAY W10134980
1MAY W10200965
1MAY W10156733
2MAY W10110298
3MAY W10222206
4COVER, REAR
5MAY W10051126
6MAY W10111621
7CONNECTOR (MOTOR)
8Foam-Top (Left-Side)
9MAY 8563853
10Screw, 6-19 x 3/64
11SCREW, GROMMET
12Connector
13Top (Includes Item. 8 )
14CLIP, HARNESS
15Screw
16Connector-Timer
17Screw, 8-18 x 3/4
18MAY W10110295
19MAY W10111054
20Foam-Top (Right-Side)
21Terminal
22MAY 3936144
23MAY 3391018
