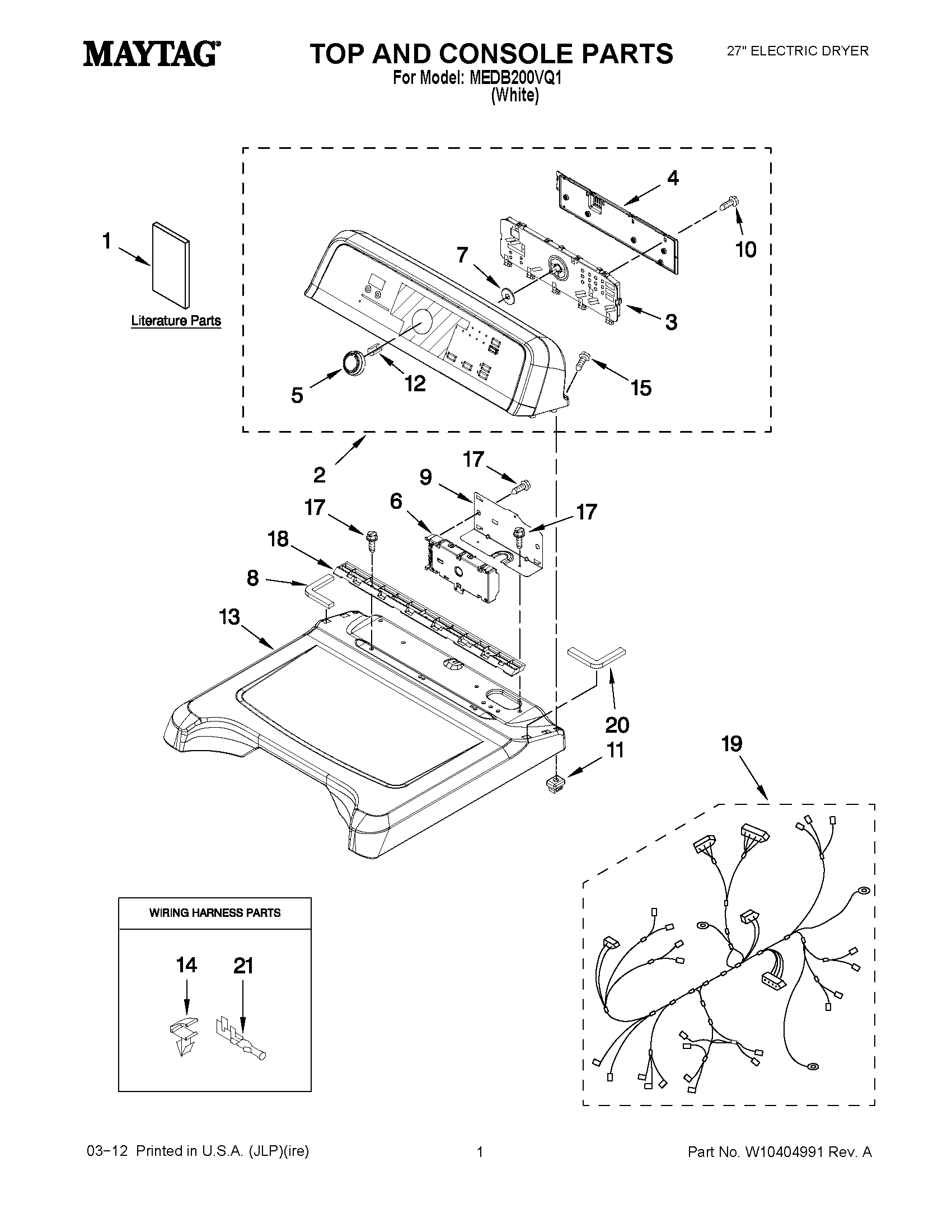

MEDB200VQ1 01 – TOP AND CONSOLE PARTS

MEDB200VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

MEDB200VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10388775
1MAY W10156733
1MAY W10260037
2MAY W10110298
3MAY W10336133
4COVER, REAR
5MAY W10051126
6MAY W10111621
7SEAL, UI
8Foam-Top (Left-Side)
9MAY 8563853
10Screw, 6-19 x 3/64
11SCREW, GROMMET
12MAY W10153920
13TOP (INCLUDES ITEM. 8 )
14CLIP, HARNESS
15Screw
17Screw, 8-18 x 3/4
18MAY W10110295
19MAY W10319798
20Foam-Top (Right-Side)
21Terminal
