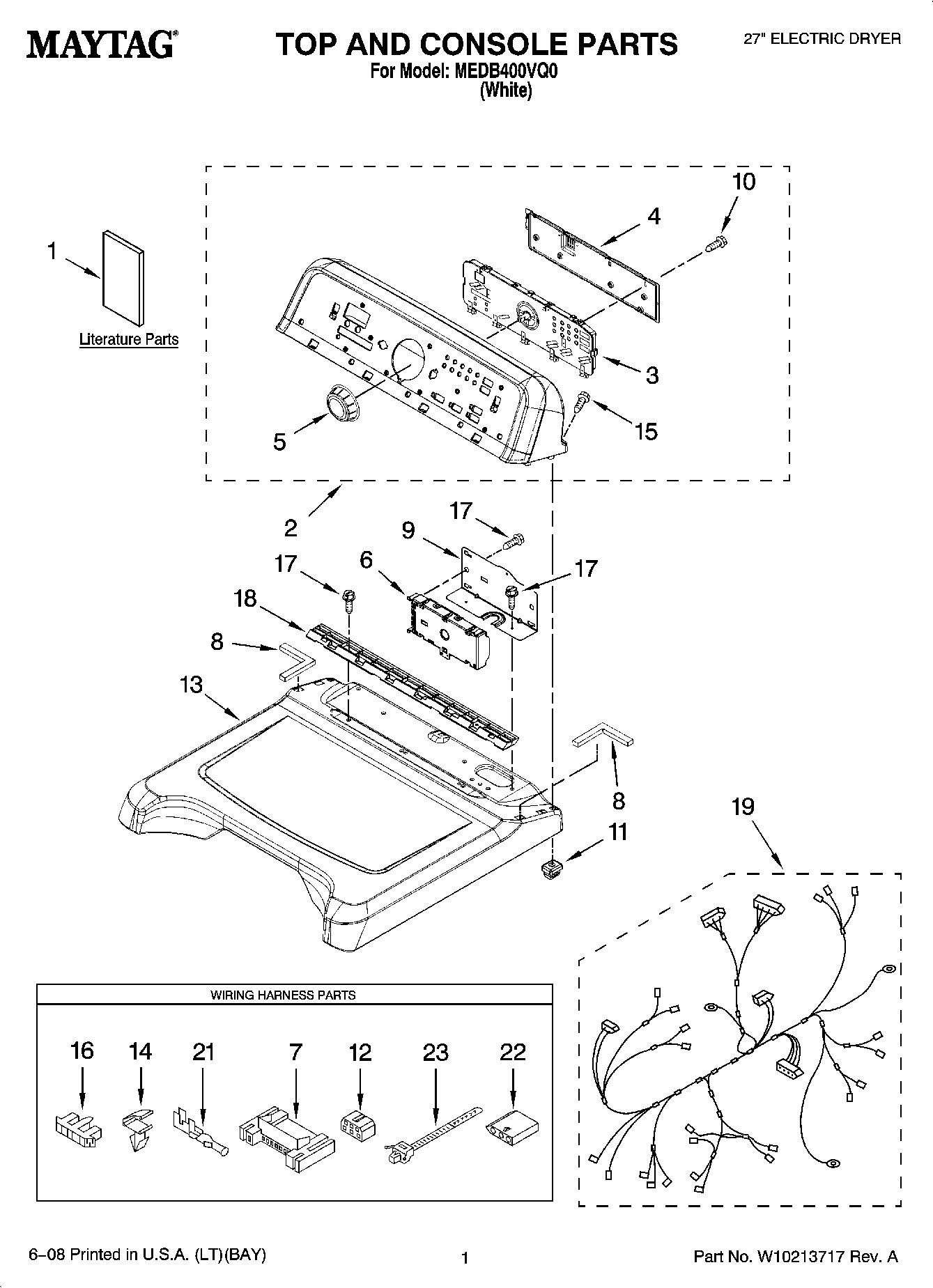

MEDB400VQ0 01 – TOP AND CONSOLE PARTS

MEDB400VQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDB400VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10200965
1MAY W10134980
1MAY W10156733
1MAY W10201174
1MAY W10201170
2MAY W10110298
3MAY W10051116
4COVER, REAR
5MAY W10051126
6MAY W10111621
7CONNECTOR (MOTOR)
8MAY W10185554
9MAY 8563853
10Screw, 6-19 x 3/64
11SCREW, GROMMET
12Connector
13Top (Includes Item. 8 )
14CLIP, HARNESS
15Screw
16Connector-Timer
17Screw, 8-18 x 3/4
18MAY W10110295
19MAY W10111422
21Terminal
22MAY 3936144
23MAY 3391018
