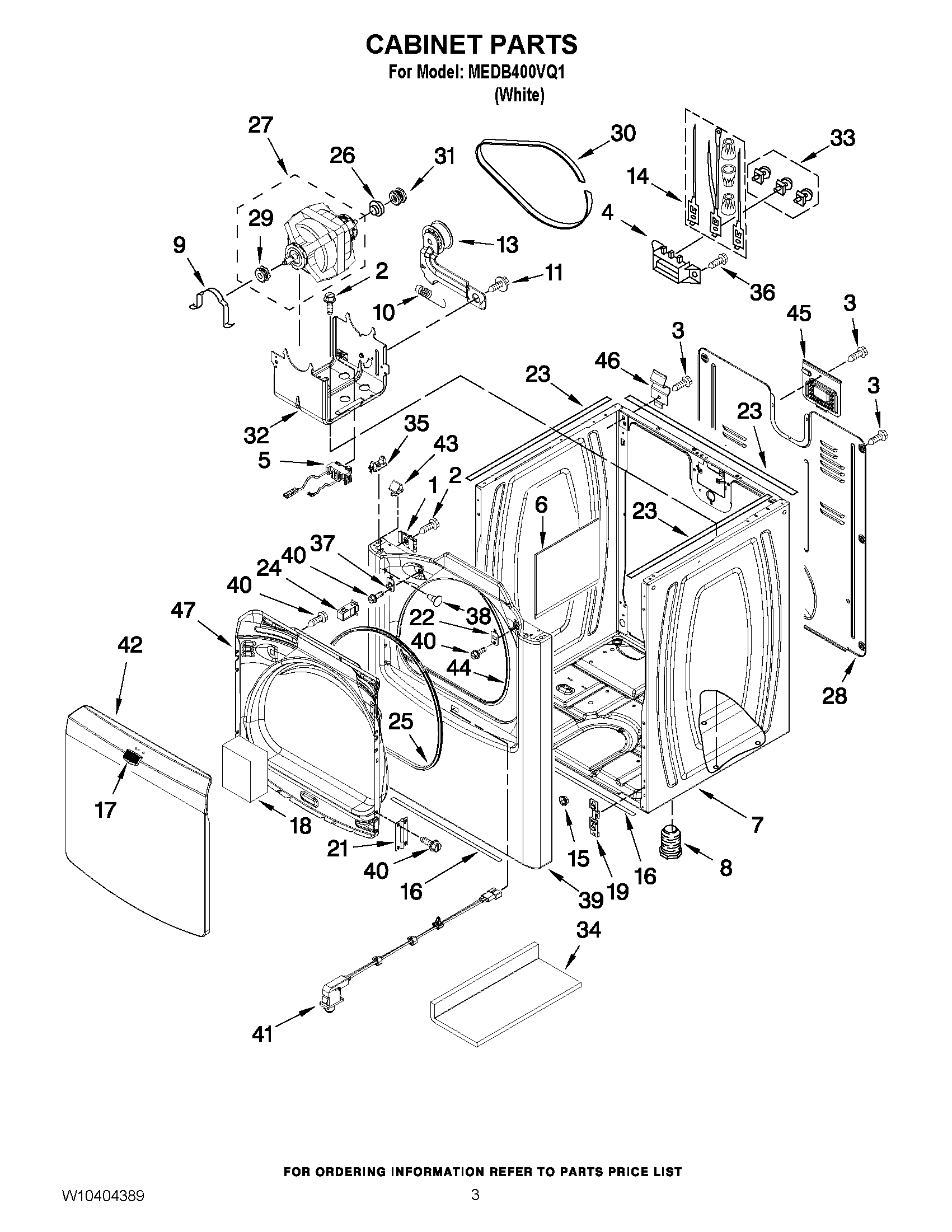

MEDB400VQ1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Clip, Ground (2)
2	SCREW
3	Screw
4	MAY 3397659
5	MAY W10314253
6	MAY W10123956
7	CABINET (INCLUDES ITEM 51 )
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
13	MAY 8547160
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	Plug, Hole
16	MAY W10224768
17	MAY W10323735
18	MAY W10111867
19	MAY 3394083
21	HINGE ASSEMBLY
22	MAY W10111888
23	Seal, Foam
24	MAY W10111905
25	MAY W10221653
26	MAY 3393657
27	MAY W10136932
28	MAY 8558830
29	MAY W10139247
30	MAY W10136934
31	MAY W10136930
32	MAY W10308685
33	MAY 279393
34	MAY W10215725
35	LOCATOR, SNAP-DOWN
36	SCREW, 10-16 X 1/2
37	Strike, Door
38	MAY W10144494
39	Front Panel
40	MAY 3400805
41	MAY W10201785
42	MAY W10111876
43	Lock-Top Front (2)
44	MAY W10044490
45	MAY W10110241
46	MAY 238088
47	MAY W10111879
