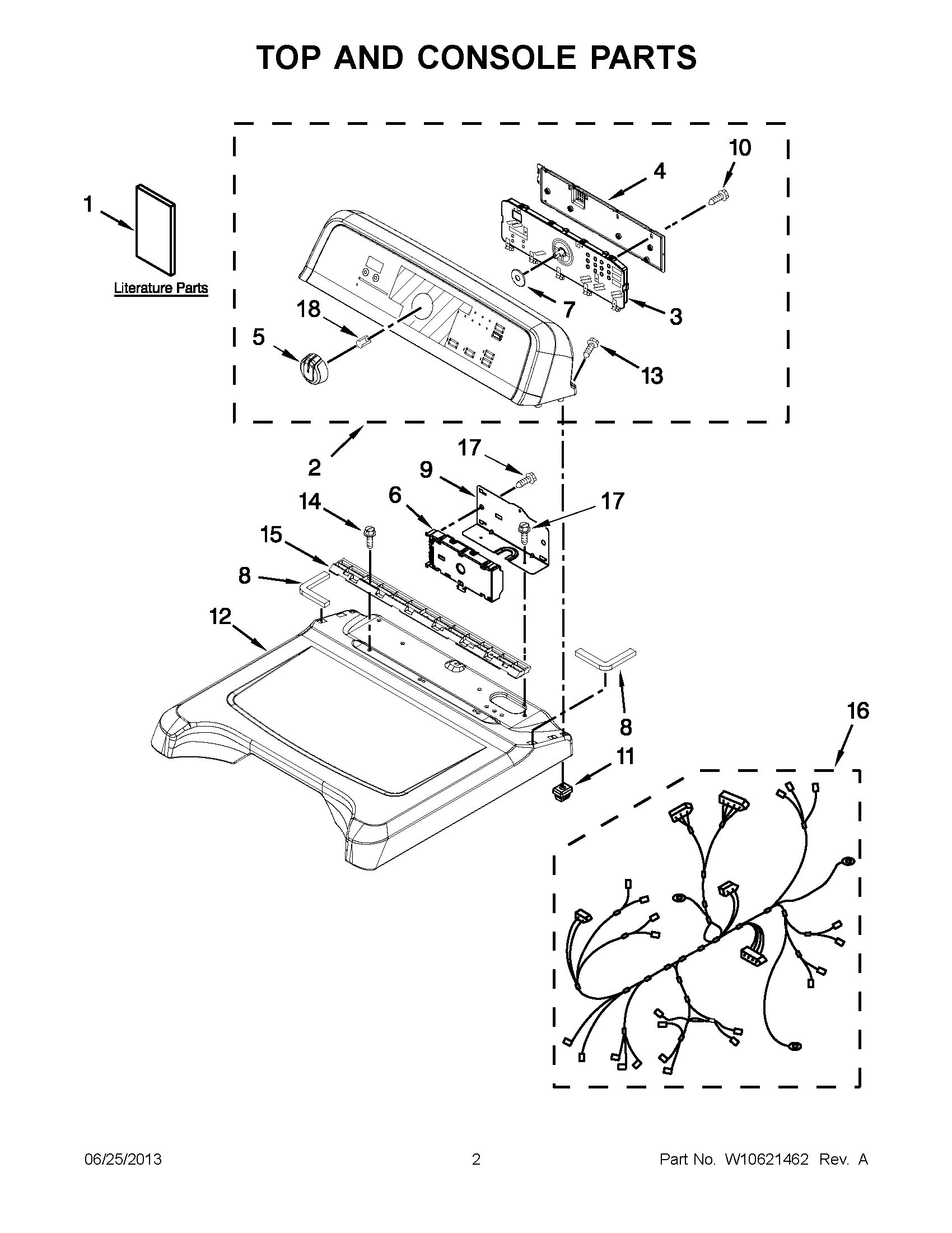

MEDB700BW0 01 – TOP AND CONSOLE PARTS

MEDB700BW0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDB700BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10562335
1MAY W10393006
1MAY W10562334
2CONSOLE ASSEMBLY (WHITE)
3MAY W10388672
4COVER, REAR
5MAY W10571098
6MAY W10536008
7SEAL, UI
8Foam-Top (Left-Side)
8Foam-Top (Right-Side)
9MAY 8563853
10Screw, 6-19 x 3/64
11SCREW, GROMMET
12TOP (INCLUDES ITEM. 8 )
13Screw
14Screw, 8-18 x 3/4
15MAY 8558863
16MAY W10319798
17MAY 3348629
18MAY W10153920
