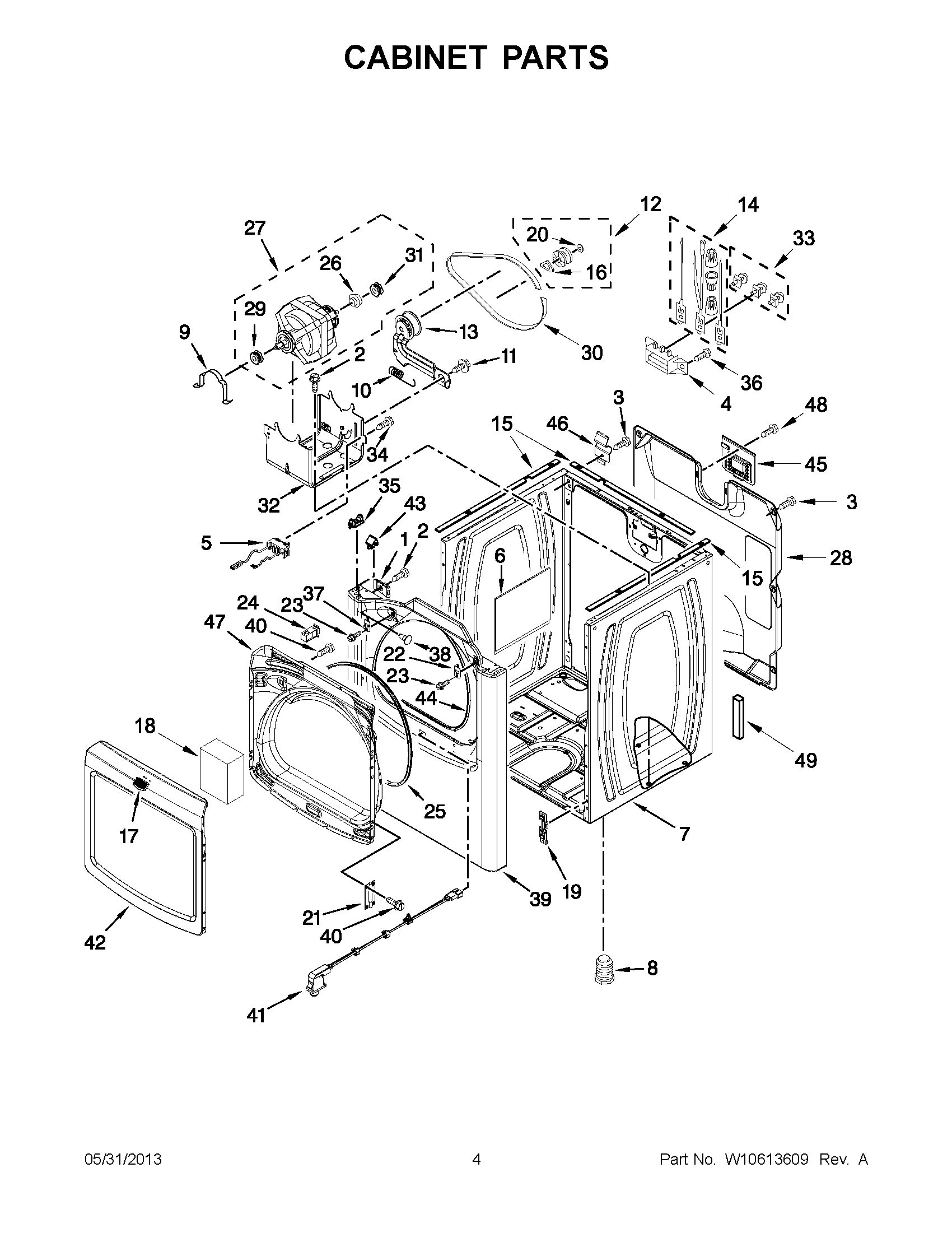

MEDB725BW0 02 – CABINET PARTS

Products

Position	Product
1	Clip, Ground
3	Screw
4	MAY 3397659
5	MAY W10411937
6	MAY W10123956
7	Cabinet (Includes Item 51 )
8	MAY W10561321
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY W10468057
13	IDLER ASSEMBLY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	SEAL, FOAM
16	WASHER, TRI RING
17	MAY W10492808
18	MAY W10111867
19	MAY 3394083
20	MAY W10121334
21	HINGE ASSEMBLY (WHITE)
22	MAY W10111888
23	MAY 3400805
24	MAY W10111905
25	MAY W10221653
26	MAY 3393657
27	MAY W10460374
28	MAY W10140148
29	MAY W10139247
30	MAY W10136934
31	MAY W10136930
32	MAY 8547158
33	MAY 279393
34	SCREW
35	LOCATOR, SNAP-DOWN
36	SCREW, 10-16 X 1/2
37	Strike, Door
38	MAY W10144494
39	FRONT PANEL (WHITE)
40	MAY 342055
41	MAY W10350909
42	MAY W10111876
43	Lock-Top Front (2)
44	MAY W10044490
45	MAY W10110241
46	MAY 238088
47	MAY W10111879
48	MAY 8533974
49	MAY 3350013
