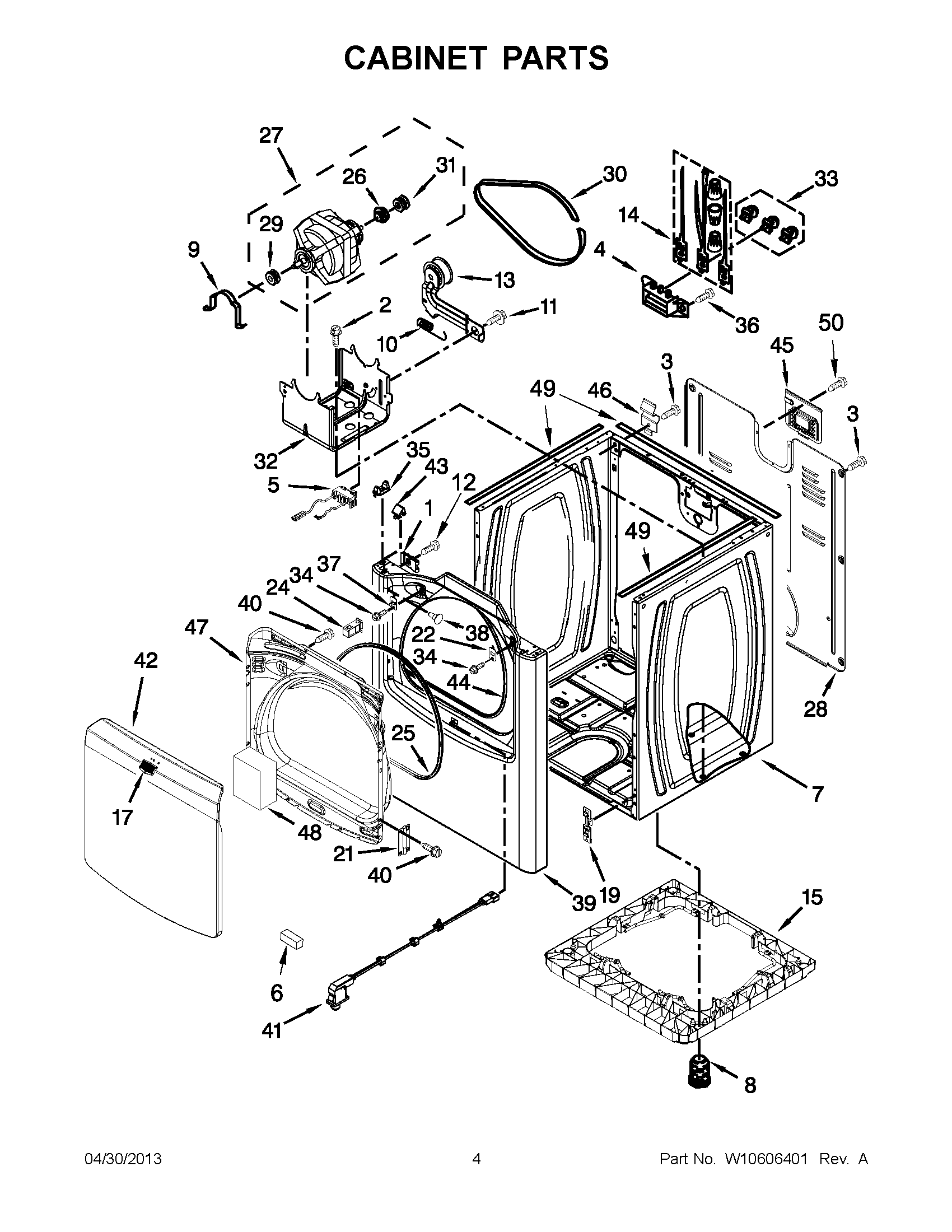

MEDB750YW2 02 – CABINET PARTS

MEDB750YW2 02 – CABINET PARTS

Written by

in

MEDB750YW2 02 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1Clip, Ground
2SCREW
3Screw
4MAY 3397659
5MAY W10411937
6MAY 3350013
7Cabinet (Includes Item 51 )
8MAY W10363894
9MAY 660658
10MAY W10446781
11SCREW
12SCREW
13IDLER ASSEMBLY
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15RISER, FULL
17MAY W10492808
19MAY 3394083
21HINGE ASSEMBLY (WHITE)
22MAY W10111888
24MAY W10111905
25MAY W10221653
26MAY 3393657
27MAY W10460374
28MAY 8558830
29MAY W10139247
30MAY W10136934
31MAY W10136930
32MAY 8547158
33MAY 279393
34MAY 3400805
35LOCATOR, SNAP-DOWN
36SCREW, 10-16 X 1/2
37Strike, Door
38MAY W10144494
39FRONT PANEL (WHITE)
40MAY 342055
41MAY W10350909
42MAY W10111876
43Lock-Top Front (2)
44MAY W10044490
45MAY W10110241
46MAY 238088
47MAY W10111879
48MAY W10111867
49SEAL, FOAM
50MAY 8533974
