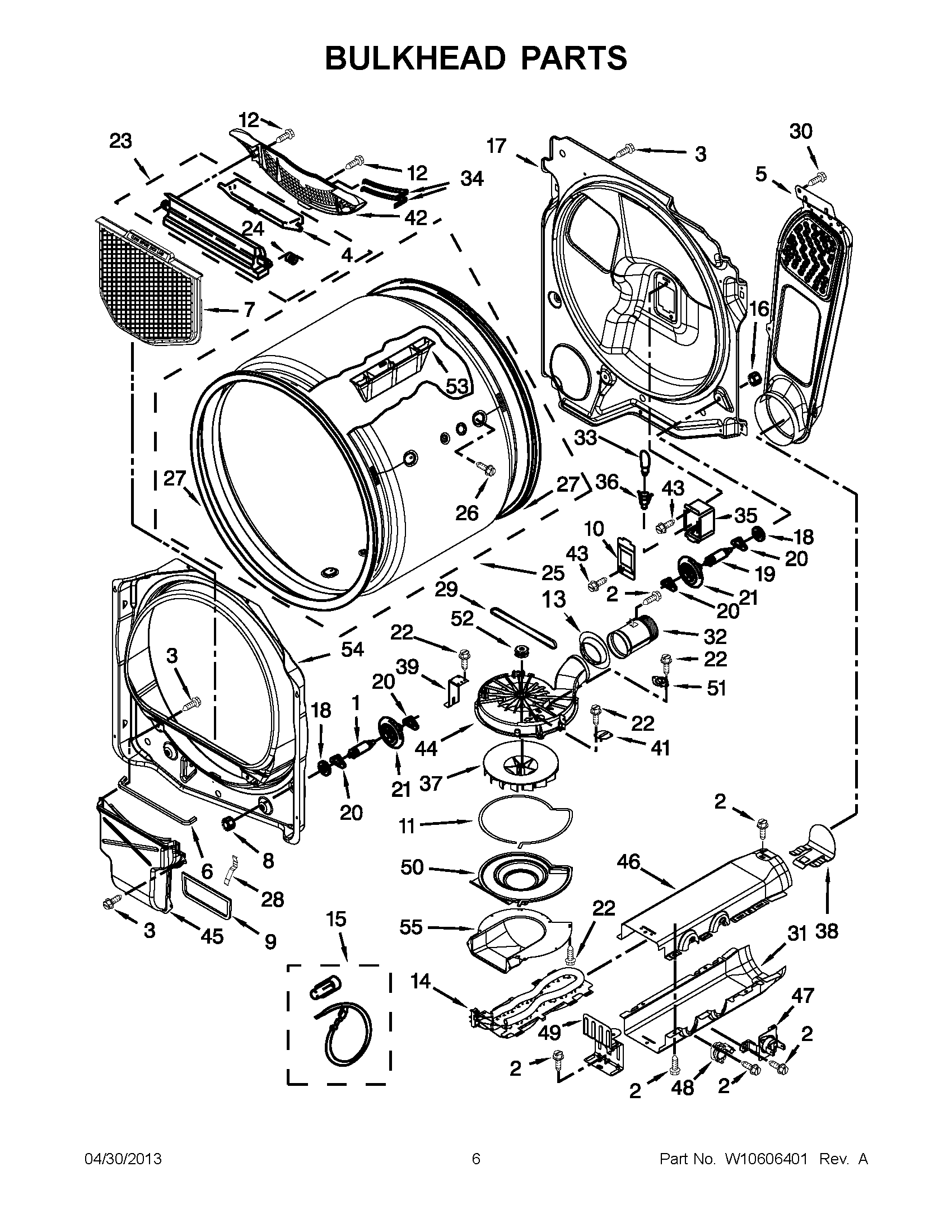

MEDB750YW2 03 – BULKHEAD PARTS

MEDB750YW2 03 – BULKHEAD PARTS

Written by

in

MEDB750YW2 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2SCREW,8-18 X 3/8
3SCREW
4MAY 3394984
5MAY 8544730
6MAY 697813
7LINT SCREEN (WHITE)
8NUT, HEX
9MAY 8544721
10MAY 3402841
11MAY 8573068
12SCREW
13MAY W10475158
14MAY 8544771
15BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16NUT, HEX (LEFT HAND THREAD)
17MAY 8557234
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY 3350424
23MAY 3394985
24Spring, Lint Screen Door
25DRUM ASSEMBLY
26MAY W10219342
27MAY W10521119
28MAY 8573070
29MAY 8544742
30Screw
31MAY 8544770
32MAY W10533417
33MAY 3406124
34SENSOR, ELECTRODE
35MAY 3977373
36MAY W10214261
37MAY 8544737
38MAY 8544776
39BRACKET, HOUSING BLOWER
41THERMAL FUSE (91C)
42Grille, Outlet
43SCREW
44MAY W10256512
45MAY 8544786
46MAY 8544769
47KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
48MAY 8557403
49MAY 8544729
50BLOWER, COVER (INCLUDES, ITEM 11)
51THERMISTOR
52MAY 8544739
53MAY 8563860
54MAY 8557244
55MAY 8544718
