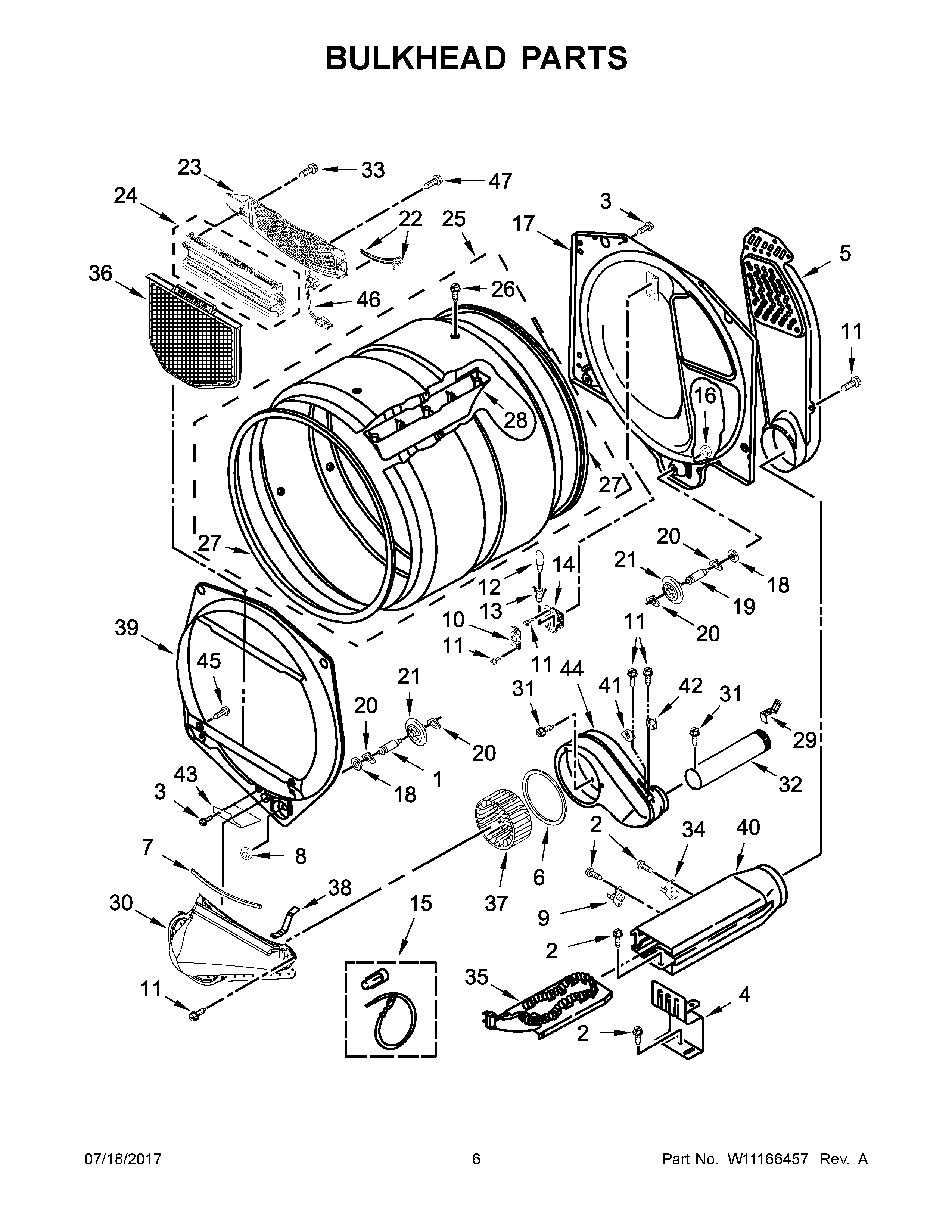

MEDB765FC0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	MAY 359625
3	SCREW
4	MAY 8066099
5	ASSEMBLY, AIR DUCT
6	SEAL, PLATE COVER
7	MAY 697814
8	NUT, HEX
9	MAY 3391914
10	MAY 3402841
11	Screw
12	MAY 3406124
13	MAY W10214261
14	MAY 8578825
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SENSOR, ELECTRODE
23	GRILL, OUTLET
24	ASSEMBLY, OUTLET HOUSING
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	BAFFLE, DRUM
29	CLIP, EXHAUST
30	Lint Duct Assembly
31	Screw
32	PIPE, EXHAUST
33	SCREW
34	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
35	ELEMENT, HEATER
36	LINT SCREEN (WHITE)
37	MAY W10349492
38	CLIP, SPRING
39	BULKHEAD, FRONT
40	ASSEMBLY, WELD HEATER BOX
41	FUSE, THERMAL (91C)
42	THERMISTOR
43	MAY W10128629
44	MAY 8544362
45	Screw, 8-18 x 1/2
46	MAY W10298258
47	SCREW
