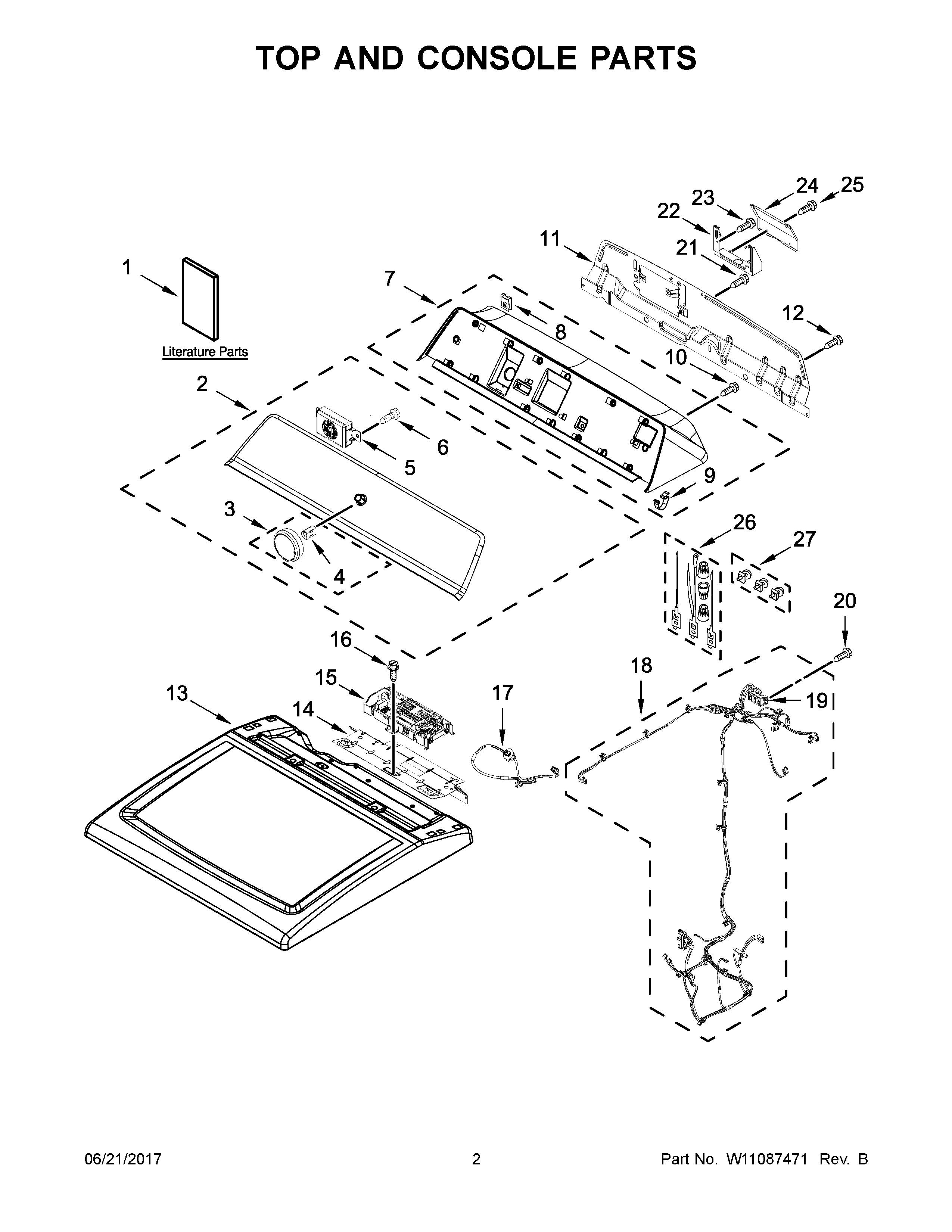

MEDB765FW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	TECH SHEET
1	INSTALLATION INSTRUCTIONS
1A	GUIDE, USE AND CARE
1C	QUICK START GUIDE
2	FASCIA ASSEMBLY
3	ASSEMBLY, CONTROL KNOB (CHROME)
4	CLIP, SPRING
5	ASSEMBLY, SPEAKER
6	MAY 9740849
7	CONSOLE (WHITE)
8	NUT, "U"
9	MAY 8312709
10	SCREW
11	PANEL, REAR CONSOLE
12	MAY W10219342
13	TOP (WHITE)
14	BRACKET, ELECTRONIC CONTROL
15	CONTROL, ELECTRONIC
16	SCREW
17	CABLE, USER INTERFACE
18	WIRING HARNESS
19	MAY 3397659
20	SCREW, 10-16 X 1/2
21	SCREW
22	HOUSING, POWER CORD
23	Screw
24	MAY W11032548
25	SCREW
26	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
27	MAY 279393
