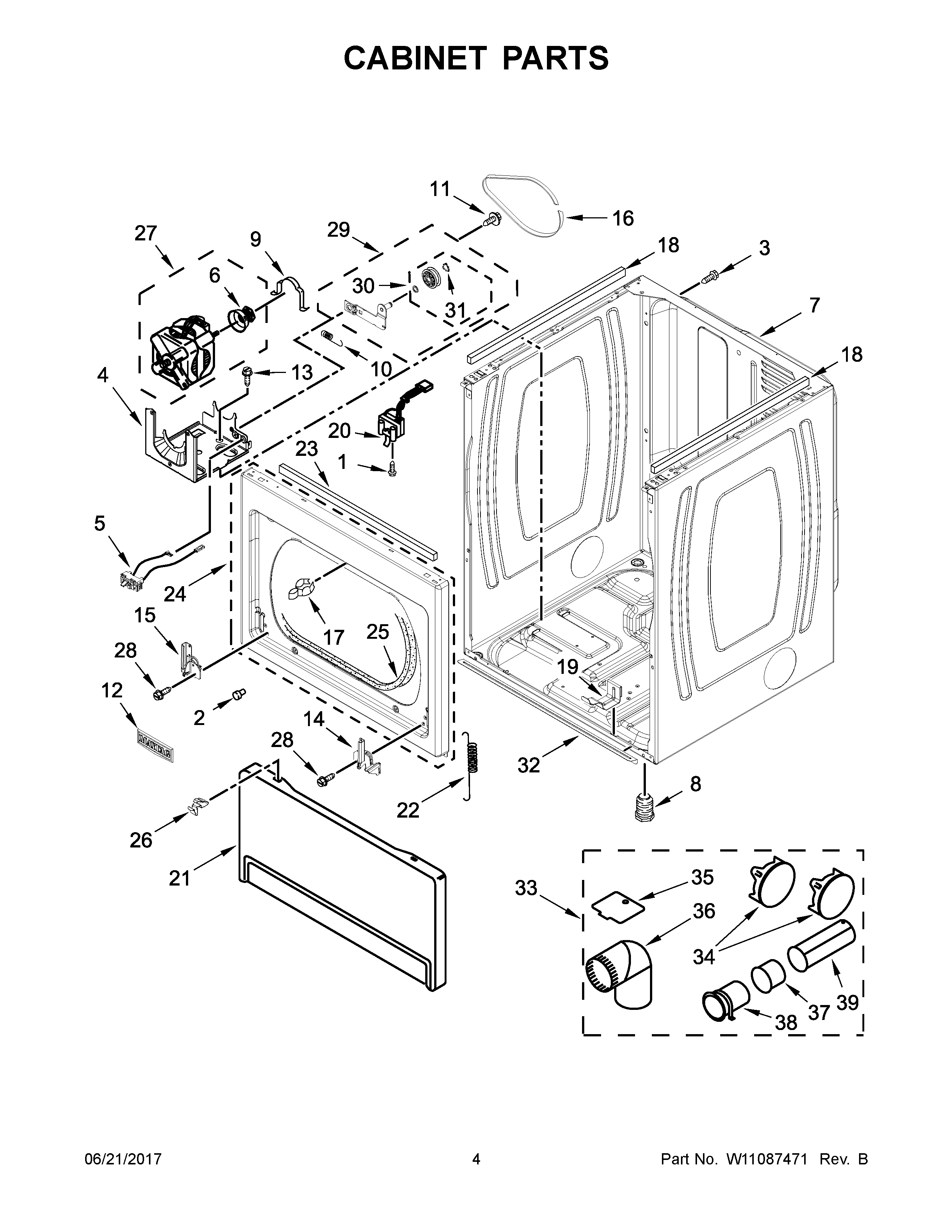

MEDB765FW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	BUMPER
3	MAY 8533971
4	MAY W10242878
5	SWITCH, BROKEN BELT
6	MAY W10460106
7	MAY W10547697
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	BADGE
13	SCREW
14	ASSEMBLY, HINGE (RIGHT)
15	ASSEMBLY, HINGE (LEFT)
16	BELT, DRIVE
17	MAY W10675495
18	SEAL, FOAM
19	CLIP
20	Switch, Door
21	Toe Panel (Includes Item. 2) (White)
22	Spring-Door
23	SEAL, SPILL GUARD
24	Upper Front Panel
25	MAY 3387242
26	RETAINER
27	ASSEMBLY, MOTOR
28	SCREW
29	ASSEMBLY, IDLER
30	MAY W10468057
31	WASHER, TRI RING
32	BRACKET, CABINET
33	KIT, 4-WAY VENT
34	PLUG, MULTIVENT (MIDNIGHT GREY)
35	MAY W10354249
36	MAY W10416072
37	PIPE, EXHAUST (SHORT)
38	PIPE, EXHAUST (MEDIUM)
39	PIPE, EXHAUST (LONG)
