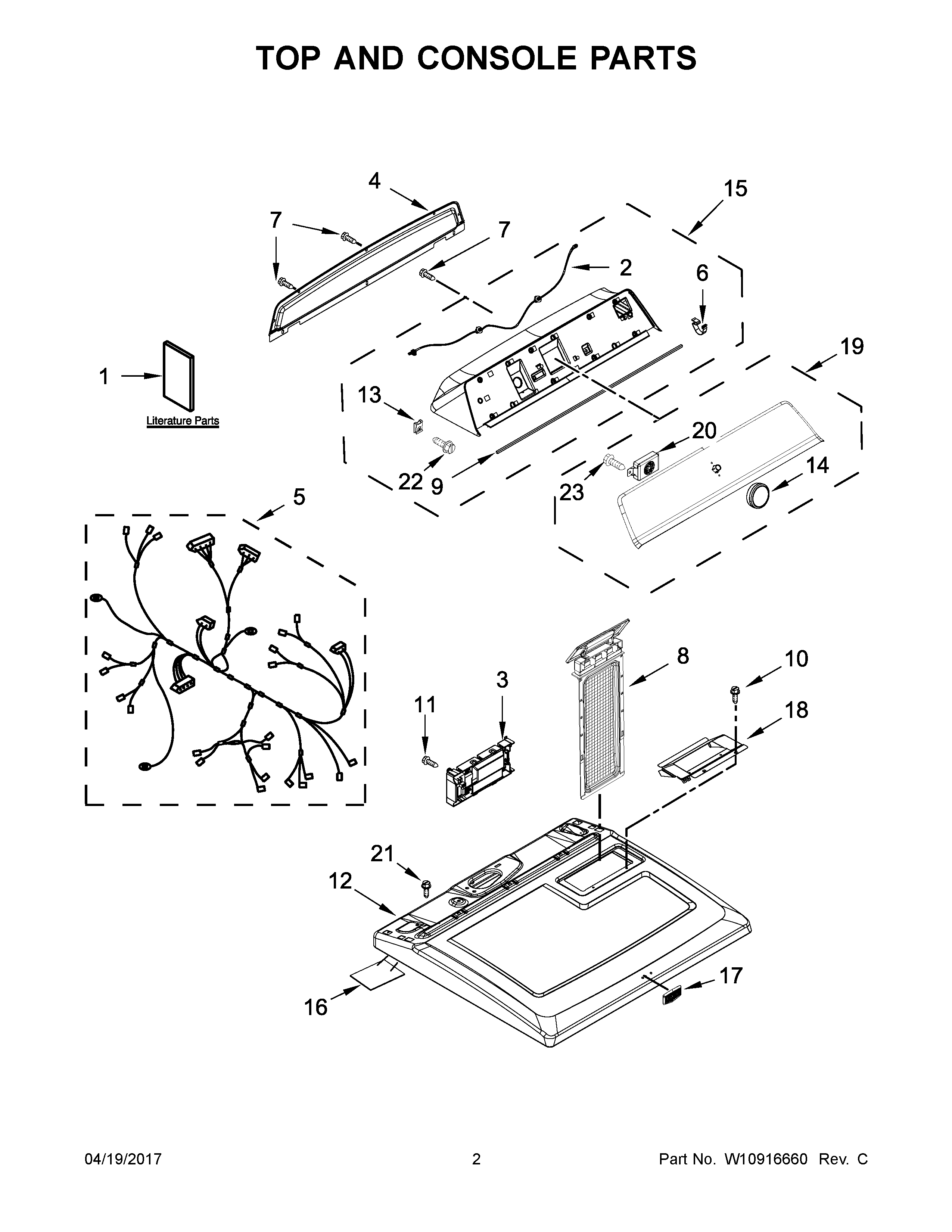

MEDB766FW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1A	TECH SHEET
1B	MAY W10848818
2	HARNESS, USER INTERFACE
3	CONTROL, ELECTRONIC
4	PANEL, REAR
5	MAY W10777422
6	MAY 8312709
7	MAY 8533971
8	LINT SCREEN (WHITE)
9	MAY W10726632
10	SCREW
11	MAY 3348629
12	TOP (WHITE)
13	NUT, "U"
14	ASSEMBLY, CONTROL KNOB (CHROME)
15	ASSEMBLY, CONSOLE (WHITE)
16	MAY W10836097
17	BADGE
18	COLLAR, LINT CHUTE
19	ASSEMBLY, FASCIA
20	ASSEMBLY, SPEAKER
21	SCREW
22	MAY 489470
23	MAY 9740849
