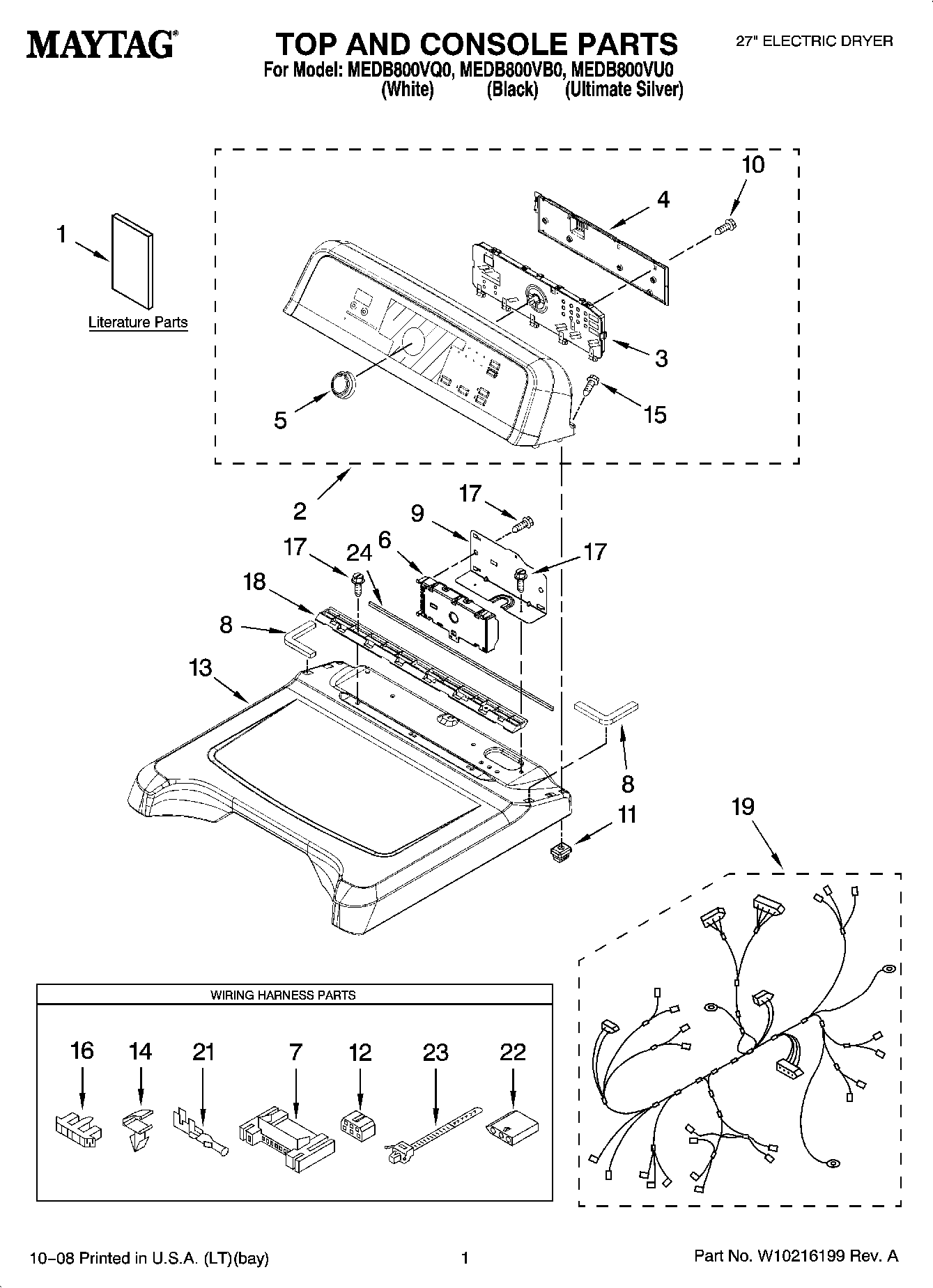

MEDB800VB0 01 – TOP AND CONSOLE PARTS

MEDB800VB0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDB800VB0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10165147
1	MAY W10201171
1	MAY W10200963
1	MAY W10156733
1	MAY W10134980
1	MAY W10201176
2	MAY W10110299
2	MAY W10110296
2	MAY W10166669
3	User Interface
4	COVER, REAR
5	MAY W10051126
6	MAY W10111620
7	CONNECTOR (MOTOR)
8	Foam-Top (Right-Side)
8	MAY W10180206
9	MAY 8563853
10	Screw, 6-19 x 3/64
11	SCREW, GROMMET
12	Connector
13	MAY W10111902
13	MAY W10111911
13	Top (Includes Item. 8 )
14	CLIP, HARNESS
15	Screw
16	Connector-Timer
17	Screw, 8-18 x 3/4
18	MAY W10110295
19	MAY W10163628
21	Terminal
22	MAY 3936144
23	MAY 3391018
24	Seal, Spill Guard
