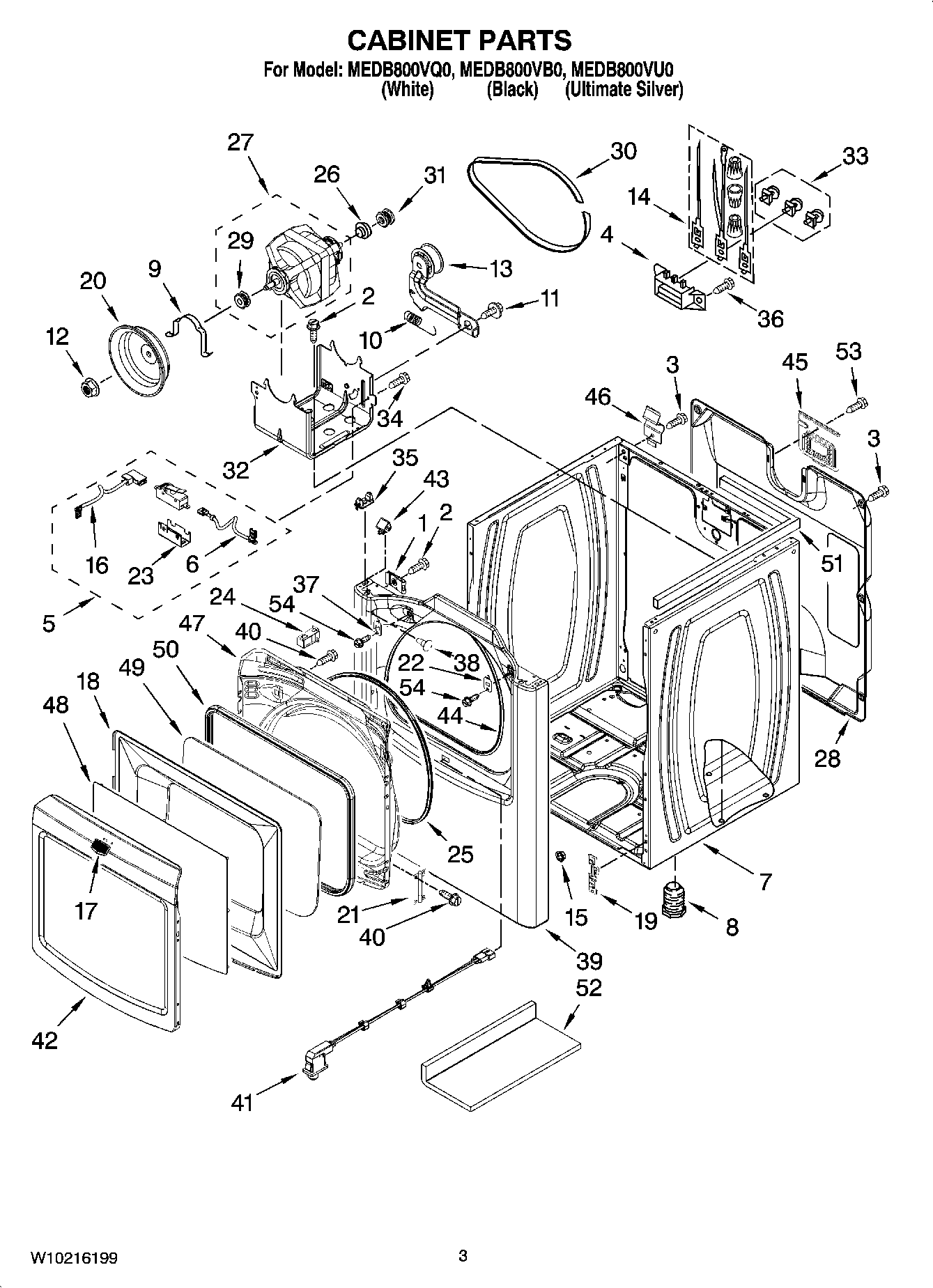

MEDB800VQ0 02 – CABINET PARTS

Products

Position	Product
1	Clip, Ground (2)
2	SCREW
3	Screw
4	MAY 3397659
5	MAY 8564012
6	Wire, Belt (To Protector)
7	Cabinet (Includes Item 51 )
7	MAY W10183831
7	Cabinet (Ultimate Silver)
8	MAY 279810
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY W10001340
13	MAY 8547160
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	Plug, Hole
16	MAY 8539892
17	MAY W10153170
18	MAY W10111880
19	MAY 3394083
20	Fly Wheel
21	MAY W10166512
21	HINGE ASSEMBLY
21	HINGE ASSEMBLY (BLACK)
22	MAY W10111888
23	MAY 8564011
24	MAY W10111905
25	MAY W10215728
26	MAY 3393657
27	MAY W10136932
28	MAY W10140148
29	MAY W10139247
30	MAY W10136934
31	MAY W10136930
32	MAY 8547158
33	MAY 279393
34	Bolt, 6-20 x 1 1/4
35	LOCATOR, SNAP-DOWN
36	SCREW, 10-16 X 1/2
37	Strike, Door
38	MAY W10144494
39	Front Panel
39	MAY W10194731
39	MAY W10111885
40	MAY 342055
41	MAY W10201785
42	MAY W10111898
42	MAY W10111909
42	Door, Outer
43	Lock-Top Front (2)
44	MAY W10044490
45	MAY W10110241
46	MAY 238088
47	Door, Inner
47	MAY W10111900
47	MAY W10111910
48	MAY W10111858
49	MAY W10111857
50	MAY W10111859
51	Seal, Spill Guard
52	MAY W10215725
53	Screw, 8-18 x 5/8 (External Ground)
54	Screw, 8-18 x 1/2
