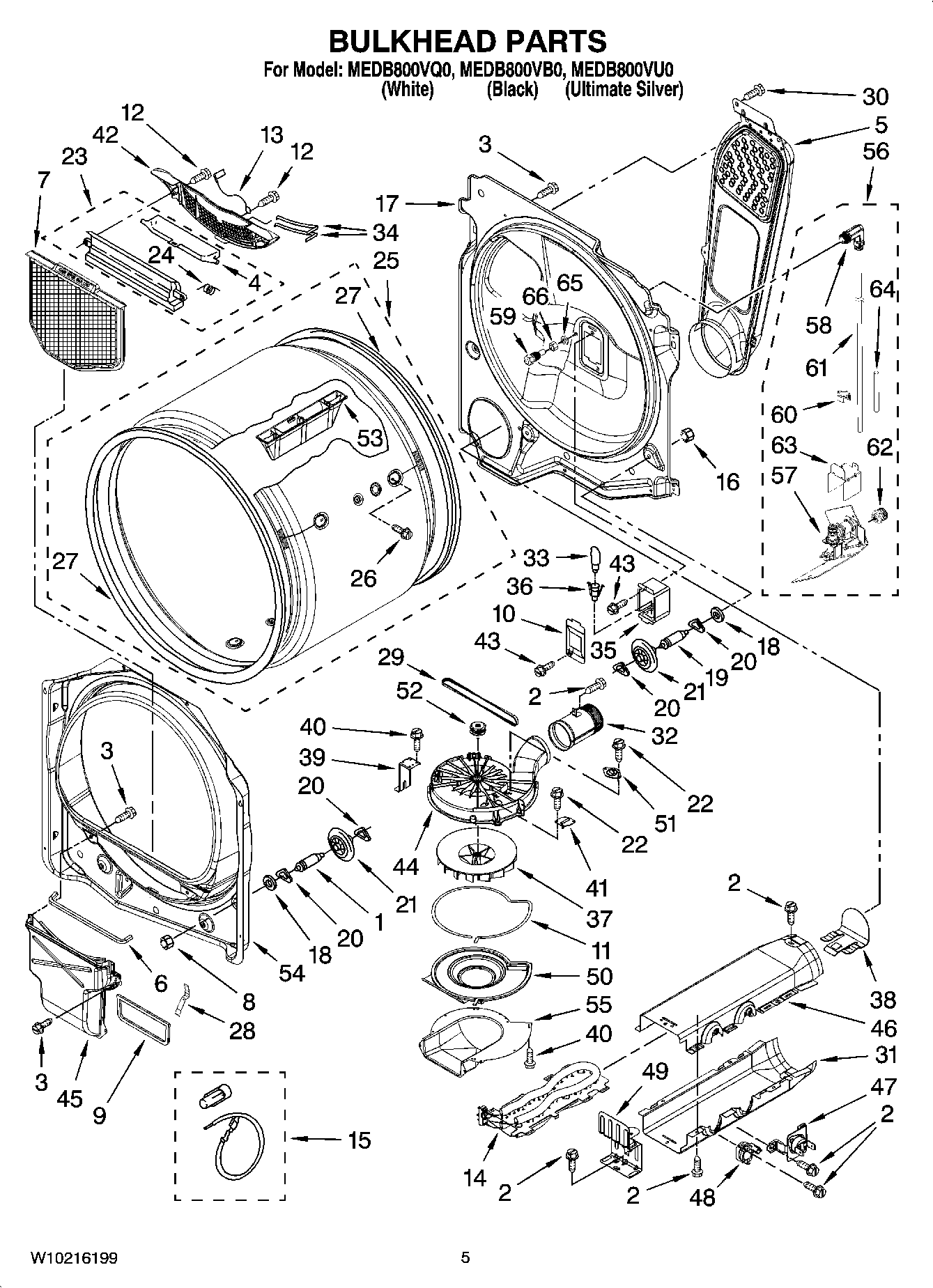

MEDB800VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

MEDB800VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

MEDB800VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIMAY 8212605
NIACCESSORY PARTS, KIT, DRYER REPAIR
NIConnector, Hose
NIHose, Inlet 1 Ft. Hose
NIMAY 8544761
NIHose, Inlet 6 Ft. Hose With Elbow
NISide Venting
NIMISCELLANEOUS PARTS BAG, WASHER, INLET HOSE
NIACCESSORY PARTS, HOSE KIT FOR STEAM DRYER
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
NIPAINT, TOUCH-UP (1/2OZ. BLACK)
1MAY 8575324
2SCREW,8-18 X 3/8
3SCREW
4MAY 3394984
5MAY 8544730
6MAY 697813
7MAY W10178353
8NUT, HEX
9MAY 8544721
10MAY 3402841
11MAY 8573068
12SCREW
13Wire
14MAY 8544771
15BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16NUT, HEX (LEFT HAND THREAD)
17MAY W10139797
18WASHER
19MAY 8575325
20WASHER, TRI RING
21MAY 8536973
22MAY 3350424
23MAY 3394985
24Spring, Lint Screen Door
25MAY 8557269
26MAY W10109200
27MAY W10116344
28MAY 8573070
29MAY 8544742
30Screw
31MAY 8544770
32MAY 8544755
33MAY 3406124
34SENSOR, ELECTRODE
35MAY 3977373
36Socket Assembly
37MAY 8544737
38MAY 8544776
39BRACKET, HOUSING BLOWER
40MAY 97787
41THERMAL FUSE (91C)
42Grille, Outlet
43MAY 487909
44MAY 8544735
45MAY 8544786
46MAY 8544769
47MAY 8318314
48MAY 8557403
49MAY 8544729
50BLOWER, COVER (INCLUDES, ITEM 11)
51THERMISTOR
52MAY 8544739
53MAY 8563860
54MAY 8557244
55MAY 8544718
56Valve & Hose (Complete)
57MAY W10129424
58Nozzle & Hose Assembly (Includes Items, 59, 64, 65 & 66 )
59MAY W10044629
60Clip, Push-To-Connect
61Hose, Nylon (Not Servicable) (Service With
62MAY W10044605
63MAY W10160575
64MAY W10159631
65MAY W10044579
66Nut, Brass 9/16 – 24 x 1/2
