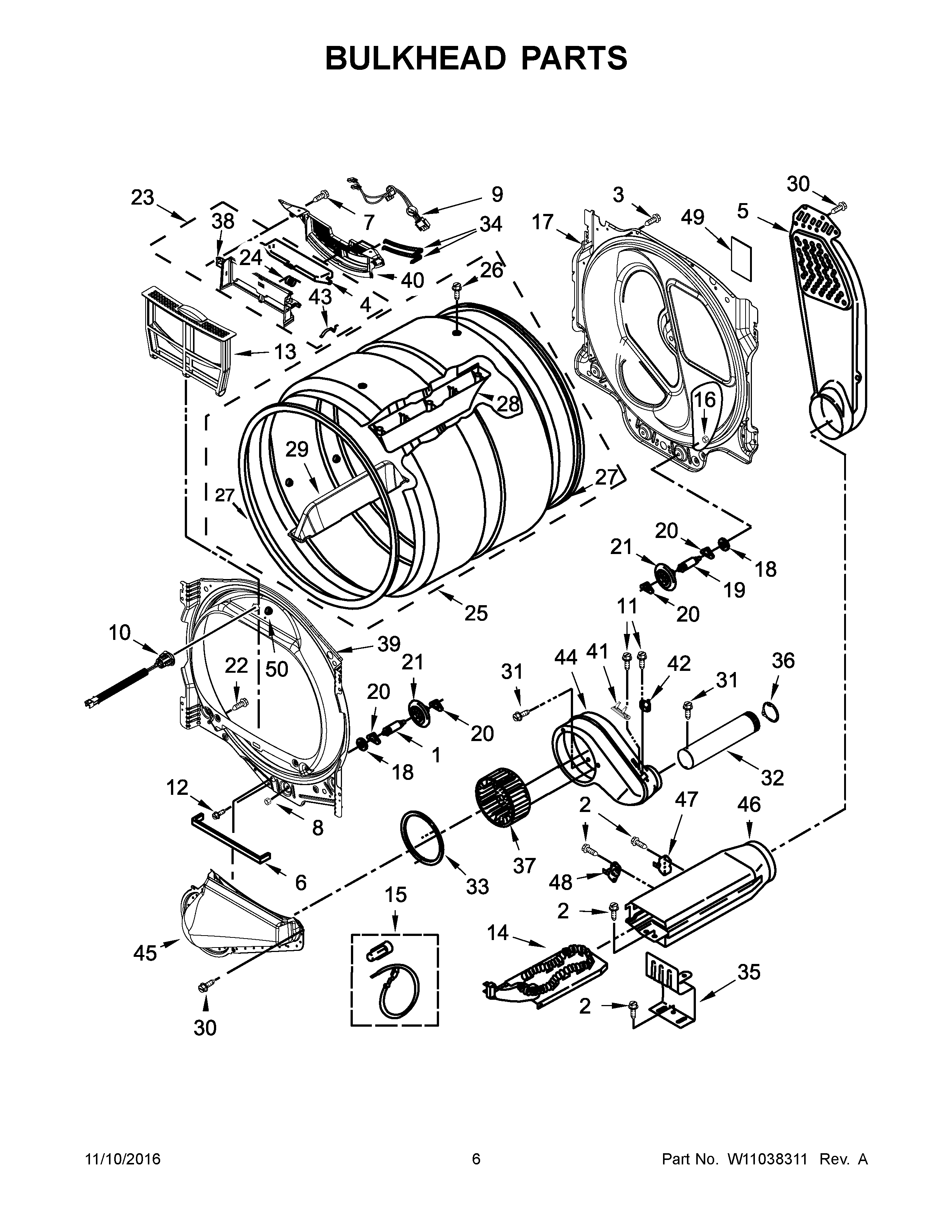

MEDB835DC3 04 – BULKHEAD PARTS
Written by
in
MEDB835DC3 04 – BULKHEAD PARTS
Products
Position
Product
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD
2
MAY W10567155
3
SCREW
4
MAY W10608808
5
MAY W10834202
6
MAY W10701355
7
SCREW
8
NUT, HEX
9
MAY W10657328
10
MAY W10629046
12
SCREW
13
WHITE
14
MAY W10608823
15
BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16
NUT, HEX (LEFT HAND THREAD)
17
MAY W10638203
18
WASHER
19
SHAFT, DRUM ROLLER – LEFT HAND THREAD
20
WASHER, TRI RING
21
ROLLER, SUPPORT
22
Screw
23
MAY W10608812
24
MAY W10219015
25
MAY W10626460
26
MAY W10219342
27
MAY W10664120
28
MAY W10767090
29
MAY W10767074
30
Screw
31
SCREW,8-18 X 3/8
32
MAY W10608817
33
MAY W10868675
34
MAY W10608814
35
MAY 8066099
36
MAY W10344699
37
MAY 697772
38
MAY W10608806
39
MAY W10861007
40
MAY W10608813
41
FUSE, THERMAL (91C)
42
THERMISTOR
43
MAY W10608815
44
MAY W10667717
45
MAY W10868982
46
ASSEMBLY, WELD HEATER BOX
47
KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
48
MAY 8557403
49
MAY W10504381
50
CAP
←
