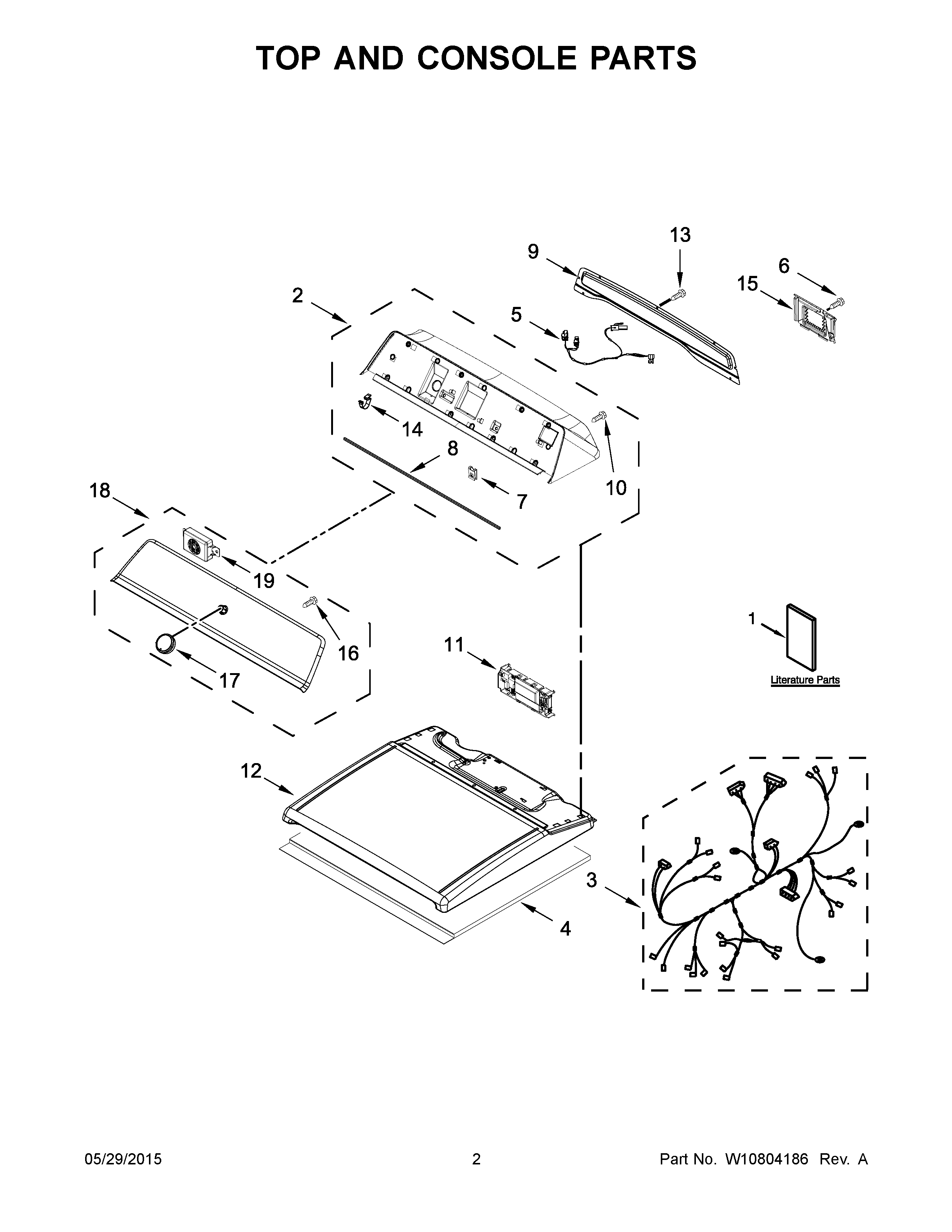

MEDB835DW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10680141
1B	MAY W10680150
1	MAY W10725269
2	ASSEMBLY, CONSOLE (WHITE)
3	MAY W10706040
4	MAY W10123956
5	MAY W10788429
6	MAY 489470
7	NUT, "U"
8	MAY W10726632
9	MAY W10622402
10	MAY W10219342
11	MAY W10793301
12	MAY W10508981
13	SCREW
14	MAY 8312709
15	MAY W10316167
16	MAY 9740849
17	ASSEMBLY, CONTROL KNOB (CHROME)
18	MAY W10740702
19	ASSEMBLY, SPEAKER
