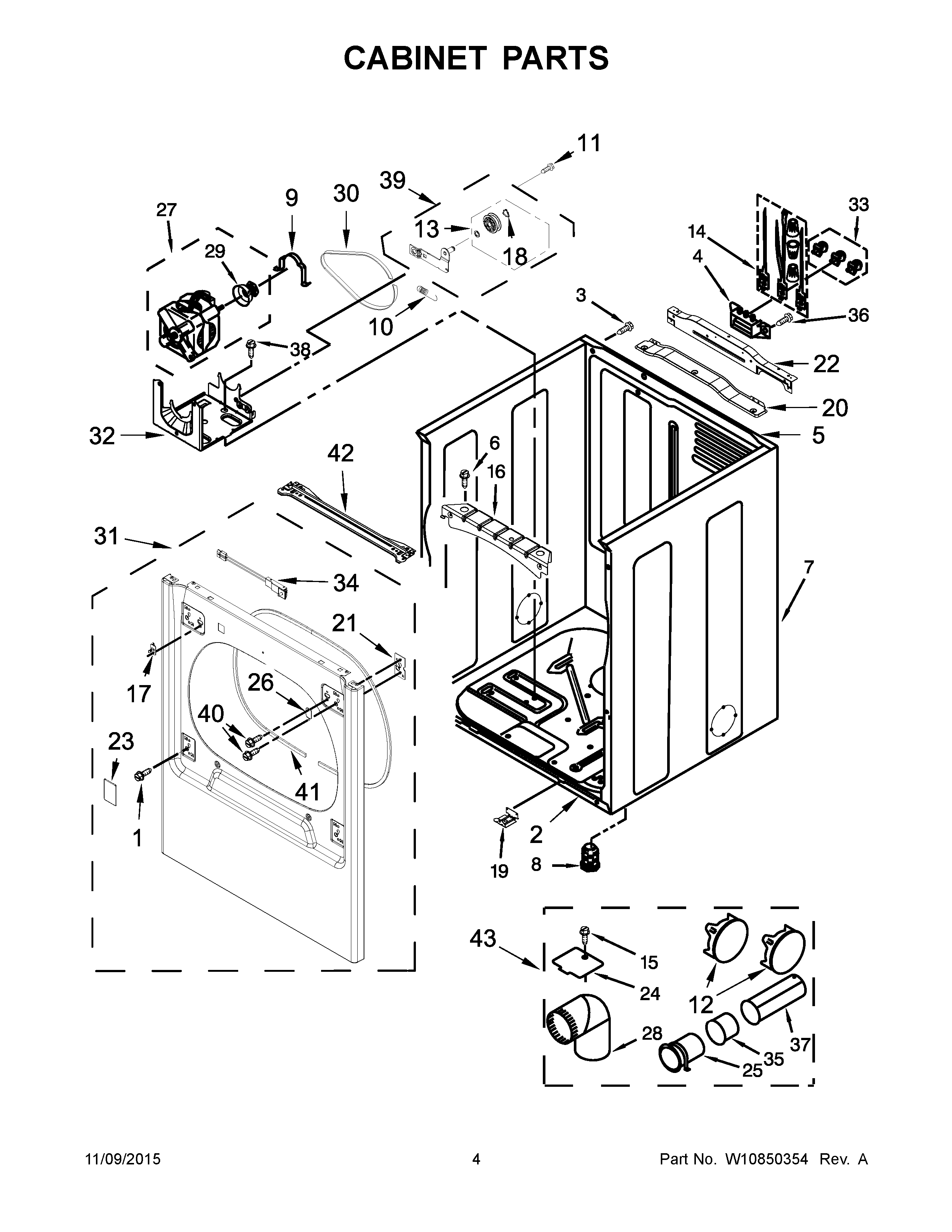

MEDB835DW2 03 – CABINET PARTS
Written by
in
MEDB835DW2 03 – CABINET PARTS
Products
Position
Product
NI
MAY 279810
1
SCREW
2
MAY W10613683
3
MAY W10636208
4
MAY 3397659
5
MAY W10824895
6
Screw
7
CABINET (WHITE (WITHOUT CUTOUT))
8
MAY 3392100
9
CLAMP, MOTOR MOUNT
10
MAY W10446781
11
SCREW
12
MAY 49252
13
MAY W10468057
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15
SCREW
16
MAY W10632348
17
MAY W10775540
18
WASHER, TRI RING
19
MAY W10632347
20
BULKHEAD BRACKET, REAR PANEL (WHITE)
21
MAY W10596959
22
MAY W10622391
23
PLUG, HINGE (WHITE)
24
MAY 3394331
25
PIPE, EXHAUST (MEDIUM)
26
MAY W10111888
27
MAY W10806761
28
MAY 49026
29
MAY W10669447
30
MAY W10610886
31
MAY W10777207
32
MAY W10578053
33
MAY 279393
34
MAY W10459026
35
MAY 8563750
36
SCREW, 10-16 X 1/2
37
PIPE, EXHAUST (LONG)
38
SCREW
39
ASSEMBLY, IDLER
40
MAY 3400805
41
MAY 3387242
42
MAY W10722502
43
KIT, 4-WAY VENT
←
