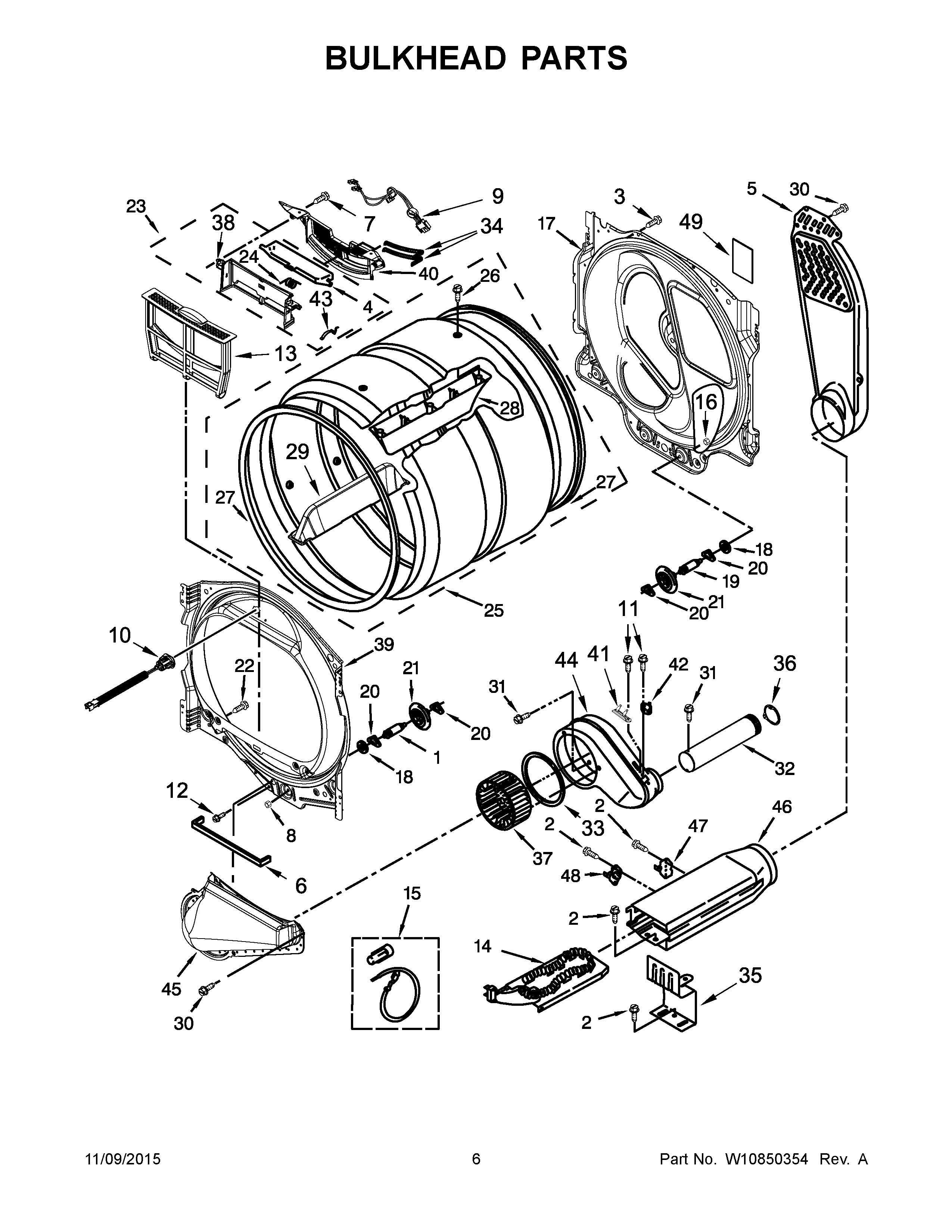

MEDB835DW2 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	MAY W10567155
3	SCREW
4	MAY W10608808
5	MAY W10834202
6	MAY W10701355
7	SCREW
8	NUT, HEX
9	MAY W10657328
10	MAY W10629046
12	SCREW
13	WHITE
14	MAY W10608823
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10638203
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	Screw
23	MAY W10608812
24	MAY W10219015
25	MAY W10626460
26	MAY W10219342
27	MAY W10664120
28	MAY W10767090
29	MAY W10767074
30	Screw
31	SCREW,8-18 X 3/8
32	MAY W10608817
33	SEAL, PLATE COVER
34	MAY W10608814
35	MAY 8066099
36	MAY W10344699
37	MAY 697772
38	MAY W10608806
39	MAY W10623481
40	MAY W10608813
41	FUSE, THERMAL (91C)
42	THERMISTOR
43	MAY W10608815
44	MAY W10667717
45	MAY W10608803
46	ASSEMBLY, WELD HEATER BOX
47	MAY 8318314
48	MAY 8557403
49	MAY W10504381
