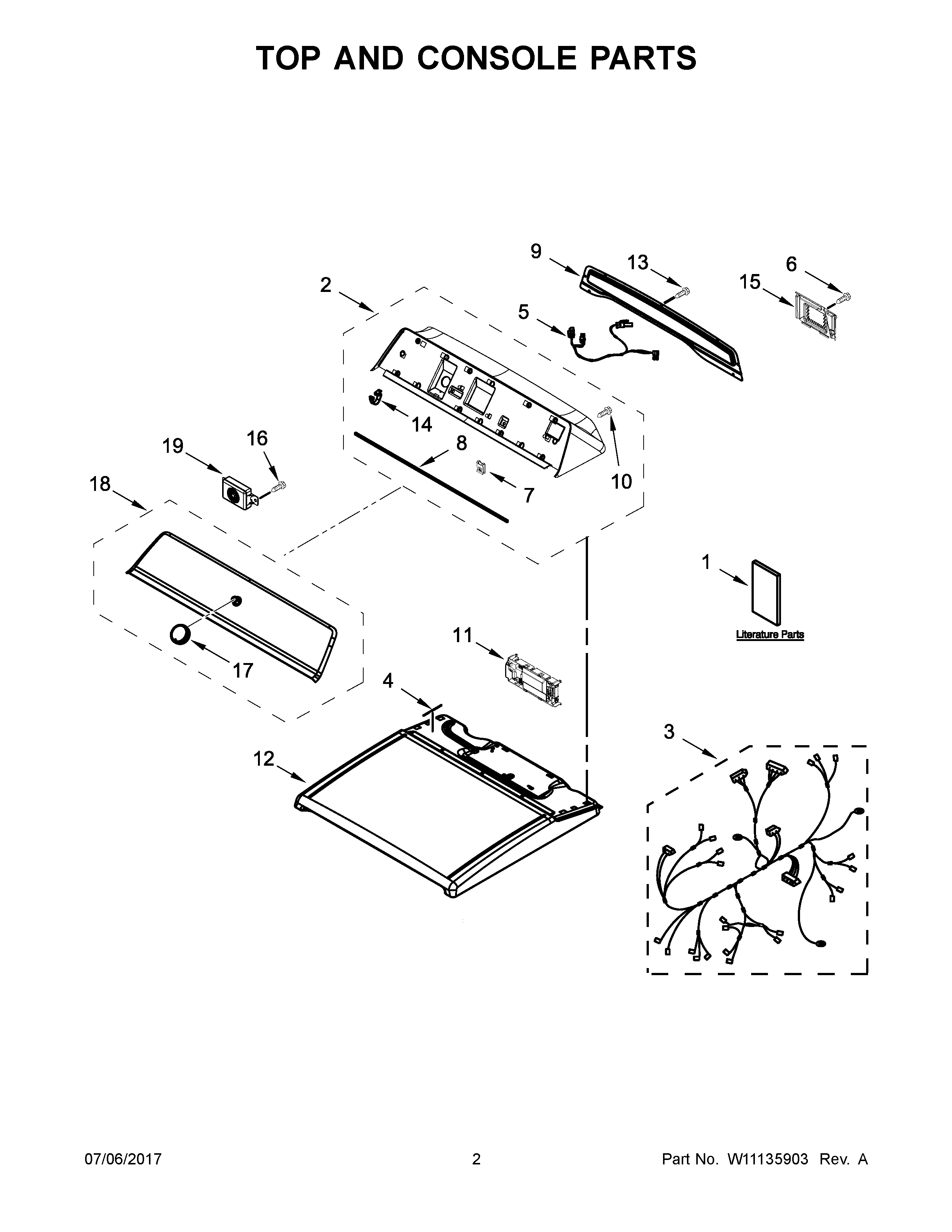

MEDB835DW4 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	TECH SHEET
1D	MAY W11089276
1C	MAY W10901544
1A	USE AND CARE GUIDE
1	MAY W10725269
2	ASSEMBLY, CONSOLE (WHITE)
3	MAY W10901572
4	MAY W10185554
5	MAY W10788429
6	MAY 489470
7	NUT, "U"
8	MAY W10726632
9	MAY W10622402
10	MAY W10219342
11	CONTROL, ELECTRONIC
12	MAY W10508981
13	SCREW
14	MAY 8312709
15	MAY W10316167
16	MAY 9740849
17	ASSEMBLY, CONTROL KNOB (CHROME)
18	FASCIA
19	ASSEMBLY, SPEAKER
