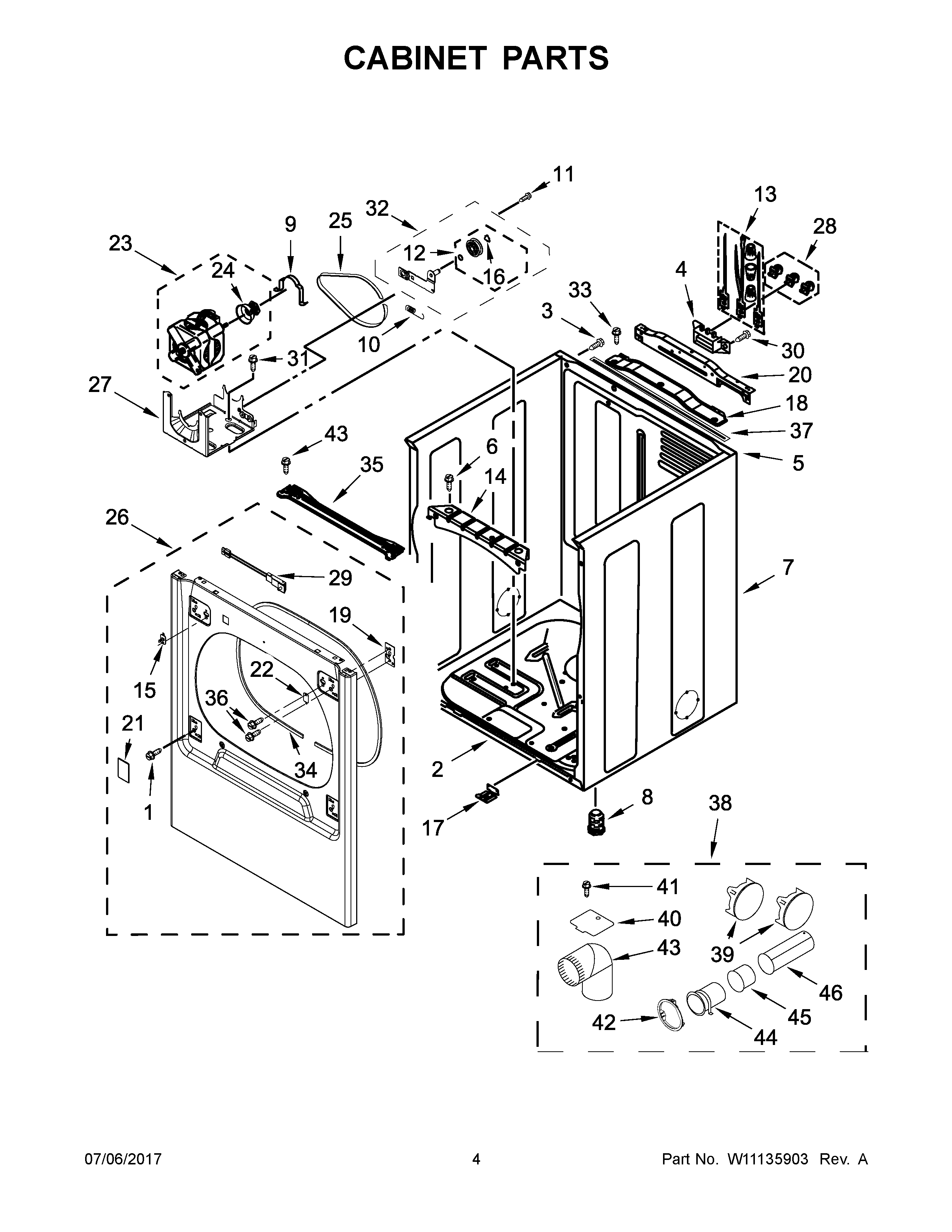

MEDB835DW4 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY W10613683
3	MAY W10636208
4	MAY 3397659
5	MAY W10824895
6	Screw
7	CABINET (WHITE (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY W10468057
13	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
14	MAY W10632348
15	MAY W10778071
16	WASHER, TRI RING
17	MAY W10632347
18	BULKHEAD BRACKET, REAR PANEL (WHITE)
19	MAY W10596959
20	MAY W10622391
21	PLUG, HINGE (WHITE)
22	MAY W10111888
23	MAY W10806761
24	MAY W10669447
25	MAY W10610886
26	MAY W10861063
27	MAY W10578053
28	MAY 279393
29	MAY W10459026
30	SCREW, 10-16 X 1/2
31	SCREW
32	ASSEMBLY, IDLER
33	SCREW
34	MAY 3387242
35	MAY W10722502
36	SCREW
37	MAY W10316616
38	MAY W10704365
39	PLUG, MULTIVENT (MIDNIGHT GREY)
40	MAY W10354249
41	SCREW
42	MAY W10344699
43	MAY 49026
44	MAY W10587890
45	PIPE, EXHAUST (SHORT)
46	PIPE, EXHAUST (LONG)
