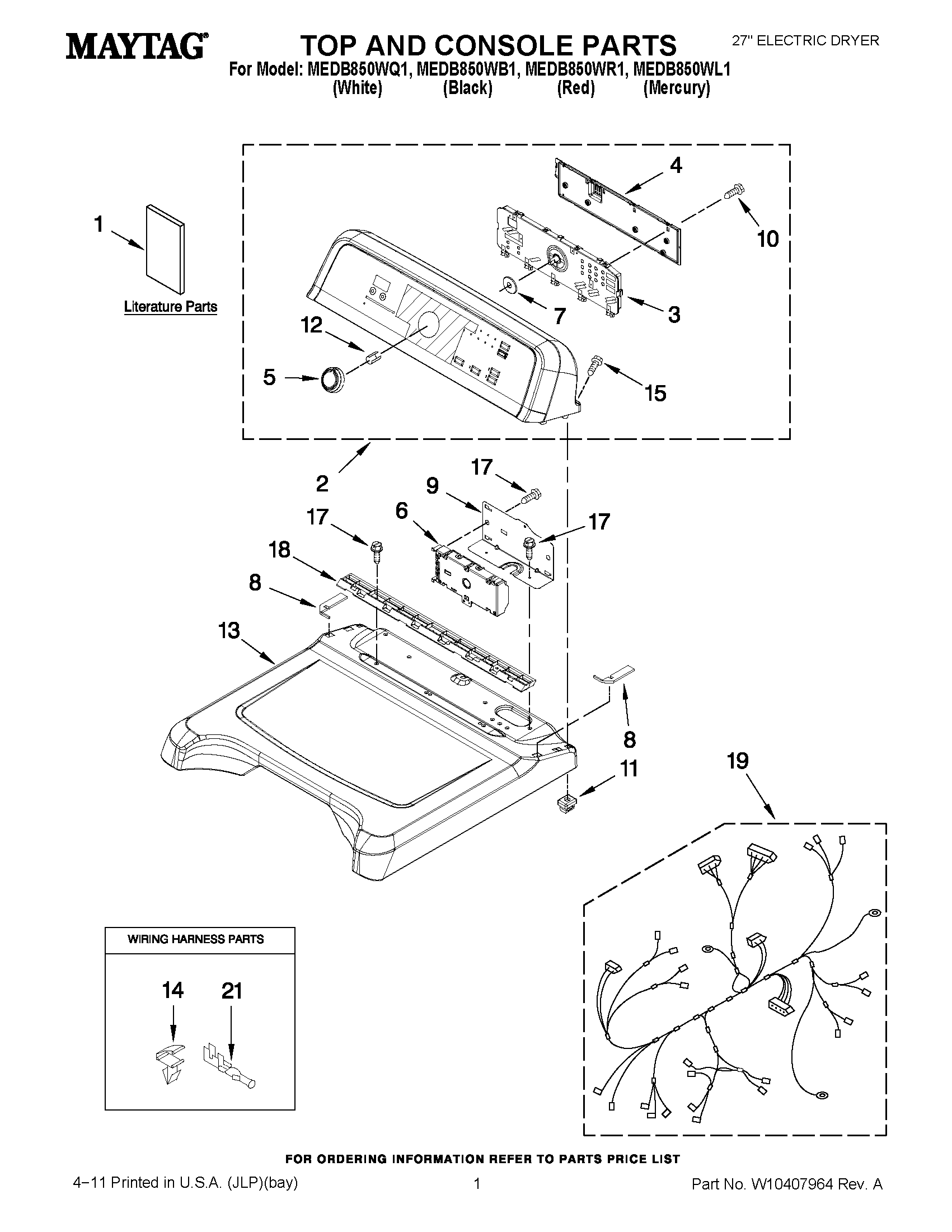

MEDB850WL1 01 – TOP AND CONSOLE PARTS

MEDB850WL1 01 – TOP AND CONSOLE PARTS

Written by

in

MEDB850WL1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10388775
1	MAY W10260037
1	MAY W10156733
2	MAY W10252471
2	MAY W10252470
2	MAY W10252469
2	MAY W10252468
3	MAY W10336131
4	COVER, REAR
5	MAY W10051126
6	MAY W10111620
7	SEAL, UI
8	Foam-Top (Left-Side)
8	Foam-Top (Right-Side)
9	MAY 8563853
10	Screw, 6-19 x 3/64
11	SCREW, GROMMET
12	MAY W10153920
13	MAY W10283288
13	MAY W10223158
13	MAY W10283289
13	TOP (INCLUDES ITEM. 8 )
14	CLIP, HARNESS
15	Screw
17	Screw, 8-18 x 3/4
18	MAY W10110295
19	MAY W10319802
21	Terminal
