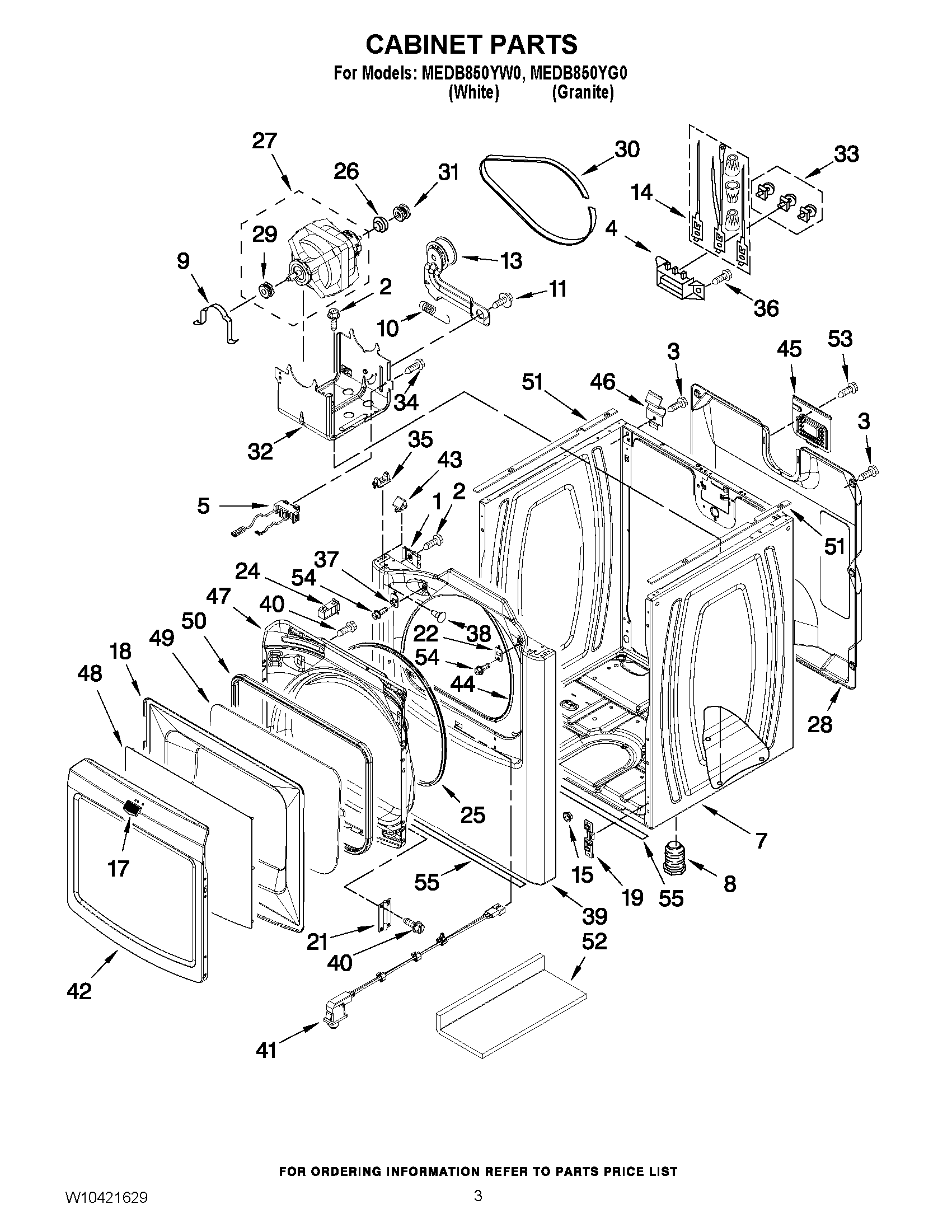

MEDB850YW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Clip, Ground (2)
2	SCREW
3	Screw
4	MAY 3397659
5	MAY W10314253
7	CABINET (INCLUDES ITEM 51 )
7	MAY W10338830
8	MAY W10363894
9	MAY 660658
10	MAY 3387374
13	MAY 8547160
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	Plug, Hole
17	MAY W10323735
18	BEZEL, DOOR
19	MAY 3394083
21	MAY W10304174
21	HINGE ASSEMBLY (MERCURY SILVER)
22	MAY W10111888
24	MAY W10111905
25	MAY W10221653
26	MAY 3393657
27	MAY W10136932
28	MAY W10140148
29	MAY W10139247
30	MAY W10136934
31	MAY W10136930
32	MAY W10308685
33	MAY 279393
34	SCREW
35	LOCATOR, SNAP-DOWN
36	SCREW, 10-16 X 1/2
37	Strike, Door
38	MAY W10144494
39	MAY W10252456
39	MAY W10223442
40	MAY 342055
41	MAY W10201785
42	MAY W10252478
42	DOOR, OUTER (GRANITE)
43	Lock-Top Front (2)
44	MAY W10044490
45	MAY W10110241
46	MAY 238088
47	DOOR, INNER (GRANITE)
47	Door, Inner
48	WINDOW, OUTER
49	MAY W10111857
50	MAY W10111859
51	SEAL, FOAM
52	MAY W10215725
53	MAY 8533974
54	MAY 3400805
55	MAY W10224768
