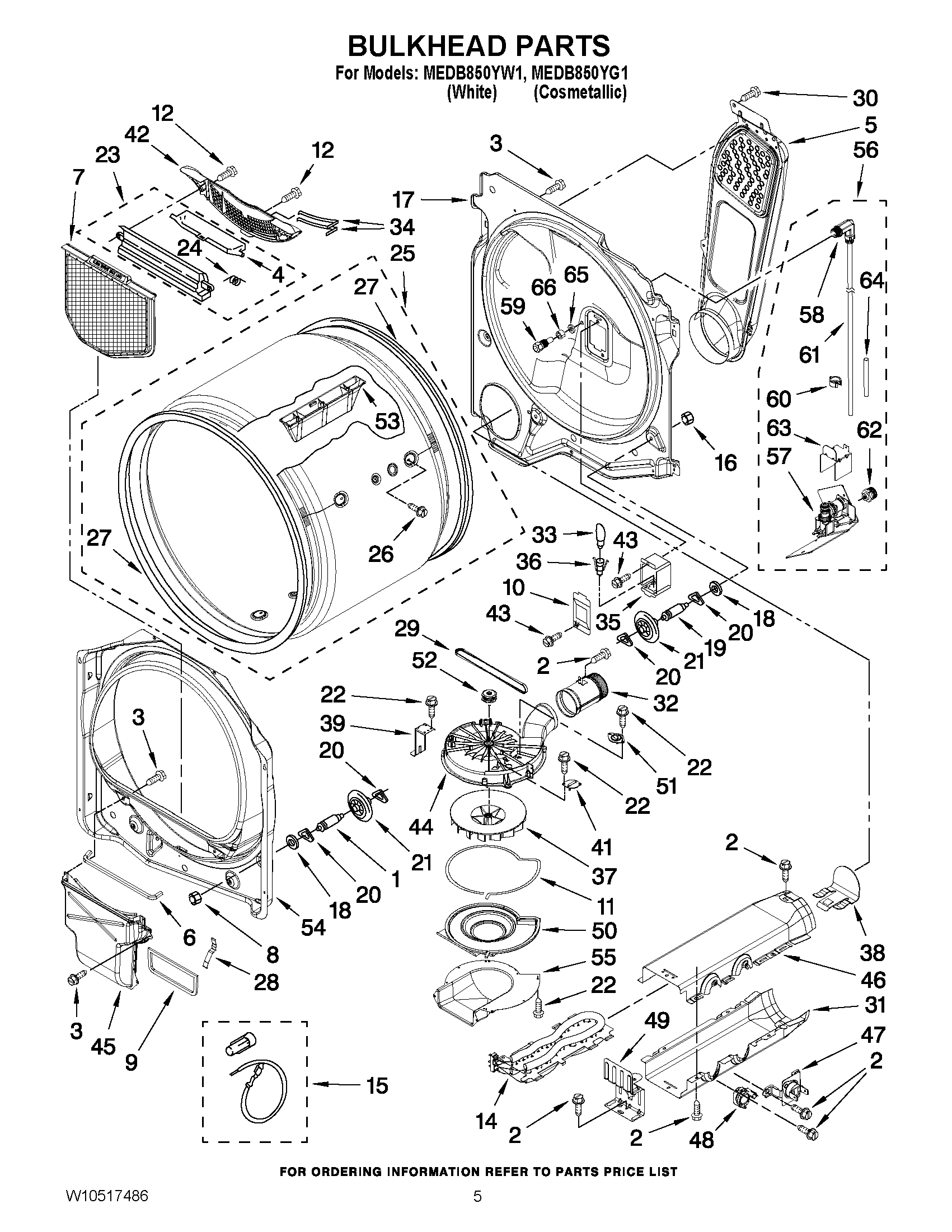

MEDB850YW1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	SCREW
4	MAY 3394984
5	MAY 8544730
6	MAY 697813
7	MAY W10049370
8	NUT, HEX
9	MAY 8544721
10	MAY 3402841
11	MAY 8573068
12	SCREW
14	MAY 8544771
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10139797
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 3350424
23	MAY 3394985
24	Spring, Lint Screen Door
25	MAY 8557269
26	MAY W10219342
27	MAY W10116344
28	MAY 8573070
29	MAY 8544742
30	Screw
31	MAY 8544770
32	MAY 8544755
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 3977373
36	MAY W10214261
37	MAY 8544737
38	MAY 8544776
39	BRACKET, HOUSING BLOWER
41	THERMAL FUSE (91C)
42	Grille, Outlet
43	SCREW
44	MAY W10256512
45	MAY 8544786
46	MAY 8544769
47	KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
48	MAY 8557403
49	MAY 8544729
50	BLOWER, COVER (INCLUDES, ITEM 11)
51	THERMISTOR
52	MAY 8544739
53	MAY 8563860
54	MAY 8557244
55	MAY 8544718
56	Valve & Hose (Complete)
57	MAY W10129424
58	ASSEMBLY, NOZZLE & HOSE (INCLUDES NOZZLE & SCREEN ASSEMBLY)
59	MAY W10277503
60	MAY W10044599
61	HOSE, NYLON (NOT SERVICABLE) SERVICE WITH No.56
62	MAY W10044605
63	MAY W10160575
64	MAY W10435653
65	MAY W10044579
66	Nut, Brass 9/16 – 24 x 1/2
