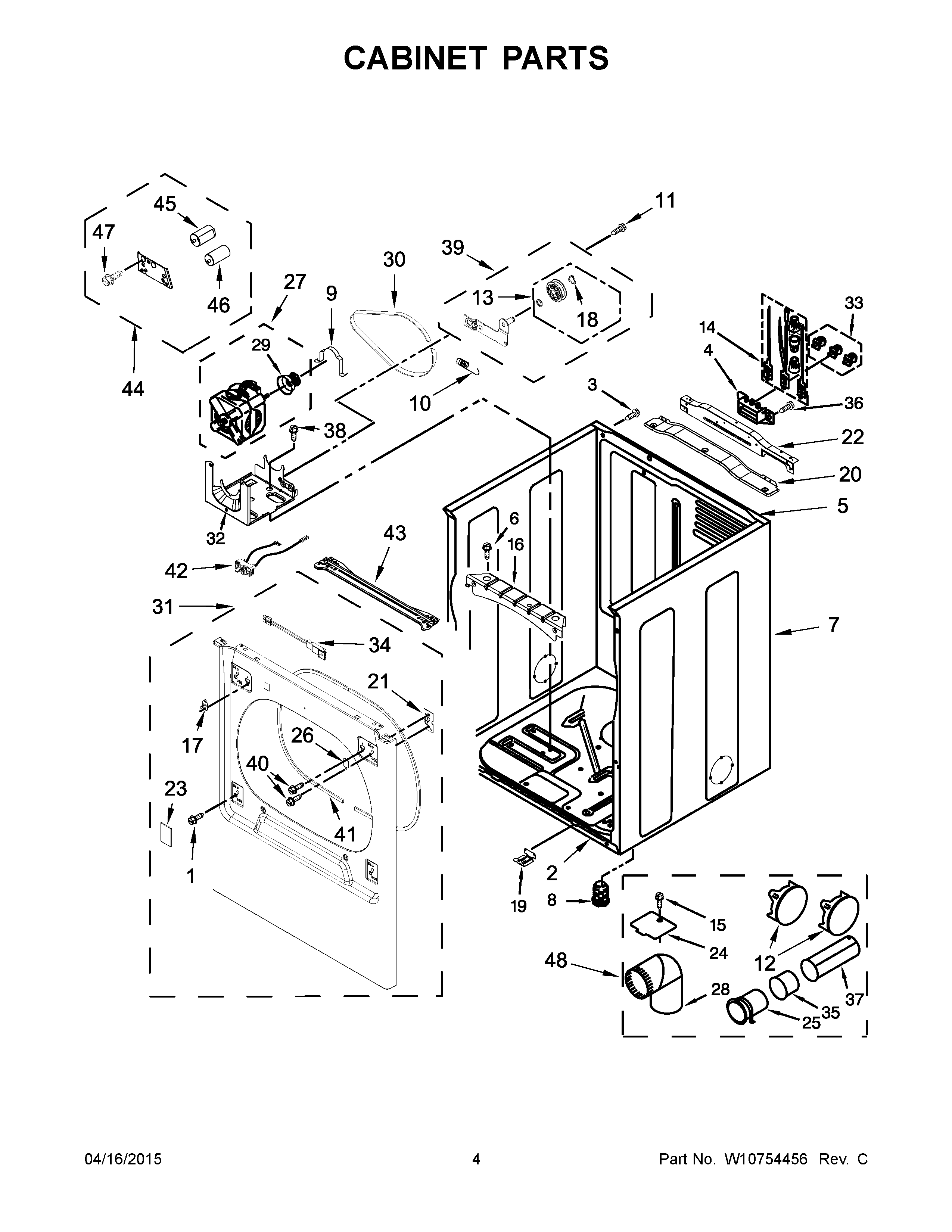

MEDB855DC0 03 – CABINET PARTSadmin2025-04-26T09:22:35+00:00MEDB855DC0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | SCREW |
| 2 | MAY W10613683 |
| 3 | MAY W10636208 |
| 4 | MAY 3397659 |
| 5 | MAY W10622361 |
| 6 | Screw |
| 7A | PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT)) |
| 7 | CABINET (WHITE (WITHOUT CUTOUT)) |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | MAY 49252 |
| 12A | MAY W10151499 |
| 13 | PULLEY, MOTOR |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | MAY W10567155 |
| 16 | MAY W10632348 |
| 17 | MAY W10775540 |
| 18 | WASHER, TRI RING |
| 19 | MAY W10632347 |
| 20A | BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW) |
| 20 | BULKHEAD BRACKET, REAR PANEL (WHITE) |
| 21 | MAY W10596959 |
| 22 | MAY W10622391 |
| 23 | PLUG, HINGE (WHITE) |
| 23A | PLUG, HINGE (CHROME SHADOW) |
| 24 | MAY 3394331 |
| 25 | PIPE, EXHAUST (MEDIUM) |
| 26 | MAY W10111888 |
| 27 | MAY W10687541 |
| 28 | MAY 49026 |
| 29 | MAY W10669447 |
| 30 | MAY W10610886 |
| 31A | MAY W10777208 |
| 31 | MAY W10777207 |
| 32 | MAY W10578053 |
| 33 | MAY 279393 |
| 34 | MAY W10459026 |
| 35 | MAY 8563750 |
| 36 | SCREW, 10-16 X 1/2 |
| 37 | PIPE, EXHAUST (LONG) |
| 38 | SCREW |
| 39 | MAY 3388674 |
| 40 | MAY 3400805 |
| 41 | MAY 3387242 |
| 42 | SWITCH, BROKEN BELT |
| 43 | MAY W10722502 |
| 44 | BRACKET ASSEMBLY |
| 45 | CAPACITOR, MOTOR RUN |
| 46 | CAPACITOR, MOTOR START |
| 47 | NUT |
| 48 | KIT, 4-WAY VENT |
