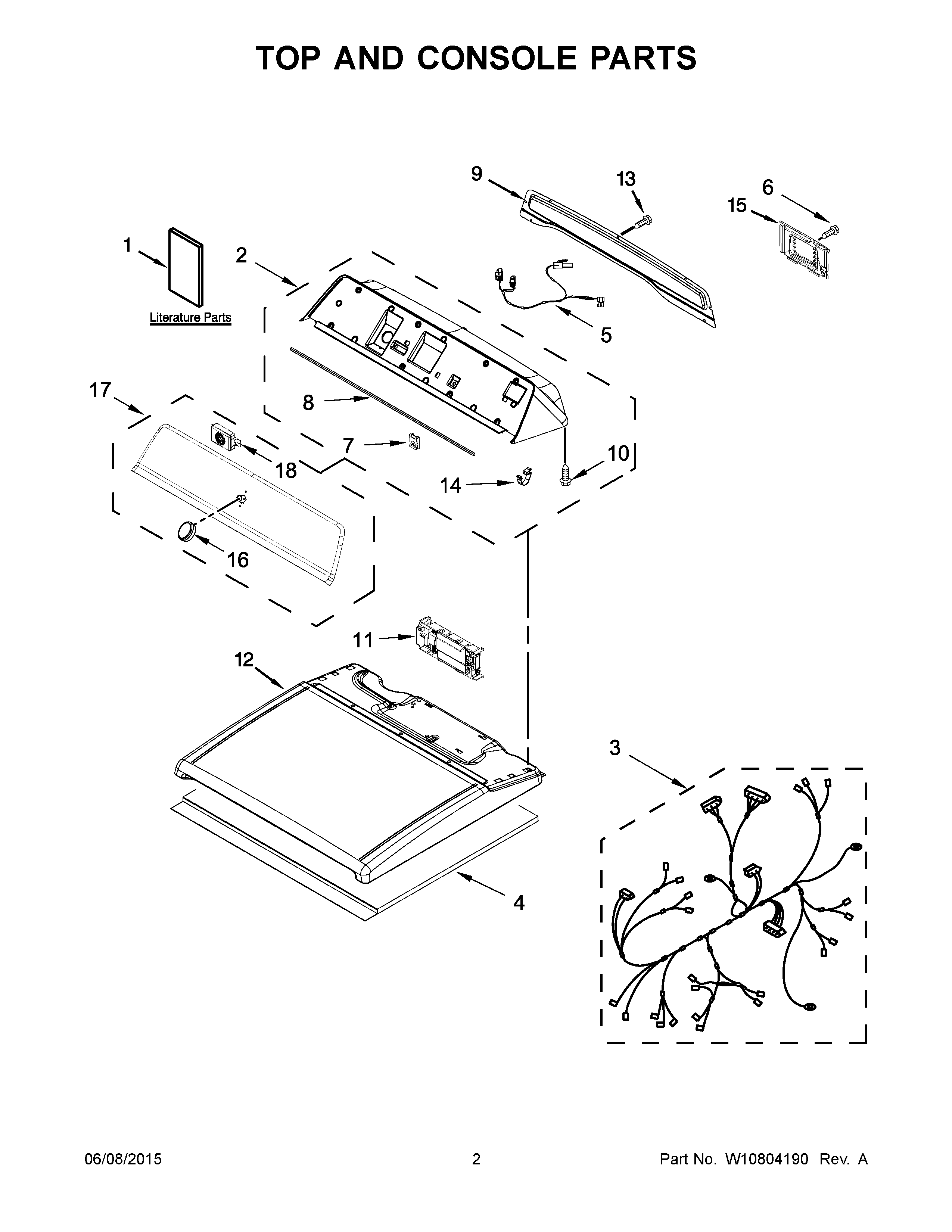

MEDB855DC1 02 – TOP AND CONSOLE PARTS

MEDB855DC1 02 – TOP AND CONSOLE PARTS

Written by

in

MEDB855DC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BMAY W10680150
1AMAY W10680141
1MAY W10725269
2AASSEMBLY, CONSOLE (CHROME SHADOW)
2ASSEMBLY, CONSOLE (WHITE)
3MAY W10706040
4MAY W10123956
5MAY W10788429
6MAY 489470
7NUT, "U"
8MAY W10726632
9MAY W10622402
10MAY W10219342
11CONTROL, ELECTRONIC
12MAY W10508981
12ATOP (CHROME SHADOW)
13SCREW
14MAY 8312709
15MAY W10316167
16ASSEMBLY, CONTROL KNOB (CHROME)
17MAY W10740703
18ASSEMBLY, SPEAKER
