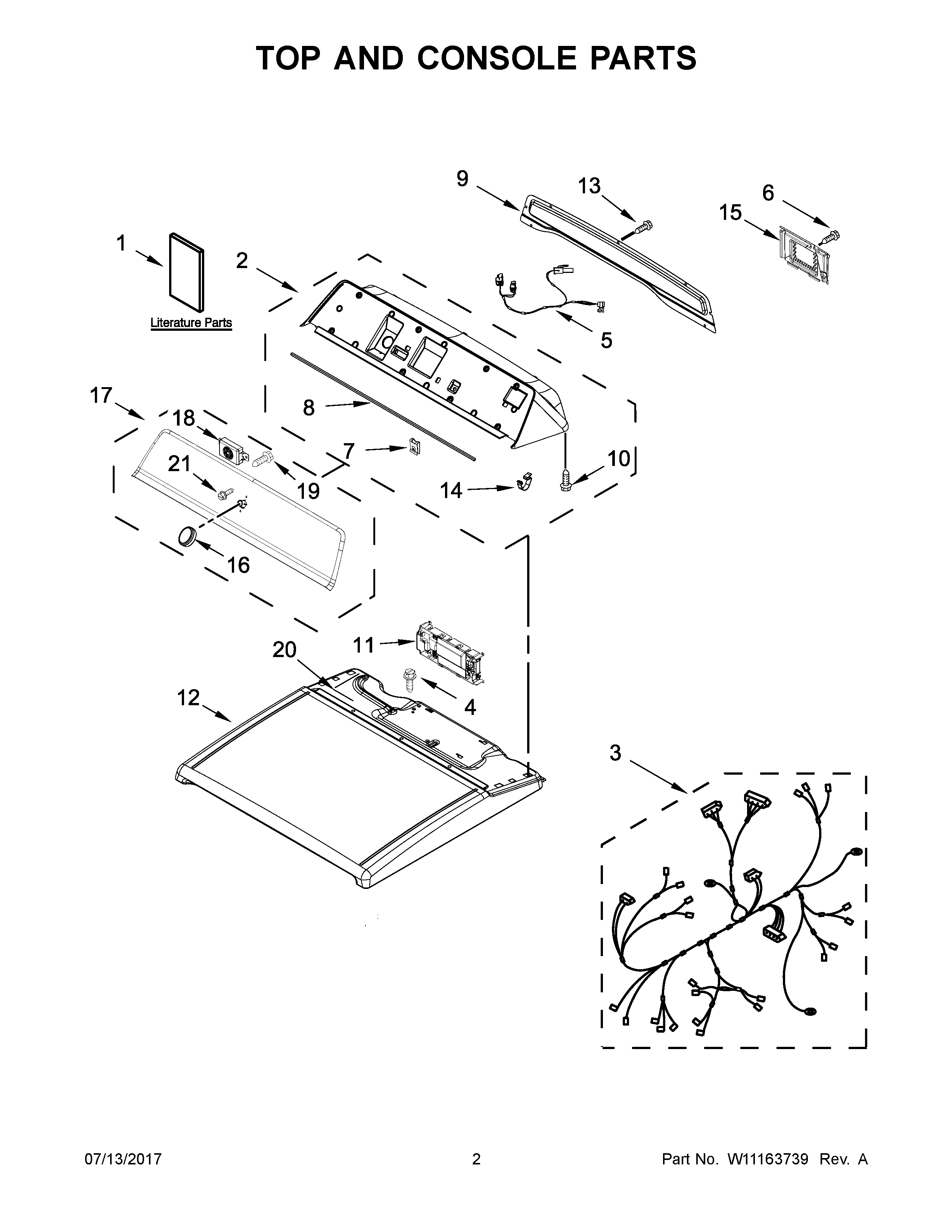

MEDB855DC4 02 – TOP AND CONSOLE PARTS

MEDB855DC4 02 – TOP AND CONSOLE PARTS

Written by

in

MEDB855DC4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1AUSE AND CARE GUIDE
1MAY W10725269
2AASSEMBLY, CONSOLE (CHROME SHADOW)
2ASSEMBLY, CONSOLE (WHITE)
3MAY W10901572
4MAY 8533974
5MAY W10788429
6SCREW
7NUT, "U"
8MAY W10726632
9MAY W10622402
10MAY W10219342
11CONTROL, ELECTRONIC
12MAY W10508981
12ATOP (CHROME SHADOW)
13SCREW
14MAY 8312709
15MAY W10316167
16ASSEMBLY, CONTROL KNOB (CHROME)
17FASCIA
18ASSEMBLY, SPEAKER
19MAY 489470
20MAY W10185554
21MAY 9740849
