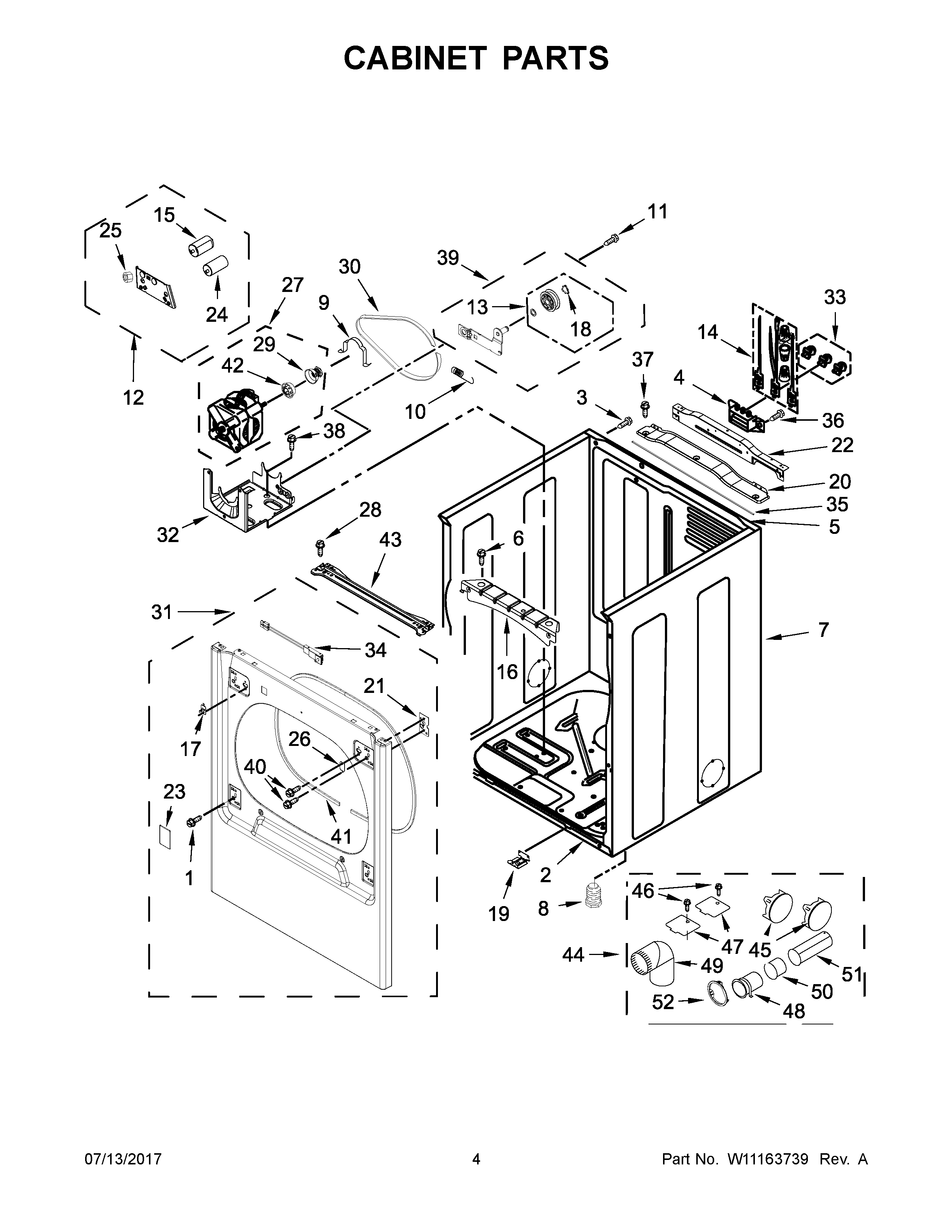

MEDB855DC4 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY W10613683
3	MAY W10636208
4	MAY 3397659
5	PANEL, REAR
6	Screw
7	CABINET (WHITE (WITHOUT CUTOUT))
7A	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	BRACKET ASSEMBLY
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	CAPACITOR, MOTOR RUN
16	MAY W10632348
17	MAY W10778071
18	WASHER, TRI RING
19	MAY W10632347
20	BULKHEAD BRACKET, REAR PANEL (WHITE)
20A	BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW)
21	MAY W10596959
22	MAY W10622391
23	PLUG, HINGE (WHITE)
23A	PLUG, HINGE (CHROME SHADOW)
24	CAPACITOR, MOTOR START
25	NUT
26	MAY W10111888
27	MOTOR ASSEMBLY
28	SCREW
29	PULLEY, MOTOR
30	MAY W10610886
31A	PANEL, FRONT (CHROME SHADOW)
31	MAY W10861063
32	MAY W10578053
33	MAY 279393
34	MAY W10459026
35	MAY W10316616
36	SCREW, 10-16 X 1/2
37	SCREW
38	SCREW
39	MAY 3388674
40	MAY 3400805
41	MAY 3387242
42	MAY 3393657
43	MAY W10722502
44	MAY W10704365
45	PLUG, MULTIVENT (MIDNIGHT GREY)
46	MAY W10567155
47	MAY W10354249
48	MAY W10587890
49	MAY W10416072
50	PIPE, EXHAUST (SHORT)
51	PIPE, EXHAUST (LONG)
52	MAY W10344699
