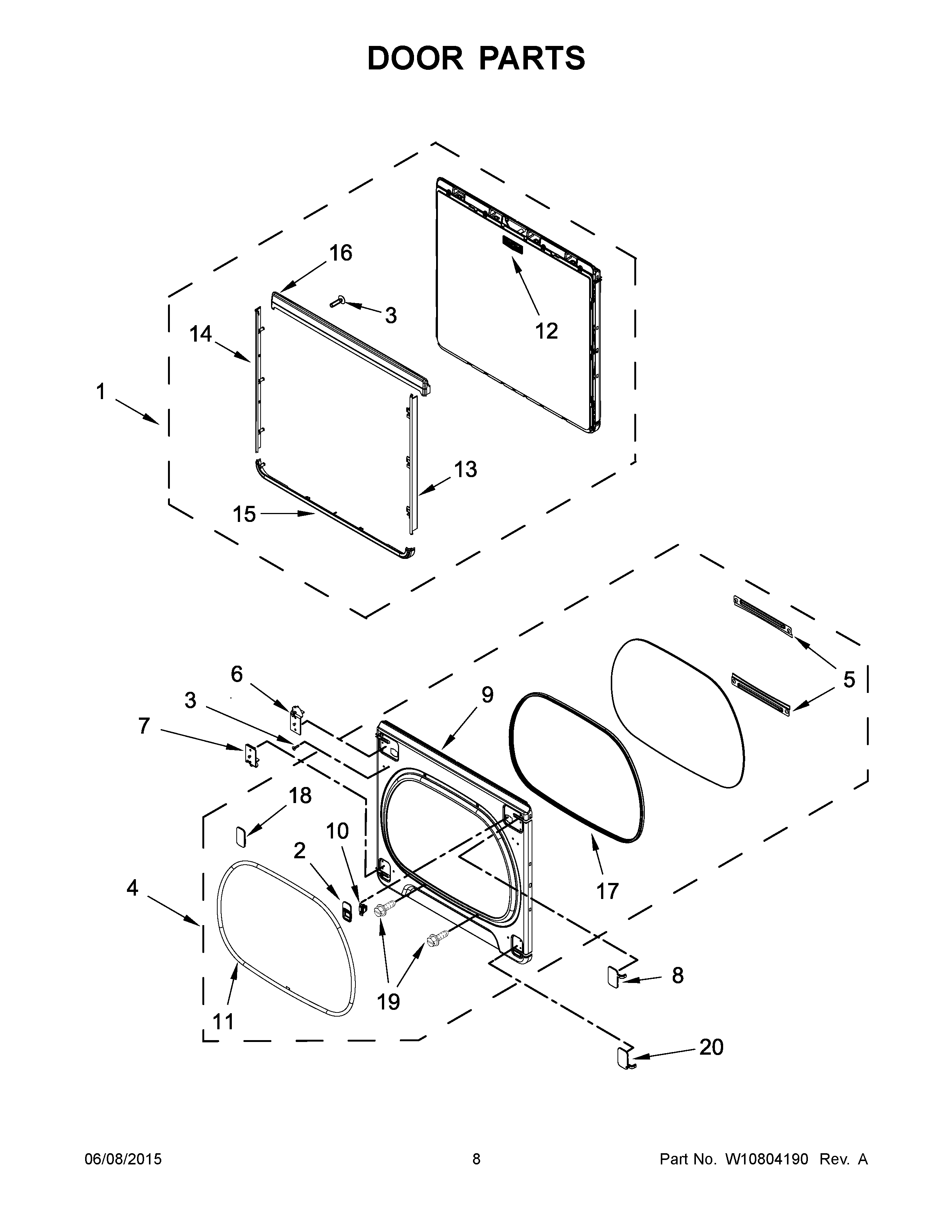

MEDB855DW1 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, OUTER DOOR (CHROME SHADOW)
2A	BEZEL, DOOR CATCH (CHROME SHADOW)
2	MAY W10631401
3	Screw
4A	ASSEMBLY, INNER DOOR (CHROME SHADOW)
4	MAY W10614997
5	MAY W10621182
6	MAY W10767920
7	MAY W10767921
8	MAY W10631395
8A	HINGE COVER, TOP (CHROME SHADOW)
9A	MAY W10614999
9	MAY W10614998
10	MAY W10610880
11	MAY W10763835
12	BADGE
13	MAY W10631398
14	MAY W10631399
15	MAY W10631400
16	MAY W10608739
17	MAY W10726214
18A	COVER, DOOR CATCH (CHROME SHADOW)
18	COVER, DOOR CATCH (WHITE)
19	MAY 342055
20A	HINGE COVER, BOTTOM (CHROME SHADOW)
20	MAY W10631396
