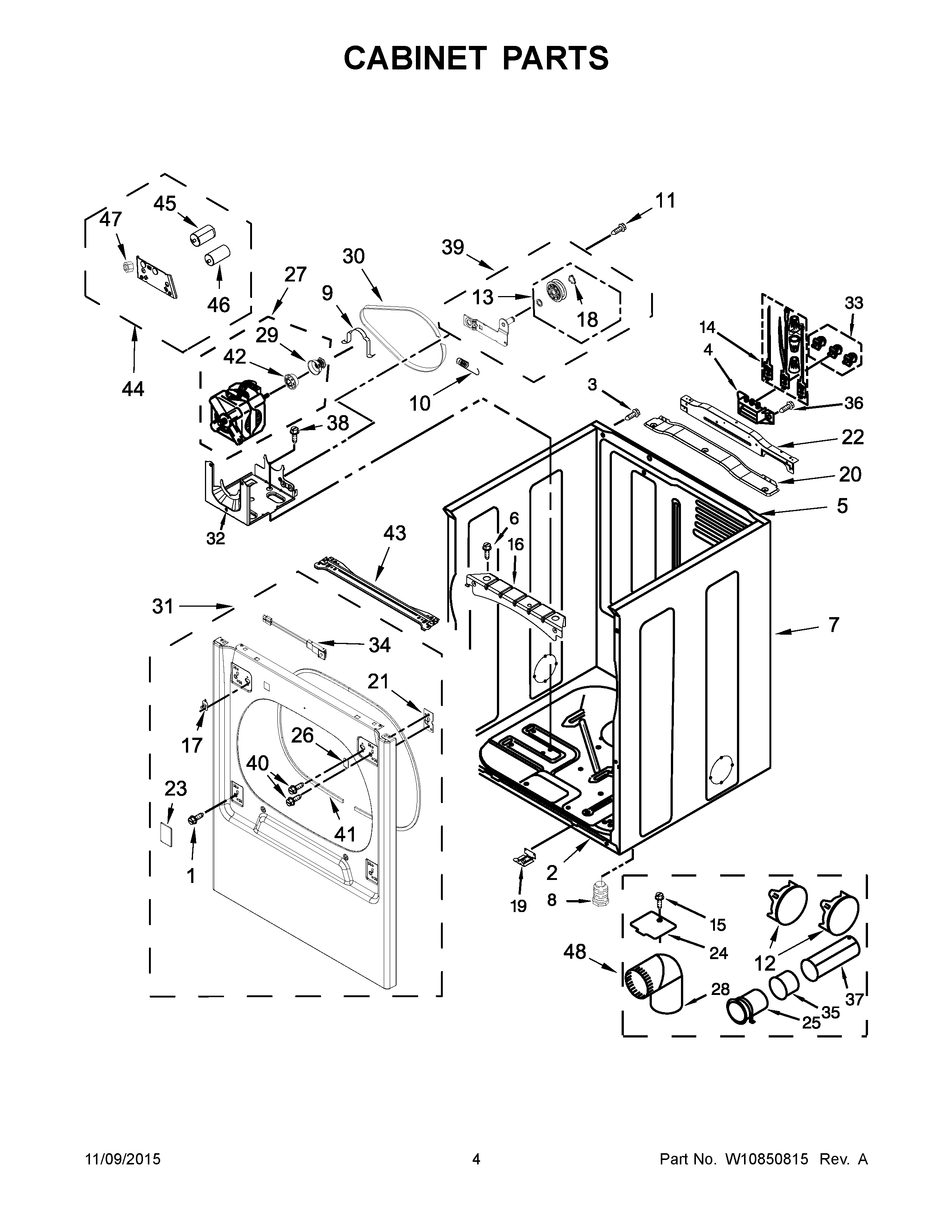

MEDB855DW2 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY W10613683
3	MAY W10636208
4	MAY 3397659
5	MAY W10824895
6	Screw
7	CABINET (WHITE (WITHOUT CUTOUT))
7A	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12A	MAY W10151499
12	MAY 49252
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10567155
16	MAY W10632348
17	MAY W10775540
18	WASHER, TRI RING
19	MAY W10632347
20A	BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW)
20	BULKHEAD BRACKET, REAR PANEL (WHITE)
21	MAY W10596959
22	MAY W10622391
23	PLUG, HINGE (WHITE)
23A	PLUG, HINGE (CHROME SHADOW)
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	MAY W10111888
27	MOTOR ASSEMBLY
28	MAY 49026
29	PULLEY, MOTOR
30	MAY W10610886
31	MAY W10777207
31A	MAY W10777208
32	MAY W10578053
33	MAY 279393
34	MAY W10459026
35	MAY 8563750
36	SCREW, 10-16 X 1/2
37	PIPE, EXHAUST (LONG)
38	SCREW
39	MAY 3388674
40	MAY 3400805
41	MAY 3387242
42	MAY 3393657
43	MAY W10722502
44	BRACKET ASSEMBLY
45	CAPACITOR, MOTOR RUN
46	CAPACITOR, MOTOR START
47	NUT
48	KIT, 4-WAY VENT
