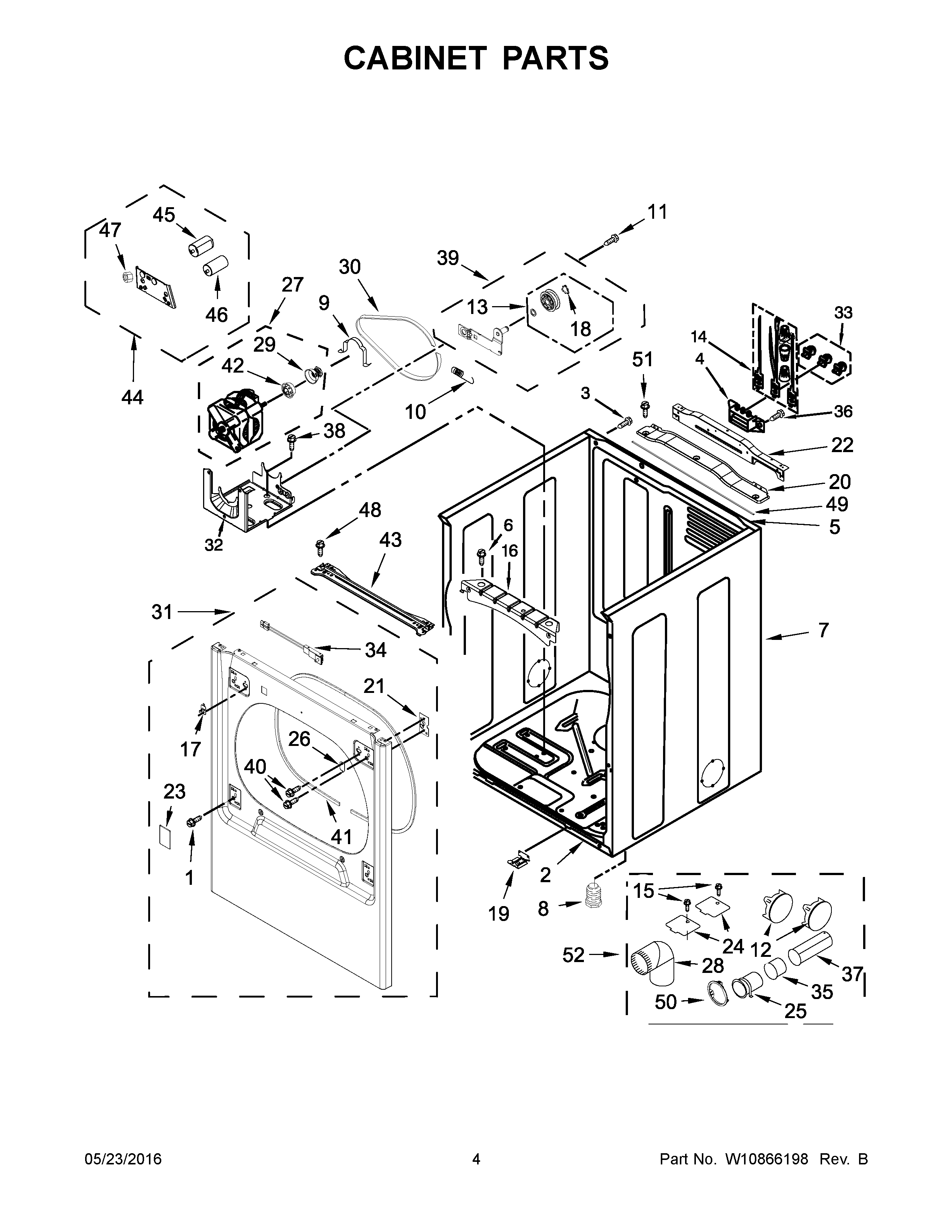

MEDB855DW3 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY W10613683
3	MAY W10636208
4	MAY 3397659
5	MAY W10824895
6	Screw
7	CABINET (WHITE (WITHOUT CUTOUT))
7A	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10567155
16	MAY W10632348
17	MAY W10778071
18	WASHER, TRI RING
19	MAY W10632347
20	BULKHEAD BRACKET, REAR PANEL (WHITE)
20A	BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW)
21	MAY W10596959
22	MAY W10622391
23	PLUG, HINGE (WHITE)
23A	PLUG, HINGE (CHROME SHADOW)
24	MAY W10354249
25	MAY W10587890
26	MAY W10111888
27	MOTOR ASSEMBLY
28	MAY W10416072
29	PULLEY, MOTOR
30	MAY W10610886
31	MAY W10861063
31A	PANEL, FRONT (CHROME SHADOW)
32	MAY W10578053
33	MAY 279393
34	MAY W10459026
35	PIPE, EXHAUST (SHORT)
36	SCREW, 10-16 X 1/2
37	PIPE, EXHAUST (LONG)
38	SCREW
39	MAY 3388674
40	MAY 3400805
41	MAY 3387242
42	MAY 3393657
43	MAY W10722502
44	BRACKET ASSEMBLY
45	CAPACITOR, MOTOR RUN
46	CAPACITOR, MOTOR START
47	NUT
48	SCREW
49	MAY W10316616
50	MAY W10344699
51	SCREW
52	MAY W10704365
