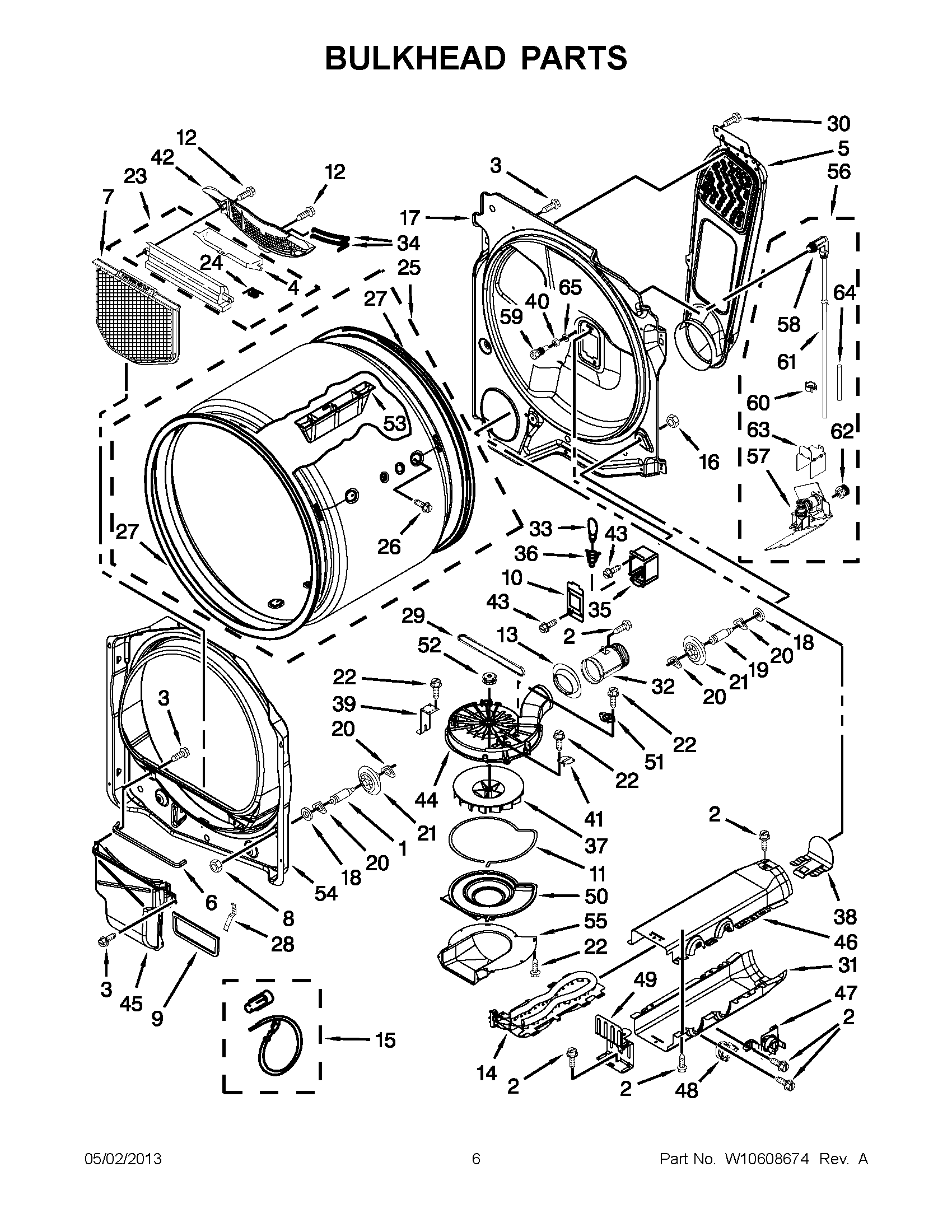

MEDB950YG2 03 – BULKHEAD PARTSadmin2025-04-26T09:22:24+00:00MEDB950YG2 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | SCREW,8-18 X 3/8 |
| 3 | SCREW |
| 4 | MAY 3394984 |
| 5 | MAY 8544730 |
| 6 | MAY 697813 |
| 7 | LINT SCREEN (WHITE) |
| 8 | NUT, HEX |
| 9 | MAY 8544721 |
| 10 | MAY 3402841 |
| 11 | MAY 8573068 |
| 12 | SCREW |
| 13 | MAY W10475158 |
| 14 | MAY 8544771 |
| 15 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY W10139797 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | MAY 3350424 |
| 23 | MAY 3394985 |
| 24 | Spring, Lint Screen Door |
| 25 | DRUM ASSEMBLY |
| 26 | MAY W10219342 |
| 27 | MAY W10521119 |
| 28 | MAY 8573070 |
| 29 | MAY 8544742 |
| 30 | Screw |
| 31 | MAY 8544770 |
| 32 | MAY W10533417 |
| 33 | MAY 3406124 |
| 34 | SENSOR, ELECTRODE |
| 35 | MAY 3977373 |
| 36 | MAY W10214261 |
| 37 | MAY 8544737 |
| 38 | MAY 8544776 |
| 39 | BRACKET, HOUSING BLOWER |
| 40 | Nut, Brass 9/16 - 24 x 1/2 |
| 41 | THERMAL FUSE (91C) |
| 42 | Grille, Outlet |
| 43 | SCREW |
| 44 | MAY W10256512 |
| 45 | MAY 8544786 |
| 46 | MAY 8544769 |
| 47 | MAY 8318314 |
| 48 | MAY 8557403 |
| 49 | MAY 8544729 |
| 50 | BLOWER, COVER (INCLUDES, ITEM 11) |
| 51 | THERMISTOR |
| 52 | MAY 8544739 |
| 53 | MAY 8563860 |
| 54 | MAY 8557244 |
| 55 | MAY 8544718 |
| 56 | Valve & Hose (Complete) |
| 57 | MAY W10129424 |
| 58 | ASSEMBLY, NOZZLE & HOSE (INCLUDES NOZZLE & SCREEN ASSEMBLY) |
| 59 | MAY W10277503 |
| 60 | MAY W10044599 |
| 61 | LINER (NOT A SERVICEABLE PART) |
| 62 | MAY W10044605 |
| 63 | MAY W10160575 |
| 64 | MAY W10435653 |
| 65 | MAY W10044579 |
