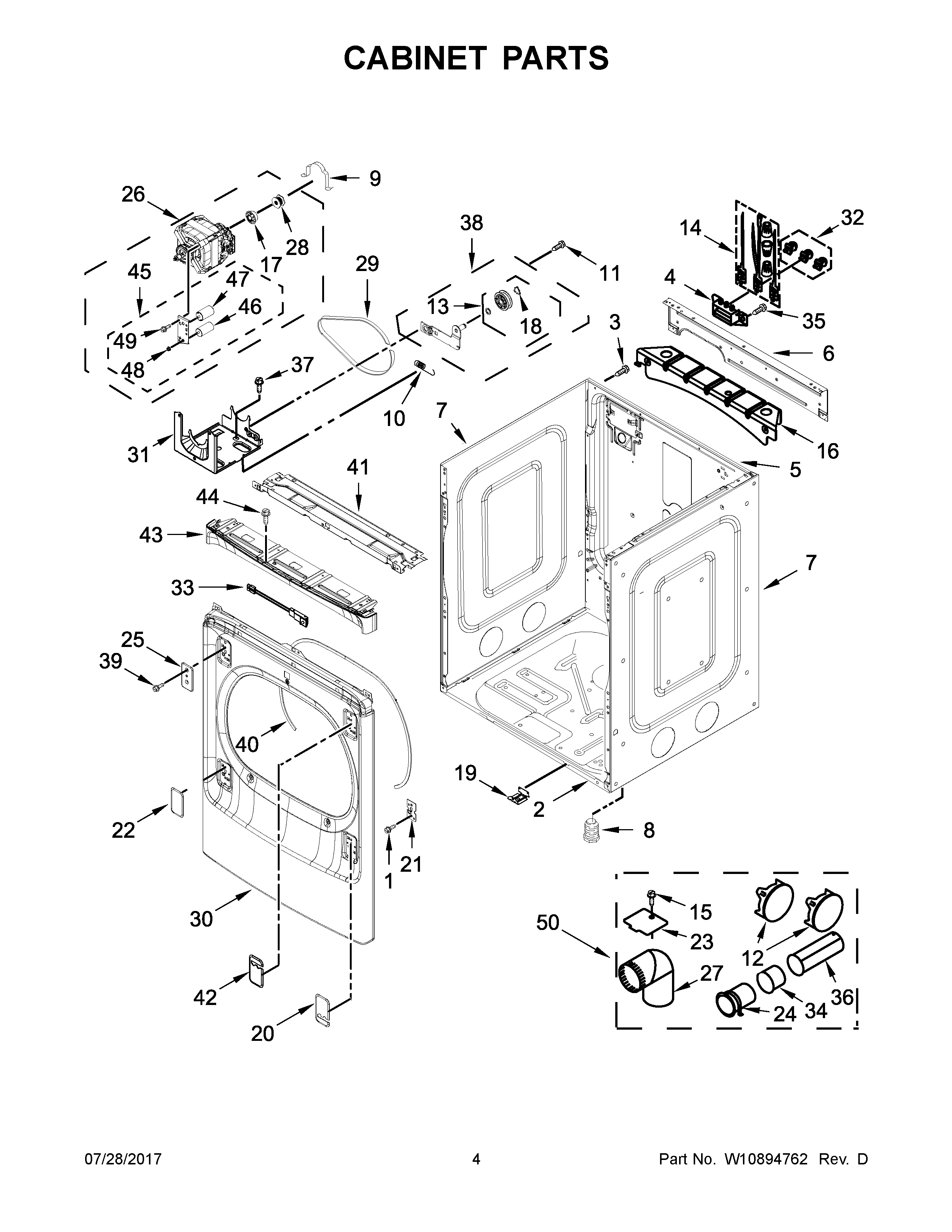

MEDB955FC0 03 – CABINET PARTS

MEDB955FC0 03 – CABINET PARTS

Written by

in

MEDB955FC0 03 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1SCREW
2MAY W10613683
3SCREW
4MAY 3397659
5PANEL, REAR
6MAY W10622396
7MAY W10663407
7AMAY W10681832
8MAY 3392100
9CLAMP, MOTOR MOUNT
10MAY W10446781
11SCREW
12MAY 49252
12AMAY W10151499
13MAY W10468057
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15MAY W10567155
16MAY W10632348
17MAY 3393657
18WASHER, TRI RING
19MAY W10632347
20MAY W10627438
20AMAY W10627439
21MAY W10596959
22MAY W10627437
22AMAY W10627445
23MAY 3394331
24PIPE, EXHAUST (MEDIUM)
25MAY W10857673
25AMAY W10857675
26MOTOR ASSEMBLY
27MAY 49026
28PULLEY, MOTOR
29MAY W10597350
30AMAY W10627426
30MAY W10627425
31MAY W10578053
32MAY 279393
33MAY W10761357
34MAY 8563750
35SCREW
36PIPE, EXHAUST (LONG)
37SCREW
38ASSEMBLY, IDLER
39SCREW
40MAY 3387242
41MAY W10627432
42AMAY W10627444
42MAY W10627436
43AMAY W10756880
43MAY W10756879
44MAY 8534022
45BRACKET ASSEMBLY
46CAPACITOR, MOTOR RUN
47CAPACITOR, MOTOR START
48NUT
49SCREW
50MAY W10858320
