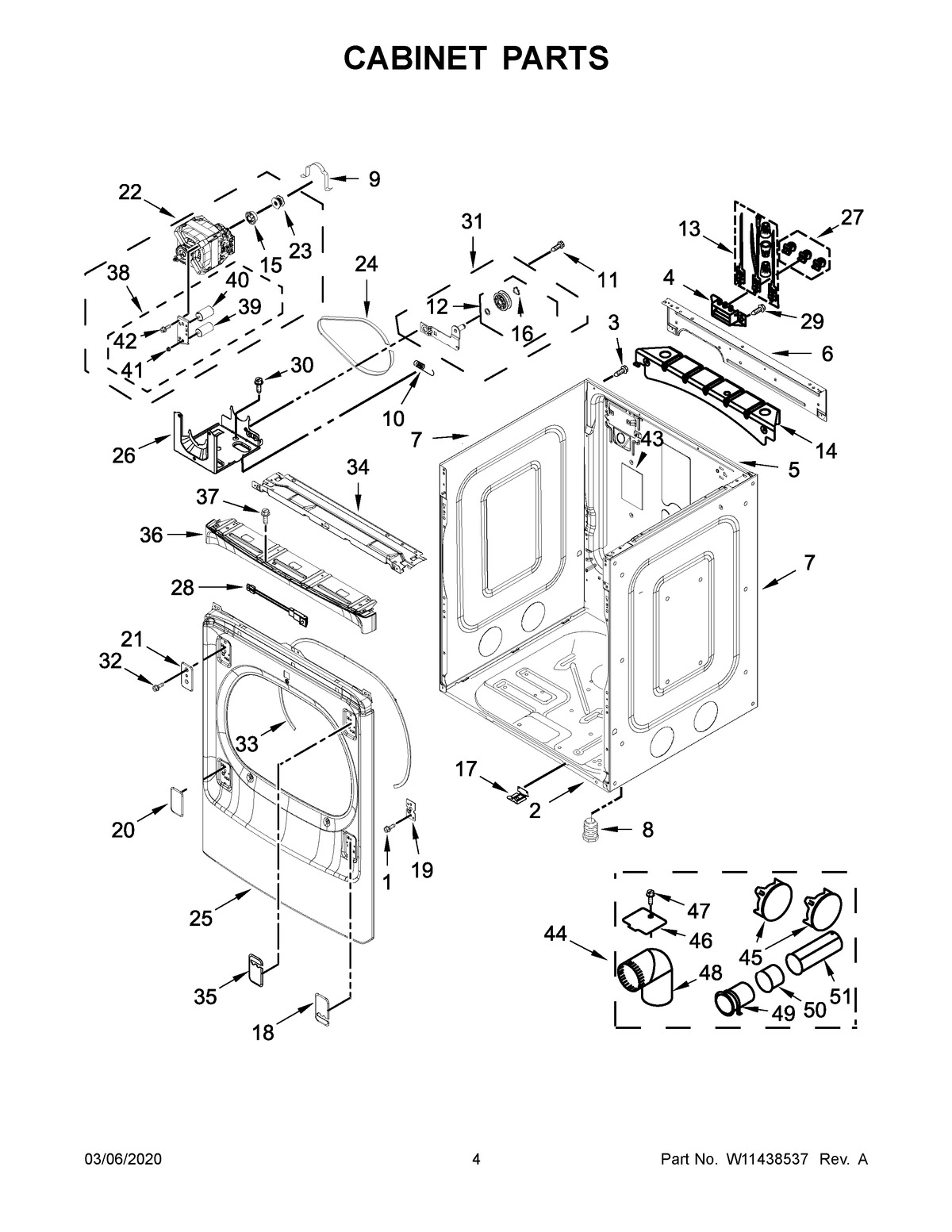

MEDB955FC2 03 – CABINET PARTSadmin2025-04-26T09:22:56+00:00MEDB955FC2 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | SCREW |
| 2 | MAY W10613683 |
| 3 | SCREW |
| 4 | MAY 3397659 |
| 5 | PANEL, REAR |
| 6 | MAY W10622396 |
| 7A | MAY W10681832 |
| 7 | MAY W10663407 |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | MAY W10468057 |
| 13 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 14 | MAY W10632348 |
| 15 | MAY 3393657 |
| 16 | WASHER, TRI RING |
| 17 | MAY W10632347 |
| 18 | MAY W10627438 |
| 18A | MAY W10627439 |
| 19 | MAY W10596959 |
| 20 | MAY W10627437 |
| 20A | MAY W10627445 |
| 21A | MAY W10857675 |
| 21 | MAY W10857673 |
| 22 | MOTOR ASSEMBLY |
| 23 | PULLEY, MOTOR |
| 24 | MAY W10597350 |
| 25 | MAY W10627425 |
| 25A | MAY W10627426 |
| 26 | MAY W10578053 |
| 27 | MAY 279393 |
| 28 | MAY W10761357 |
| 29 | SCREW, 10-16 X 1/2 |
| 30 | SCREW |
| 31 | ASSEMBLY, IDLER |
| 32 | SCREW |
| 33 | MAY 3387242 |
| 34 | MAY W10627432 |
| 35A | MAY W10627444 |
| 35 | MAY W10627436 |
| 36A | MAY W10756880 |
| 36 | MAY W10756879 |
| 37 | MAY 8534022 |
| 38 | BRACKET ASSEMBLY |
| 39 | CAPACITOR, MOTOR RUN |
| 40 | CAPACITOR, MOTOR START |
| 41 | NUT |
| 42 | SCREW |
| 43 | MAY W10504381 |
| 44 | MAY W10858320 |
| 45A | MAY W10151499 |
| 45 | MAY 49252 |
| 46 | MAY 3394331 |
| 47 | MAY W10567155 |
| 48 | MAY 49026 |
| 49 | PIPE, EXHAUST (MEDIUM) |
| 50 | MAY 8563750 |
| 51 | PIPE, EXHAUST (LONG) |
